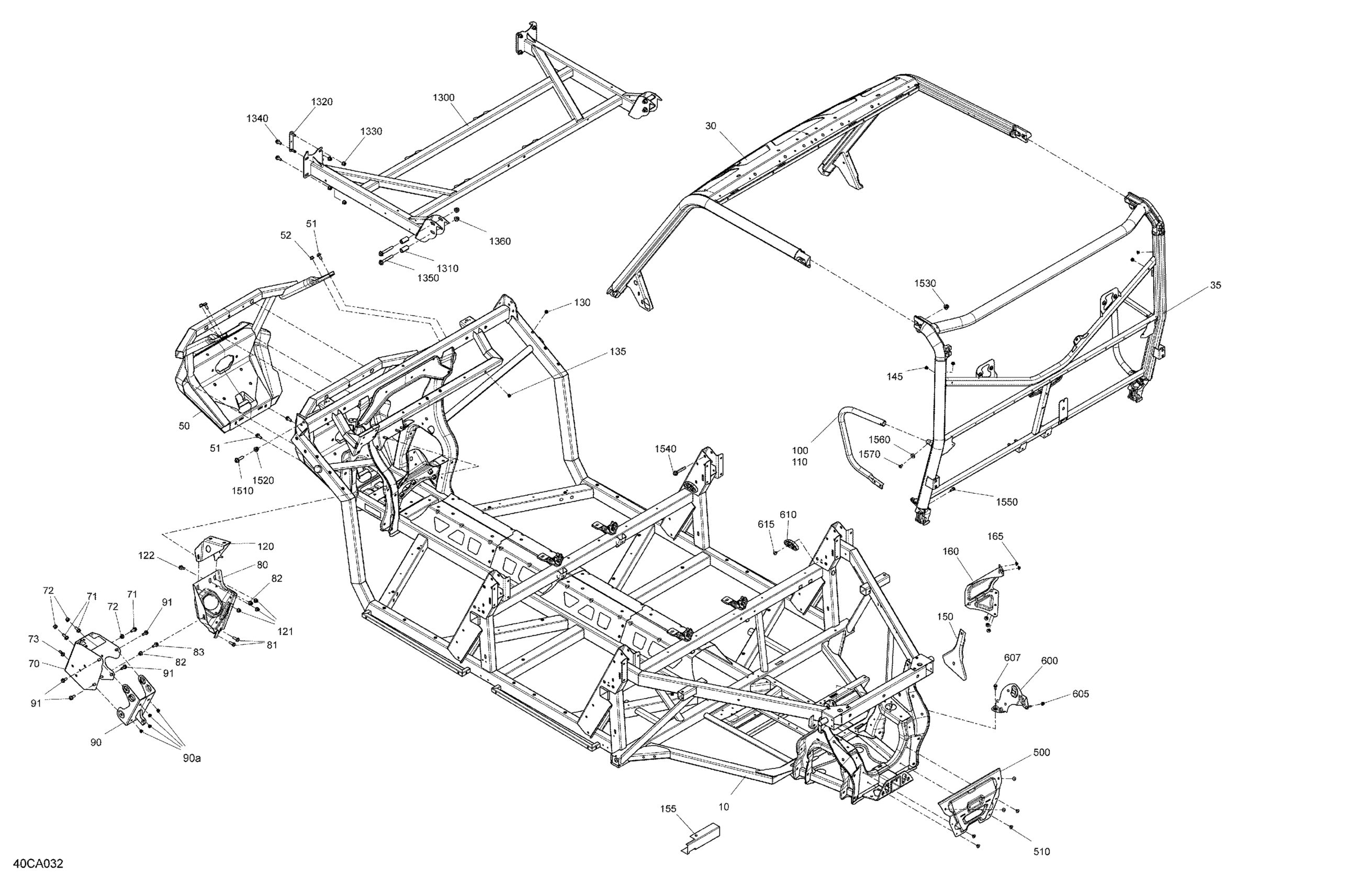

Can-Am Traxter PRO HD10 - DPS - CE, 2021 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Kit

715009077

$3,159.99

30

Front Cage Profile Ass'y

715006528

$649.99

35

Deep Black, RH Cage

705209718

Unavailable

50

Deep Black, Front Bumper

705207588

Unavailable

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

52

Hex. Elastic Flange Nut M8

233281416

Unavailable

70

Module Support

705209388

Unavailable

71

Hex. Flange Screw M8 X 20

207682044

Unavailable

72

Hex. Elastic Flange Nut M8

233281416

Unavailable

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

80

Power Steering Support

705208741

Unavailable

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

82

Hex. Elastic Flange Nut M8

233281416

Unavailable

83

Hex. Flange Screw M8 X 20

207682044

Unavailable

90

Steering Column Support | Includes 90 to 90d

705209190

Unavailable

90a

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

100

Deep Black, LH Protector Tube

705204594

Unavailable

110

Deep Black, RH Protector Tube

705204592

Unavailable

120

Support

705208742

Unavailable

121

Hex. Elastic Flange Nut M8

233281416

Unavailable

122

Hex. Flange Screw M8 X 20

207682044

Unavailable

130

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

135

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

145

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

150

Heat Shield

705014849

$2.75

155

Heat Shield

705015496

$2.75

160

Heat Shield

707002709

Unavailable

165

Pop Rivet 3/16"

293150103

Unavailable

500

Rear Chassis Reinforcement

705207753

Unavailable

510

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

600

Voltage Regulator Support

710007522

Unavailable

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

610

Spacer

705208203

Unavailable

615

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1300

Central Chassis Extension

705207484

Unavailable

1310

Spacer

705207818

Unavailable

1320

Support

705208025

Unavailable

1330

Hex. Elastic Flange Nut M8

233281416

Unavailable

1340

Hex. Flange Screw M8 X 20

207682046

Unavailable

1350

Hex. Flange Screw M10 X 70

207607046

Unavailable

1360

Hex. Flange Elastic Nut M10

233201436

Unavailable

1510

Hex. Flange Screw M10 X 35

250000855

$1.46

1520

Hex. Flange Elastic Nut M10

233201436

Unavailable

1530

Flange Elastic Nut M10

233201466

Unavailable

1540

Hex. Flange Screw M10 X 6

207606046

Unavailable

1550

Hex. Flange Screw S.Grip M6 X 20

207562054

Unavailable

1560

Offset Washer

705202223

Unavailable

1570

Torx Truss M6X14

250000789

$4.41
