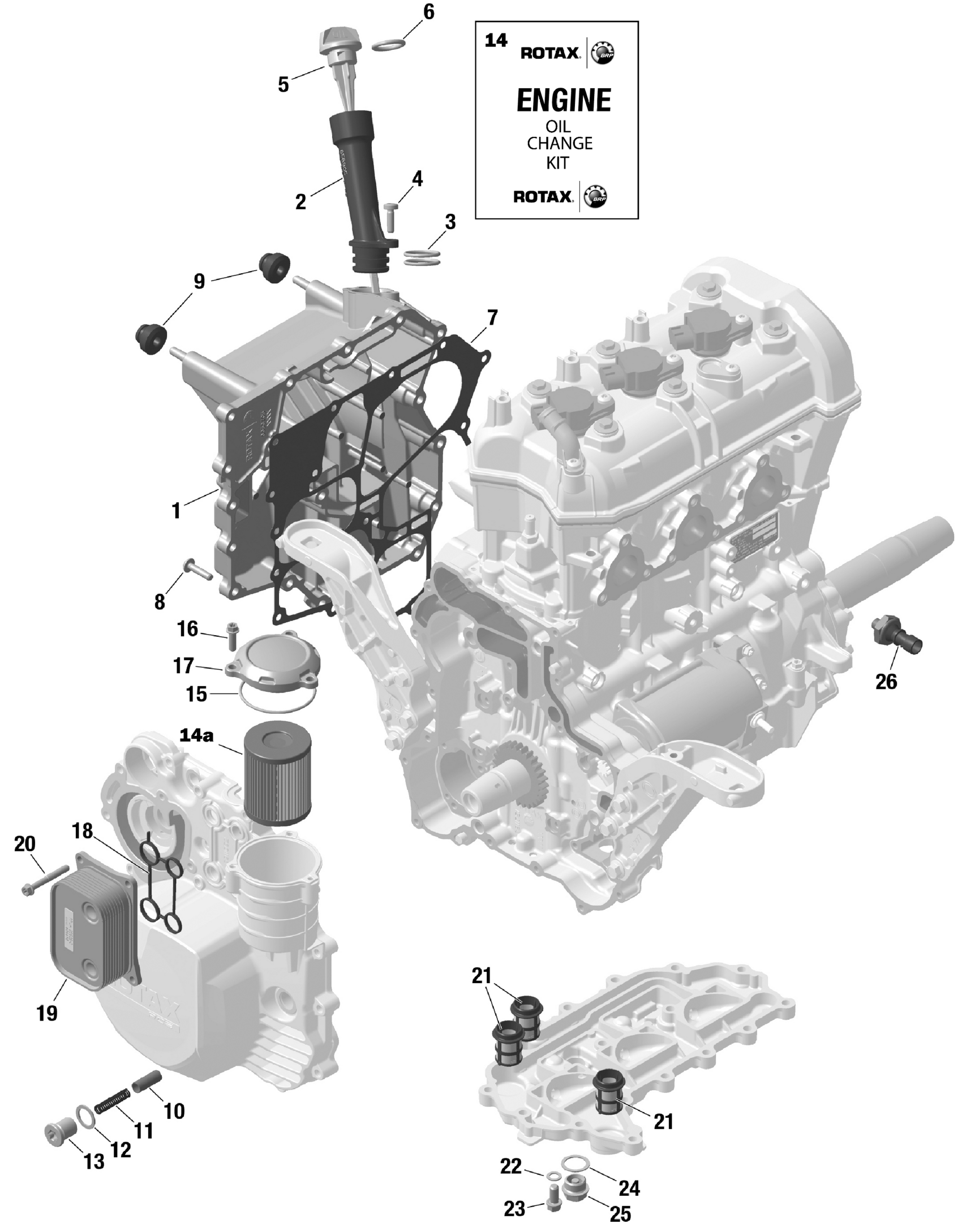

Can-Am RYKER 900 ACE, North America (F2PA), 2023 ROTAX - Engine Lubrication Diagram

#

Description
Price

1

Oil Sump Cover

420656708

Unavailable

2

Oil Filler Tube

420656905

Unavailable

3

O-Ring

420430440

Unavailable

4

Torx Flange Screw M6 X 20

420441386

Unavailable

5

Oil Level Tube

420856664

$18.00

6

O-Ring

420631640

Unavailable

7

Oil Sump Cover Gasket | Included in gasket kit

420431848

Unavailable

8

Torx Flange Screw M6 X 25

420841548

Unavailable

9

Rubber Grommet

420860150

Unavailable

10

Pressure Regulating Piston

420256591

Unavailable

11

Spring

420239445

Unavailable

12

Gasket Ring

420430624

Unavailable

13

Plug Screw

420441373

Unavailable

14

Ryker Oil Change Kit 5W40 900CC

9779299

$85.00

14a

Oil Filter

420956123

Unavailable

15

O-Ring

420230923

Unavailable

16

Torx Flange Screw M6 X 20

420440207

Unavailable

17

Oil Filter cover

420612135

Unavailable

18

Gasket

420431871

Unavailable

19

Oil Water Heat Exchanger

420656698

Unavailable

20

Torx Flange Screw M6 X 45

420440324

Unavailable

21

Oil Sieve

420656680

Unavailable

22

Sealing Ring

420950141

Unavailable

23

Torx Flange Screw M8 X 16

420440852

Unavailable

24

Crush Washer

420552280

Unavailable

25

Drain Plug M18 X 1.5

420840278

Unavailable

26

Oil Pressure Switch

420856536

Unavailable
