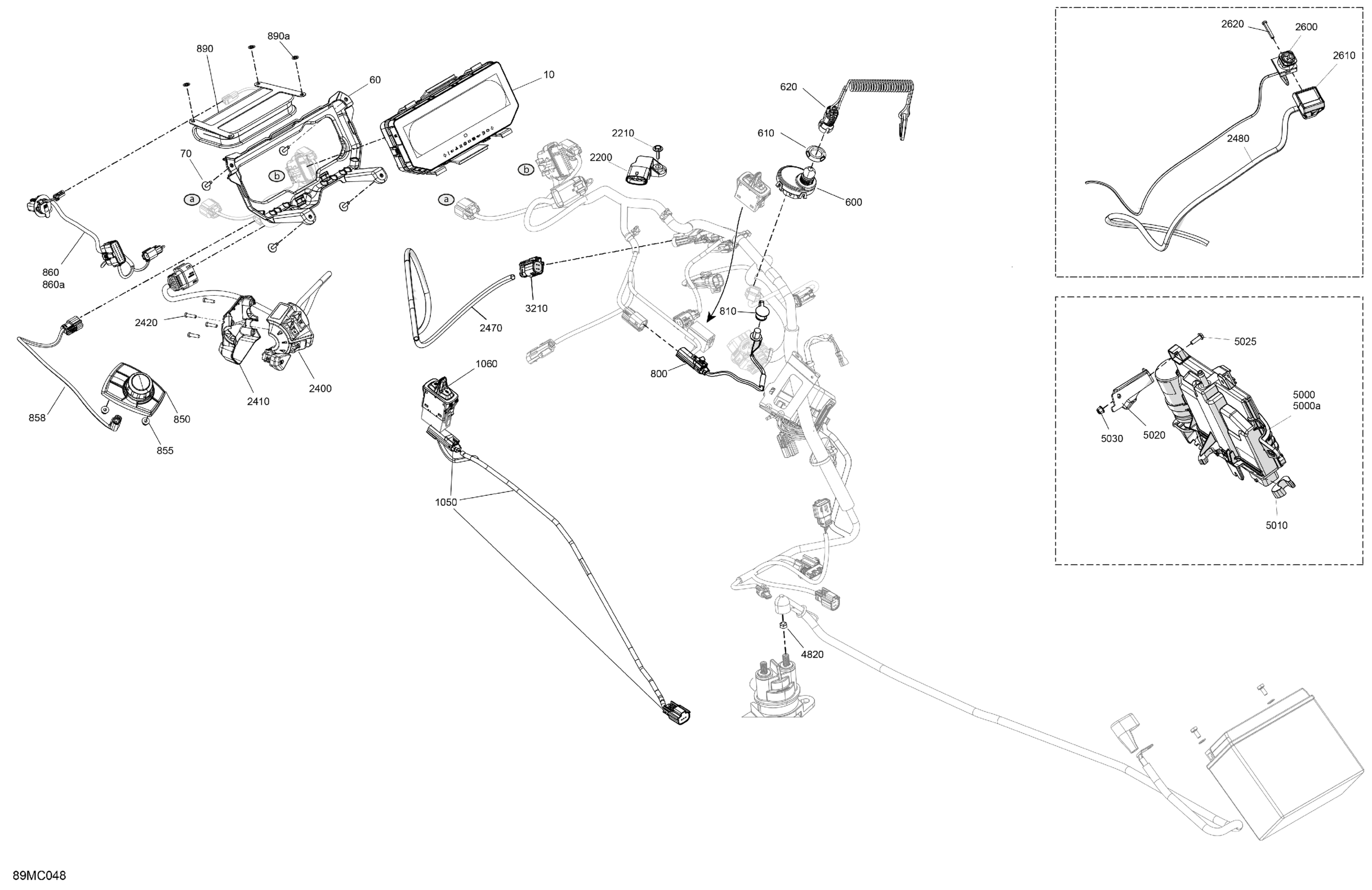

Ski-Doo RENEGADE 600R E-TEC - ENDURO - 2023 Electric - Upper Section Diagram

#

Description
Price

10

Full Size Color Multifunction Gauge

515179262

$1,023.85

60

Gauge Support

515178965

$5.01

70

Screw M4 X 16

250000725

$3.30

600

Terminal DESS One Wire

515179305

$69.37

610

Safety Nut (DESS Switch)

278002963

$3.12

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$62.66

800

Heated Visor Wiring Harness

515178645

$35.04

810

Cap

572103300

$9.36

850

Switch

515178325

$464.90

855

Elastic Flange Nut M6 X 1.0

233261416

$2.00

858

Adaptor Wiring Harness

515178958

$24.60

860

USB Wiring Harness | Includes 860 to 860a

515178758

$85.79

860a

USB Connector

710006405

$38.78

890

Protective Bag | Includes 890 to 890a

515179153

$105.94

890a

Push Nut

732610072

$1.97

1050

Seat Wiring Harness

515178608

$35.04

1060

Switch Rocker

515178502

$18.63

2200

Pressure And Temperature Sensor

707000995

$81.31

2210

Screw M4 X 16

250000725

$3.30

2400

LH Switch Housing

515178851

$260.42

2410

Housing Plate

515177147

$17.13

2420

Torx Screw

250000671

$0.96

2470

Braided Sleeve

415130141

$54.45

2480

Braided Sleeve

415130141

$54.45

2600

Emergency Stop Switch

515177931

$72.36

2610

Emergency Stop Switch Support

515177310

$8.34

2620

Torx Screw #8-18

250000263

$0.99

3210

4 Circuits Female Housing

515178177

$11.54

4820

Elastic Stop Nut M6

232561434

$1.78

5000

Engine Control Module | Includes 5000 to 5000a

512061478

Unavailable

5000a

Capacitor

515177272

$82.81

5010

Rubber Stopper

515178430

$2.03

5020

Module Support

515178159

$4.15

5025

Hex. Flange Screw, Scotch Grip

207551634

$1.91

5030

Flange Elastic Nut M5

233251434

$1.91
