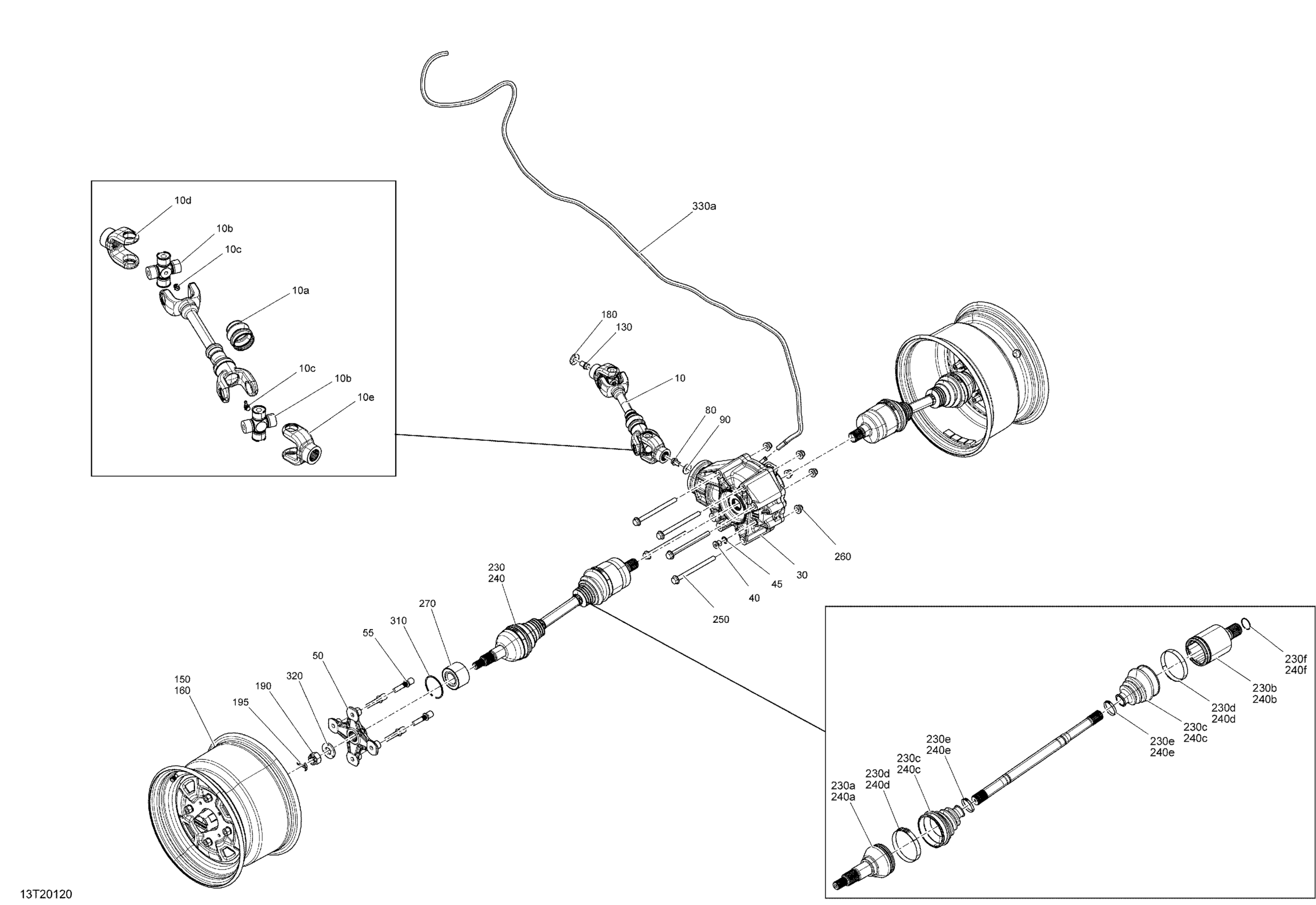

Can-Am Outlander T MAX 450 EFI - DPS - T Regulation, 2020 Rear Drive - Common Parts Diagram

#

Description
Price

10

Axle Drive | Includes 10 to 10e

705502726

$253.82

10a

Rubber Boot

715900118

$13.83

10b

Universal Joint Ass'y | T3

703500846

$78.43

10c

Grease Fitting | T3

715900295

$4.62

10d

Yoke | T3

715900500

$23.05

10e

Yoke

715900499

$23.05

30

Final Drive Unit

705502546

$1,107.66

40

Fill Level Plug | 4X4

705500504

$7.61

45

Copper Washer | 4X4

705500506

$0.36

50

Wheel Hub Ass'y

705501716

$129.20

55

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

90

Flat Washer M10 | 4X4

250200014

$1.17

130

Hex Flange Screw M12 X 16

250001039

$1.74

150

Not Available As Spare Part - Friction Washer

Unavailable

160

Not Available As Spare Part - Friction Washer

Unavailable

180

Conical Spring Washer M12

250200005

$2.65

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400071

$1.74

230

RH Homocinetic Joint | Includes 230 to 230d2

705502577

$233.82

230a

CV Joint

705501776

Unavailable

230b

Plunging Joint

715900604

$106.12

230d

Boot Kit

705501864

$41.51

230e

Oetiker Clamp, 82.1 mm

715900241

$7.84

230f

Oetiker Clamp, 27.3 mm

715900242

$7.84

230c

Circlip

705501781

$5.38

240

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$233.82

240a

CV Joint

705501776

Unavailable

240b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240c

Boot Kit

705501864

$41.51

240d

Oetiker Clamp, 82.1 mm

715900241

$7.84

240e

Oetiker Clamp, 27.3 mm

715900242

$7.84

240f

Circlip

705501781

$5.38

250

Hex. Flange Screw M10 X 135

250001041

$4.46

260

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.98

320

Conical Spring Washer M18

250200171

$5.28

330a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42
