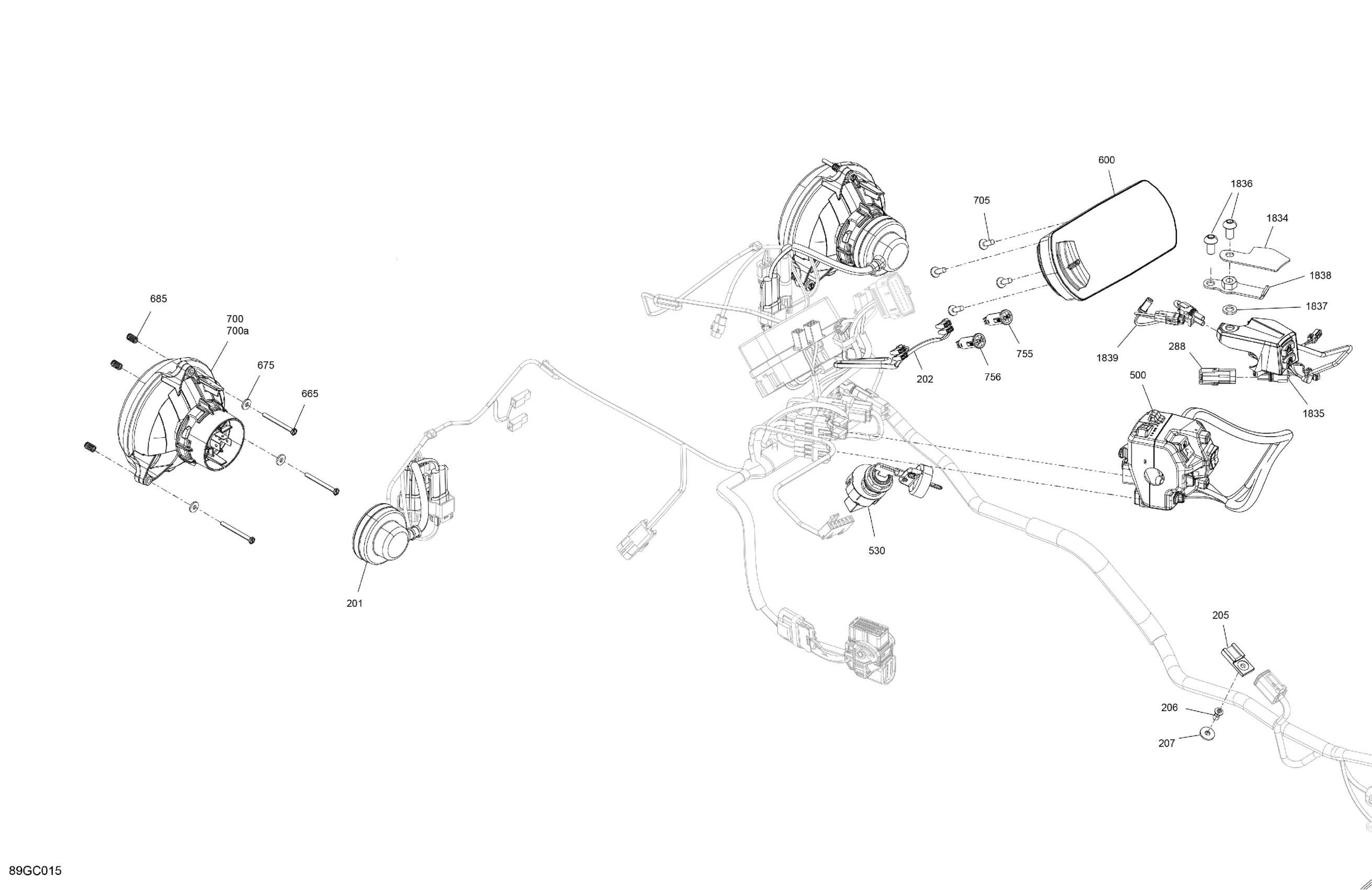

Can-Am Outlander T 450 EFI - XU+ - T Regulation, 2023 Electric - Front Section Diagram

Description

Price

201

Light Cable

710005780

$20.74

202

Tell Tale Wiring Harness

710007825

$23.05

205

Clip

270000141

$8.33

206

Pop Rivet 3/16 X ,551

293150301

$0.64

207

Washer | DS 650 X

391301600

$0.48

288

Connector Ass'y

710001642

$9.22

500

LH Front Switch Housing

710006672

$239.97

530

Ignition Switch | Except Model Pro, T3

710007864

$83.05

600

Multifunction Gauge Compact Mono

710008108

$383.05

665

Hex. Screw K40 X 45

250000718

$1.74

675

Flat Washer

517225900

$0.17

685

Spring

517168600

$6.91

700

Low Beam

710003900

$106.12

700a

Bulb, 12V 35/35W

710000871

$32.28

705

Torx Screw K50 X 16

250000720

$1.39

755

Trailer Turn Signal Pilot Lamp

710010098

$8.45

756

Pilot Light Marker

710010099

$8.45

1834

Top Plate

715004008

$23.05

1835

Multifonction Housing Ass'y

710004990

$147.66

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$9.22

1837

Washer

503192496

$0.75

1838

Housing Switch Support

710009590

$33.82

1839

Cable

710004567

$13.98
