Description

Price

10

Upper Steering Axle

709402798

$67.66

15

Deep Black, Handlebar

709402872

$55.35

20

Pitman Arm | Model With DPS Except XMR

703501160

$41.51

30

Heated Hand Grip With Connector

710005038

$59.97

37

End Piece

709400449

$8.29

50

Steering Support

709401799

$20.74

51

Stiffner

709400509

$4.43

60

Hex. Screw M8 X 60

207086046

$2.30

70

Hex. Elastic Flange Nut M8

233281416

$1.25

150

Hex. Flange Screw M8 X 20

207682044

$0.92

155

Hex. Flange Screw M8 X 25

207682544

$0.90

160

Spherical Bushing

709402169

$6.14

165

Spherical Half Bushing

709400783

$6.14

170

Hex. Flange Elastic Nut M8

233281414

$1.14

175

Upper Column Attachment

709400827

$1.00

176

Column Attachment

709401428

$36.12

180

Tie Rod Ass`y | Includes 15 to 17

703501038

$92.28

180a

Not Available As Spare Parts

XXX

Unavailable

180b

RH Ball Joint

709402302

$35.35

200

O-Ring

293300068

$5.29

210

Hardened Washer

706200281

$2.34

220

Hex Nut M12

250100239

$1.64

230

Cotter Pin

211400013

$0.32

240

Cover

709400939

$23.05

250

Power Steering Ass'y | Model With DPS

709403187

$1,176.89

260

LH Power Steering Bracket | Model With DPS

709402184

$15.35

262

RH Bracket | Model With DPS

709402185

$27.66

263

Power Steering Support | Model With DPS

709401743

$16.89

266

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

300a

LH Rearview Mirror

708200963

$36.89

300b

RH Rearview Mirror

708201092

$46.12

410

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.30

415

Hex. Elastic Flange Nut M8

233281416

$1.25

420

Hex. Flange Nut

233081436

$1.63

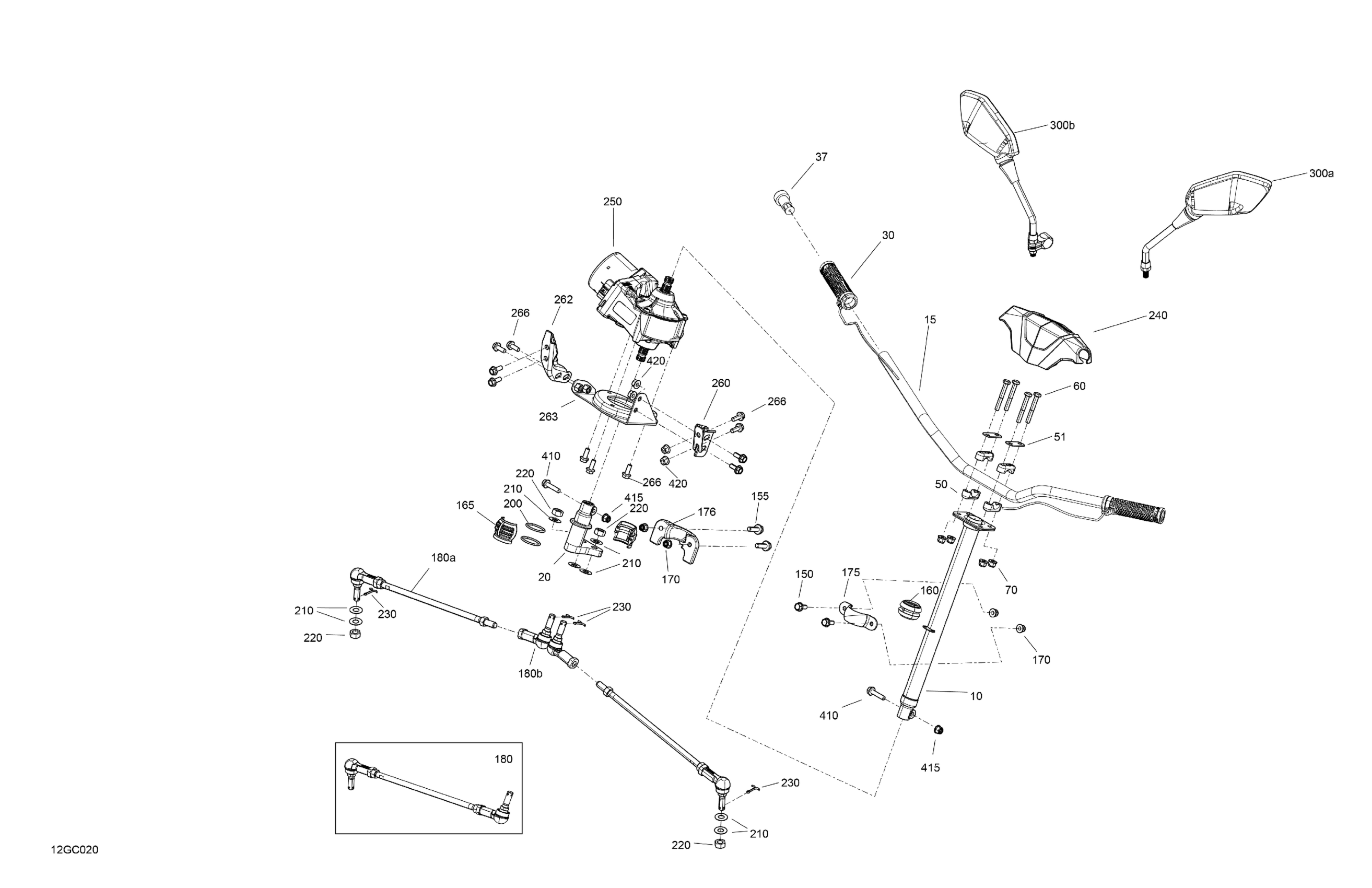

Can-Am Outlander T 450 EFI - XU+ - T Regulation, 2023 Mechanic - Steering Diagram

Not Available As Spare Parts
