Description

Price

10

Black, Upper Main Tube | Package-STD

709401545

$143.05

10

Main Tube Kit | Model With DPS

703501108

$67.66

12

Pitman Arm | Package-STD

709401542

$27.66

15

Black, Handle Bar

709401240

$55.35

20

Pitman Arm | Model With DPS Except XMR

703501160

$41.51

23

Not Available As Spare Parts

XXX

Unavailable

30

Handle Grip

709400493

$14.75

30

Heated Hand Grip With Connector

710005038

$59.97

37

End Piece

709400449

$8.29

50

Steering Support

709401799

$20.74

51

Stiffner

709400509

$4.43

60

Hex. Screw M8 X 60

207086046

$2.30

70

Hex. Elastic Flange Nut M8

233281416

$1.25

100

Hardened Washer

706200281

$2.34

110

Hex. Flange Elastic Nut M12

250000047

$1.56

150

Hex. Flange Screw M8 X 20

207682044

$0.92

158

Ball Bearing | Package-STD

503190396

$7.12

160

Spherical Half Bushing

709400783

$6.14

160

Spherical Half Bushing | Package-STD

709401370

$5.80

167

Seal

293250177

$7.37

170

Hex. Flange Elastic Nut M8

233281414

$1.14

175

Upper Column Attachment

709400827

$1.00

176

Column Attachment

709401428

$36.12

180

Tie Rod Ass`y | Includes 15 to 17

703501038

$92.28

180a

LH Ball Joint

709402303

$35.35

180b

RH Ball Joint

709402302

$35.35

200

O-Ring

293300068

$5.29

210

Hardened Washer

706200281

$2.34

220

Nut M12

250100099

$1.64

230

Cotter Pin

211400013

$0.32

235

Cotter Pin

250400034

$2.06

240

Cover

709400939

$23.05

250

Power Steering Ass'y | Model With DPS

709403187

$1,176.89

260

LH Power Steering Bracket | Model With DPS

709402184

$15.35

260

Power Steering Module Bracket

709402192

$23.05

262

RH Bracket | Model With DPS

709402185

$27.66

263

Power Steering Support | Model With DPS

709401743

$16.89

266

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

300

LH Mirror | Europe

709400406

$36.89

310

RH Mirror | Europe

709400407

$46.12

410

Hex. Flange Screw M8 X 35

250000986

$1.74

415

Hex. Elastic Flange Nut M8

233281416

$1.25

420

Hex. Flange Nut M8

233081416

$1.63

450

Not Available As Spare Parts

XXX

Unavailable

450a

Not Available As Spare Parts

XXX

Unavailable

450b

Not Available As Spare Parts

XXX

Unavailable

450c

Not Available As Spare Parts

XXX

Unavailable

450d

Not Available As Spare Parts

XXX

Unavailable

450e

Not Available As Spare Parts

XXX

Unavailable

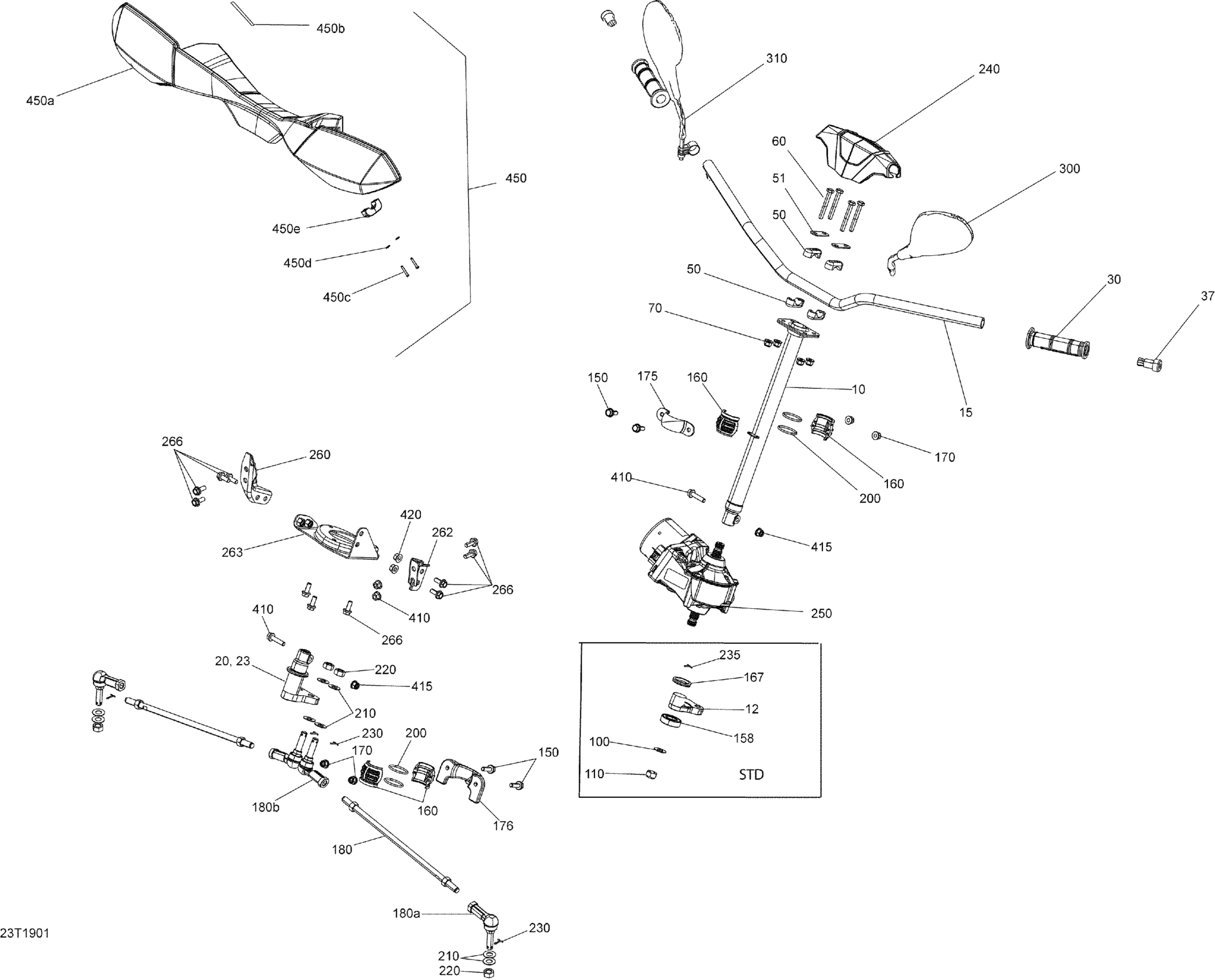

Can-Am Outlander MAX 450 EFI - T3, 2019 Steering Diagram
