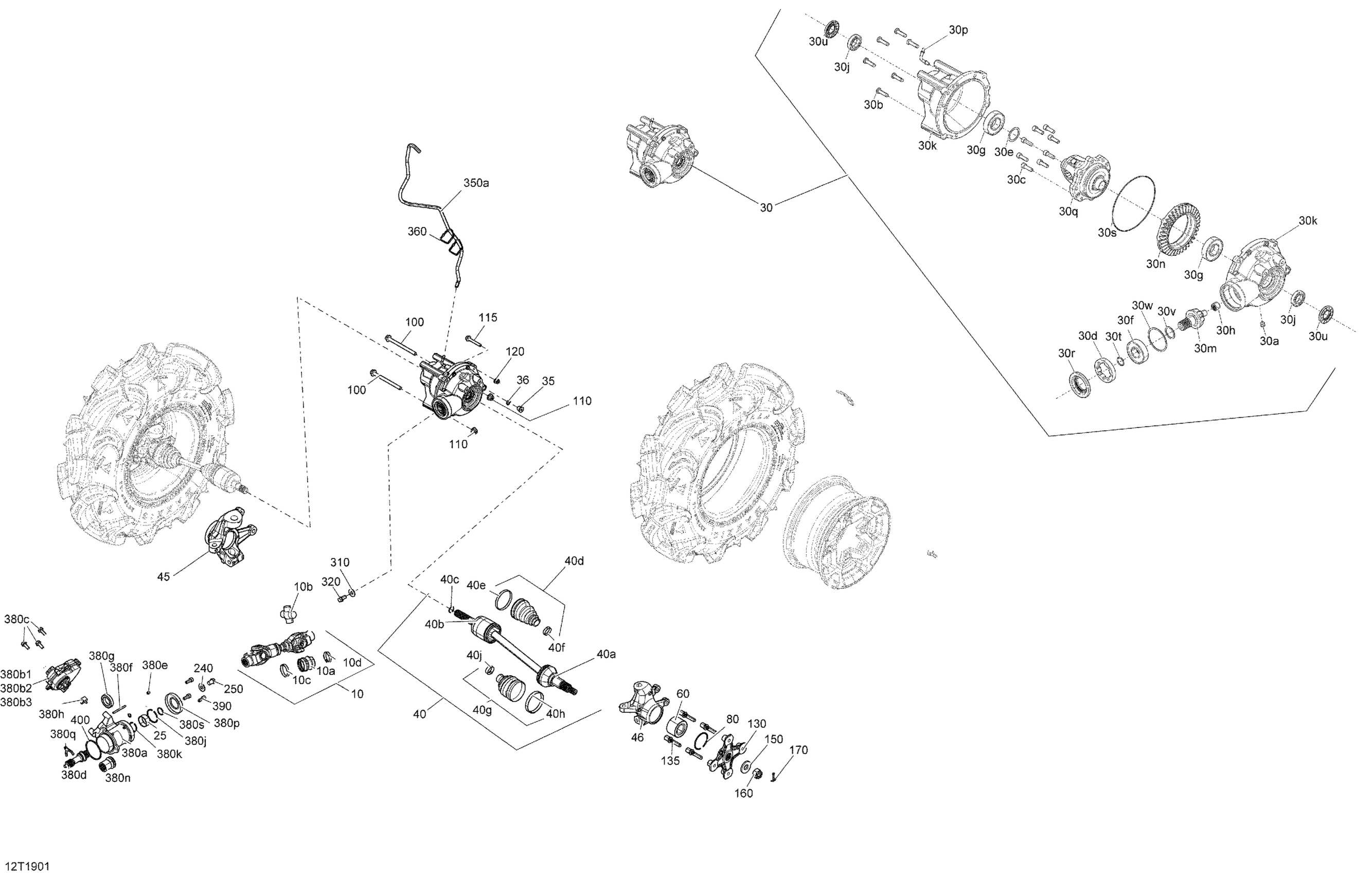

Can-Am Outlander MAX 450 EFI - T3, 2019 Front Drive - 450 EFI - DPS Diagram

Front Drive Axle

705403293

$164.15

Rubber Boot

715900118

$13.28

U-Joint Cross Kit | Engine 450

715900435

$72.36

Fixed Yoke Joint

715900497

$55.19

Yoke Joint

715900498

$23.10

Front Differential | Includes 30 to 30y

705402020

$929.99

Drain Plug | After May 30, 2014

705501885

$11.93

Screw | 4X4

705401601

$8.67

Screw | After May 30, 2014

705401602

$5.52

Nut | 4X4

705401603

$33.55

Shim | 4X4

705401604

$51.46

Ball Bearing | After May 30, 2014

705401605

$29.82

Ball Bearing | 4X4

705401606

$47.73

Ball Bearing | After May 30, 2014

705402848

$44.75

Ball Bearing | After May 30, 2014

705401608

$47.73

Front Cover | After May 30, 2014

705401610

$134.30

Pinion 10 Teeth | After May 30, 2014

705402841

$194.75

Gear 36 Teeth | After May 30, 2014

705401612

$364.15

Vent Valve | After May 30, 2014

705401613

$13.43

Differential

705402128

$977.49

Oil Seal | After May 30, 2014

705401615

$17.88

Seal | After May 30, 2014

705401616

$12.94

O'Ring | After May 30, 2014

705401617

$6.69

Gasket | 4X4

705401618

$17.13

Shim

705401769

$6.30

Shim

705401770

$6.30

Front Pinion Cover | After May 30, 2014

705401792

$134.30

Fill Level Plug | 4X4

705500504

$7.61

Copper Washer | 4X4

705500506

$0.36

RH Homocinetic Joint | Includes 40 to 40f2

705402021

$226.84

CV Joint

705401344

$241.01

RH Plunging Joint

715900602

$102.21

Circlip Joint | Not shown

705401349

$5.10

Boot Kit, Wheel Side

705401345

$39.52

Oetiker Clamp

715900282

$4.39

Oetiker Clamp, Small

715900283

$4.39

Boot Kit, Differential Side

705401346

$39.52

Oetiker Clamp, Large

715900284

$4.39

Oetiker Clamp, Small

715900261

$4.39

LH Homocinetic Joint | Includes 50 to 50f2

705402022

$226.84

CV Joint

705401344

$241.01

LH Plunging Joint

715900603

$91.01

Circlip Joint | Not shown

705401349

$5.10

Boot Kit, Wheel Side

705401345

$39.52

Oetiker Clamp

715900282

$4.39

Oetiker Clamp, Small

715900283

$4.39

Boot Kit, Differential Side

705401346

$39.52

Oetiker Clamp, Large

715900284

$4.39

Oetiker Clamp, Small

715900261

$4.39

LH Knuckle

705403307

$167.13

RH Knuckle

705403308

$167.13

Sensor Support

705402088

$2.51

Flat Washer 8 mm

234081410

$0.69

Torx Truss M8 X 25

250000874

$1.74

Ball Bearing

293350150

$52.21

Circlip

293370019

$4.68

Hex. Flange Screw M10 X 125

230602546

$6.08

Hex. Flange Elastic Nut M10

233201436

$1.74

Hex. Flange Screw M8 X 55

207685544

$4.41

Hex. Flange Elastic Nut M8

233281414

$1.14

Wheel Hub Ass'y

705501716

$123.10

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$3.96

Conical Spring Washer M18

250200171

$5.28

Hex. Flange Castellated Nut M18

232291413

$2.82

Cotter Pin

250400071

$1.74

Flat Washer M12

250200102

$1.74

Hex Flange Screw M12 X 16

250001039

$1.74

Flat Washer M10 | 4X4

250200014

$1.17

Hex Flange Screw M10 X 20 S.Grip

250001046

$3.61

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

Machined Housing

705402360

$146.24

Fork | 4X4

705400274

$15.64

Circlip | 4X4

293370042

$3.01

O-Ring

293300117

$4.15

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

250000137

$3.13

Idler Shaft Gear

705401509

$105.49

Pressure Screw M8 X 8 | 4X4

206580890

$1.60

Dowell Pin | 4X4

250400025

$7.21

Ball Bearing | 4X4

705400249

$23.85

Slider | 4X4

705402139

$41.76

Circlip | 4X4

293370029

$4.85

Circlip | 4X4

293370030

$2.67

Coupling Sleeve | 4X4

705400389

$29.82

Oil Seal

293250348

$18.63

Shifter Lever Plate | 4X4

705401553

$17.13

O-Ring

293300179

$1.97

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.06

O-Ring

293300091

$6.96
