Description

Price

10

Ground Cable

710004382

$18.43

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

12

Lock Washer Helical M6

234161601

$0.92

15

Torx Head Screw M6 X 16

250000717

$1.74

16

Flat Washer

224061121

$0.44

17

Domed Nut M6

232361493

$1.77

20

Positive Cable

710004377

$27.66

21

Elastic Stop Nut M6

232561414

$1.55

41

Battery Cable Cap

710006729

$7.37

81

Winch Cable

710005246

$41.51

200

Harness

710006169

$969.20

202

Indicator Light Cable

710005840

$16.89

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.64

207

Washer | DS 650 X

391301600

$0.48

211

Clip

710000992

$4.00

240

Connector Bracket

710004118

$5.52

241

Hex. Flange Screw M6 X 20

210262040

$2.06

242

External Serrated Lock Washer 6 mm

234461608

$0.92

280

Clip

414227300

$1.45

370

Mount Dart

293730040

$0.86

385

Tie-Rap Clip

710002896

$4.60

400

Starter Relay

710007777

$46.89

401

Lock Washer Helical M6

234161601

$0.92

402

Elastic Stop Nut M6

232561414

$1.55

404

Hex. Flange Screw M6 X 20

207662054

$0.83

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

410

Flasher Unit

710003239

$78.43

500

LH Multi Fonction Control

710006211

$161.51

530

Ignition Switch

710008400

Unavailable

600

Speedometer | Package XTP

710006489

$415.35

600a

Cap Support | XTP

705004366

$12.31

600b

Lens | XTP

415129349

$23.05

600c

Speedometer Button | XTP

415129355

$13.94

610

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

630

Grey, Electronic Key

710002183

$55.35

640

Black, Electronic Key

710000817

$55.35

661

Handle

572106600

$9.31

665

Hex. Screw K40 X 45

250000718

$1.74

685

Spring

517168600

$6.91

700

Low Beam | Includes 54 to 55

710006177

$115.35

700a

Bulb 12V 55W

715900141

$41.51

701

RH High Front Housing

710002291

$27.66

704

LH High Front Housing

710002292

$23.05

707

Phillips Screw K40 X 16

250000723

$0.81

710

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

710a

Halogen Bulb

415129249

$39.97

720

Tail Light Ass'y | Includes 32 to 33

710001645

$81.51

720a

Bulb

520000758

$7.49

725a

License Plate Light | Europe

710005563

$124.58

725b

Plate Support | Europe

708300434

$25.35

725c

Hex. Flange Elastic Nut M5

233251414

$1.66

725d

Red Reflector

705011221

$12.32

730

Position Light Harness

710005676

$13.52

740

Flasher | Europe

710002964

$35.35

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

755

Pilot Light Trailer Flasher

710005766

$8.45

756

Pilot Light Tail Lamp

710005767

$8.45

757

Pilot Lamp | Model-Europe

710003909

$23.05

770

Day Light | Europe

710001726

$36.89

779

Horn Support

710006113

$11.15

780

Horn

710004791

$37.66

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 70

207667044

$0.70

783

Bushing

708001129

$10.98

784

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

785

Hex. Flange Screw M6 X 16

207661644

$0.61

800

Voltage Regulator

710005842

$159.87

801

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

810

Rectifier Support

710001752

$7.11

811

Hex. Flange Screw M6 X 20

207662044

$1.66

812

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

850

Connector Plug

710004904

$8.55

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

900a

Battery Bolt Kit

250000282

$2.95

905

Battery Support

710008370

$46.12

906

Hexagonal Head Screw

210262050

$1.74

907

Rubber Bumper

293830005

$5.33

908

Stainless Steel Flat Washer

234062670

$1.74

920

Retaining Plate

710009129

$7.60

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.83

950

DC Outlet

710001248

$31.17

1830

Speed Sensor

710006981

$78.43

1831

Torx Screw K50 X 16

250000720

$1.39

1832

Torx Truss Screw M6 X 16

250000721

$1.39

1843

Hex. Flange Elastic Nut M5

233251414

$1.66

1844

Socket Head Screw M5 X 35

205053588

$1.56

1845

Trailer Harness

710005846

$212.28

1851

Clamp

293650256

$4.36

1852

Hex. Flange Screw M6 X 16

210261640

$1.74

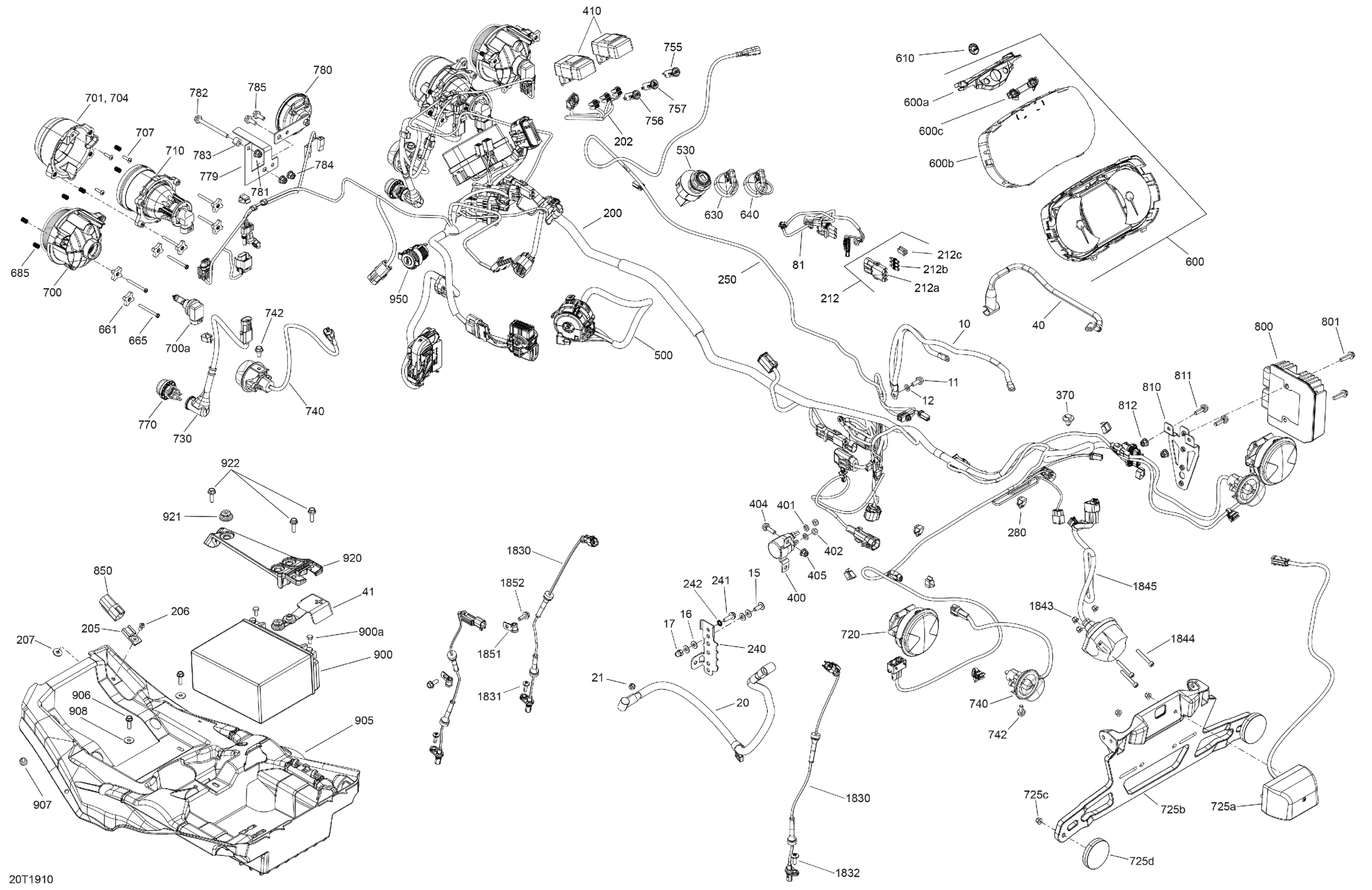

Can-Am Outlander MAX 1000 EFI - T3, 2019 Electrical - 1000R EFI - Package XTP Diagram

Ignition Switch
