Description

Price

10

Chassis

705209379

$1,049.99

60

Rear Pillar

705210818

$69.99

70

Hex. Flange Screw M10 X 25

207602546

$1.74

80

Hex. Flange Elastic Nut M10

233201436

$1.74

190

Hex. Flange Screw M6 X 16

207661644

$0.61

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

240

Footrest Support

705210817

$79.99

250

Master Cylinder Bracket

705203874

$11.49

260

Chassis Extension

705210822

$123.74

260a

Threaded Insert M6 X 1.0

250100242

$2.54

265

Hex. Flange Screw M10 X 25

207602546

$1.74

270

Hex. Flange Elastic Nut M10

233201436

$1.74

280

Hex. Flange Elastic Nut M8

233281414

$1.14

310

Insert Half Hex Body M8 x 1.25

293450307

$2.03

320

Insert Half Hex Body M6 x 1.0

250100199

$2.54

330

Rear Support

705203301

$41.51

340

Hex. Flange Screw M8 X 20

207682046

$1.82

350

Hex. Elastic Flange Nut M8

233281416

$1.25

360

Trailer Hitch

715005186

$134.99

370

Trailer Hitch Kit | Includes 7 To 11

705210320

$115.35

370a

Hitch Pin

705204490

$54.58

390

Trailer connector Support

705206416

$6.99

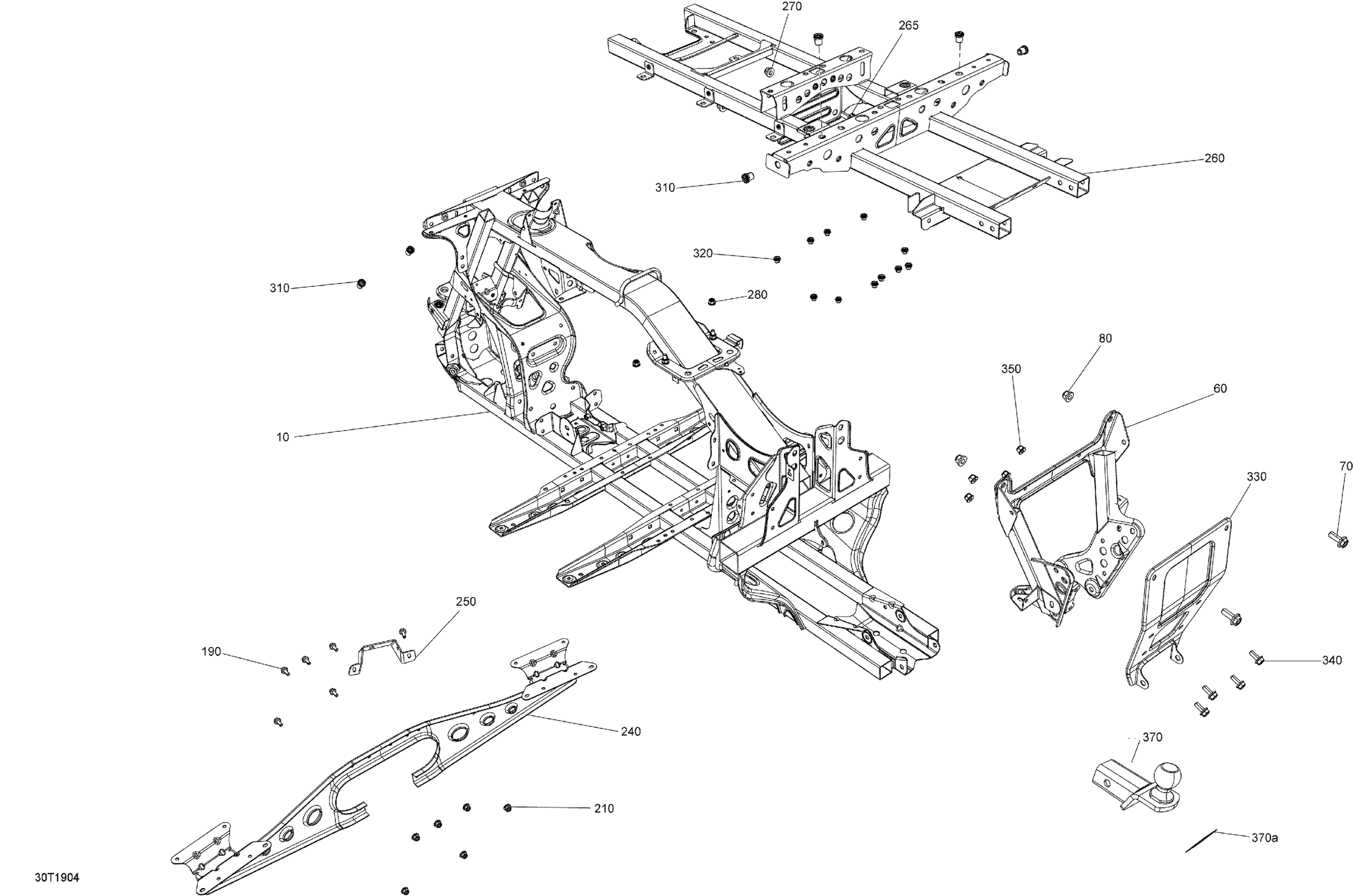

Can-Am Outlander MAX 1000 EFI - T3, 2019 Frame Diagram
