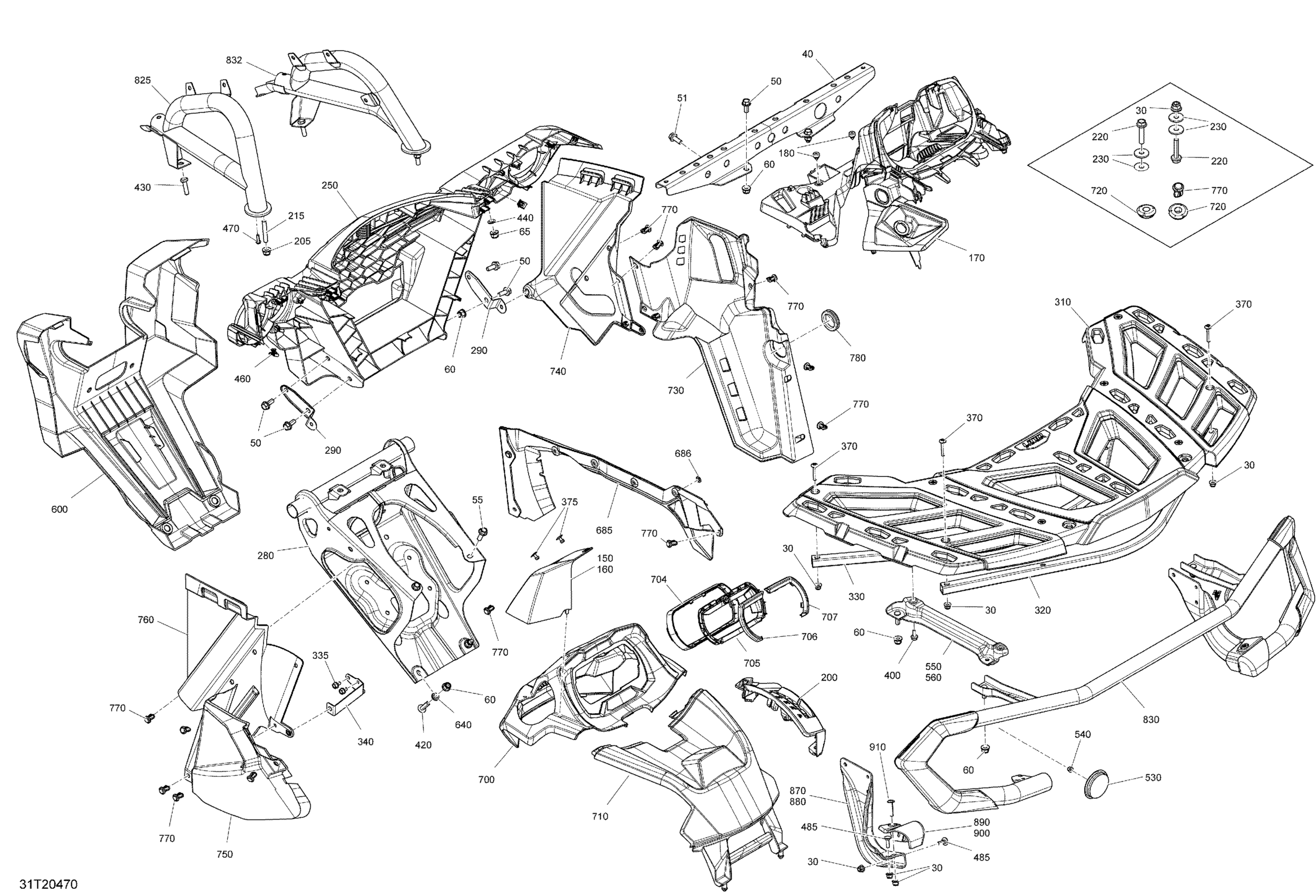

Can-Am Outlander 850 EFI - XMR - 2020 Body - Granite Grey Diagram

Flange Elastic Nut M6

233261434

$4.15

Front Bumper Center Support

705006220

$79.82

Hex. Flange Screw M8 X 20

207682044

$1.06

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

Hex. Flange Elastic Nut M8

233281434

$2.00

Elastic Flange Nut M8

233281464

$0.96

LH Air Deflector

705006134

$23.85

RH Air Deflector

705006135

$22.36

Dash Support Kit | Includes 170 to 170

705013986

Unavailable

Rubber Bumper

293830005

$6.12

Shifter Gate Kit | Engine 570 Except Europe, T3

715003977

$23.85

Hex. Flange Elastic Nut M8

233281434

$2.00

Socket Set Screw M8 x 50

206285044

$4.37

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

Flat Washer

224061201

$1.27

Fascia

705012822

$108.18

Front Bumper Support

705016893

$314.90

Lower Fender Support

705004565

$6.19

Rack Kit

715007070

$172.36

Sectional Bent Tube

705016640

$34.30

Bent Sectional Tube

705016092

$38.03

Hex. Flange Screw M6 X 10

210261040

$1.43

LH Inner Fender Bracket

705007140

$18.63

Black, Torx Screw M6 X 35

250000646

$0.90

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Torx Screw M8 X 30

250000886

$2.00

Hex. Cap Screw M8 X 30

207183054

$4.15

Stainless Steel Flat Washer 8 mm

234081670

$0.64

Edge Clip

517302785

$0.81

Hex. Flange Screw, Scotch Grip

207551634

$1.91

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

Red Reflector

705011221

$11.96

Flange Elastic Nut M5

233251434

$1.91

LH Support

705007277

$27.58

RH Support

705007278

$27.58

Front Guard Plate | North America, International

705006299

$46.24

Ring

705004497

$3.87

Deflector Body Panel

705014061

$38.78

Push Nut

732610072

$1.97

Gauge Support

705013983

$40.27

Back Trim | Package DPS

705012878

$4.79

Gauge Trim

709402742

$12.30

Deep Black, LH Trim Gauge

709402210

$25.34

Deep Black, RH Trim Gauge

709402211

$25.34

Torx Head Screw M4 X 16

250000797

$1.87

Dash Kit

715005837

$29.82

Grommet

705003264

$3.94

RH Wheel Arch Protector

705013925

$16.39

RH Front Inner Fender

705011463

$14.13

LH Wheel Arch Protector

705013924

$16.39

LH Front Wheel Arch Protector

705017001

$14.13

Tuflok Plastic Rivet

293150230

$1.39

Rubber Cover

293250242

$5.18

Manta Green, LH Radiator Support

705016594

$208.18

Manta Green, Rear Bumper | Model-Digital Camo

705014131

$216.39

Manta Green, RH Radiator Support | Model-Digital Camo

705016595

$208.18

LH Rear Bracket | XT

705008164

$33.55

RH Rear Bracket | XT

705008165

$33.55

LH Bracket | XT

705005094

$6.39

RH Bracket | XT

705005095

$6.39

Stainless, Torx Screw M6 X 30

250000842

$2.00
