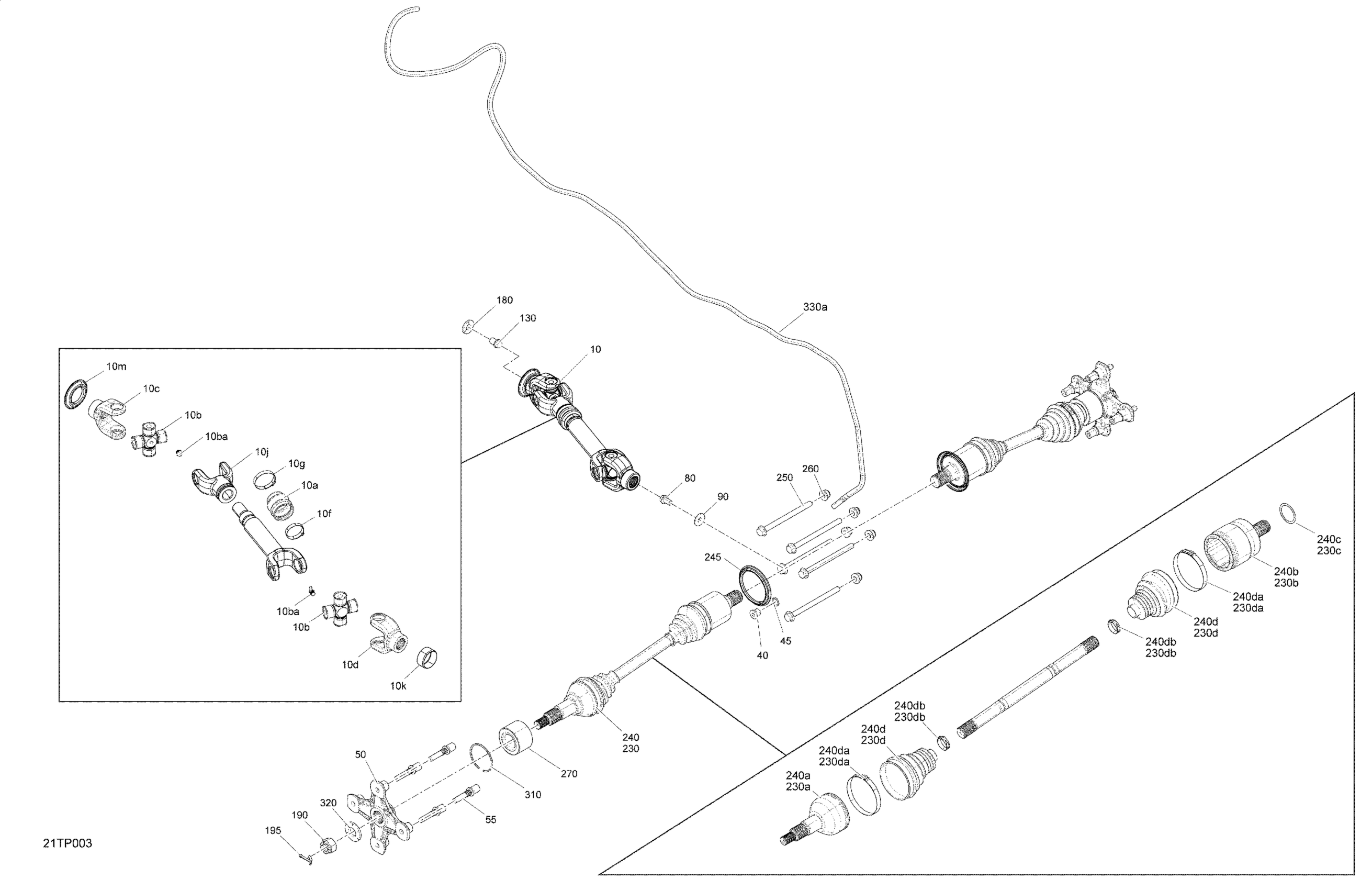

Can-Am Outlander - 650 EFI - PRO Package 0003PGA00 0003PGB00 0003TGA00 0003TGB00 Drive - Rear - Common Parts - NO MAX Diagram

#

Description
Price

10

Shaft Ass'y Kit | Incldues 1 to 5

703500991

$313.82

10a

Rubber Boot

715900118

$13.83

10b

Universal Joint Ass'y | T3

703500846

$78.43

10ba

Grease Fitting | T3

715900295

$4.62

10c

Fixe Yoke

715900296

$23.05

10d

Joint

715900272

$23.05

10f

Oetiker Gear Clamp 36.1MM

509000045

$3.55

10g

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

10j

Spline Yoke

715900106

$41.51

10k

Wear Ring | 4X4

705400036

$25.35

10m

Protector

705501123

$7.37

40

Fill Level Plug | 4X4

705500504

$7.61

45

Copper Washer | 4X4

705500506

$0.36

50

Wheel Hub

705501900

$129.20

55

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

90

Flat Washer M10 | 4X4

250200014

$1.17

130

Hex Flange Screw M12 X 16

250001039

$1.74

180

Flat Washer M12

250200102

$1.74

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400071

$1.74

230

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$233.82

230a

CV Joint

705501776

Unavailable

230b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

230c

Circlip

705501781

$5.38

230d

Boot Kit

705501864

$41.51

230da

Oetiker Clamp, 82.1 mm

715900241

$7.84

230db

Oetiker Clamp, 27.3 mm

715900242

$7.84

240

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$233.82

240a

CV Joint

705501776

Unavailable

240b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240c

Circlip

705501781

$5.38

240d

Boot Kit

705501864

$41.51

240da

Oetiker Clamp, 82.1 mm

715900241

$7.84

240db

Oetiker Clamp, 27.3 mm

715900242

$7.84

245

Wear Ring

705501124

$7.28

250

Hex. Flange Screw M10 X 135

250001041

$4.46

260

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.98

320

Conical Spring Washer M18

250200171

$5.28

330a

Polyurethane Hose 10000Mm Long

219704410

$46.12
