Description

Price

10

Ground Cable

710004382

$18.43

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

12

Lock Washer Helical M6

234161601

$0.92

15

Torx Head Screw M6 X 16

250000717

$1.74

16

Flat Washer

224061121

$0.44

17

Domed Nut M6

232361493

$1.77

20

Positive Cable

710004377

$27.66

21

Elastic Stop Nut M6

232561414

$1.55

40

Positive Cable

710004376

$46.12

41

Battery Cable Cap

710006729

$7.37

200

Wiring Harness Main | Package PRO

710006708

$946.12

200a

Fuse Shematic Decal

710003976

Unavailable

200b

Headlamp Protector Cap

710004020

$10.14

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.64

207

Washer | DS 650 X

391301600

$0.48

240

Connector Bracket

710004118

$5.52

241

Hex. Flange Screw M6 X 20

210262040

$2.06

242

External Serrated Lock Washer 6 mm

234461608

$0.92

370

Mount Dart

293730040

$0.86

400

Starter Relay

710007777

$46.89

401

Lock Washer Helical M6

234161601

$0.92

402

Elastic Stop Nut M6

232561414

$1.55

404

Hex. Flange Screw M6 X 20

207662054

$0.83

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

500

Multi Fonction Control | Package STD

710006229

$69.20

501

Socket Head Screw M5 X 35

205053588

$1.56

530

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

530

Switch_Ignition | Model-Europe

710007865

$69.20

600

Speedometer

710006216

$323.05

630

Black, Electronic Key

710000817

$55.35

630

Green Key RFID | Except Model Europe, Except T3

710005232

$55.35

631

Grey, Electronic Key

710002183

$55.35

631

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

665

Hex. Screw K40 X 45

250000718

$1.74

675

Flat Washer

517225900

$0.17

685

Spring

517168600

$6.91

700

Low Beam

710003900

$106.12

700a

Bulb, 12V 35/35W

710000871

$32.28

720a

Bulb

520000758

$7.49

720b

Male Housing, 3 Circuits

515175494

$15.35

720

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$73.82

750

Pilot Lamp Cap

710003910

$3.85

800

Voltage Regulator | Package-DPS, Model-Europe

710005569

$85.77

801

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

900a

Battery Bolt Kit

250000282

$2.95

905

Battery Support

710008370

$46.12

906

Hexagonal Head Screw

210262050

$1.74

907

Rubber Bumper

293830005

$5.33

908

Stainless Steel Flat Washer

234062670

$1.74

920

Retaining Plate

710009129

$7.60

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.83

950

DC Outlet

710001248

$31.17

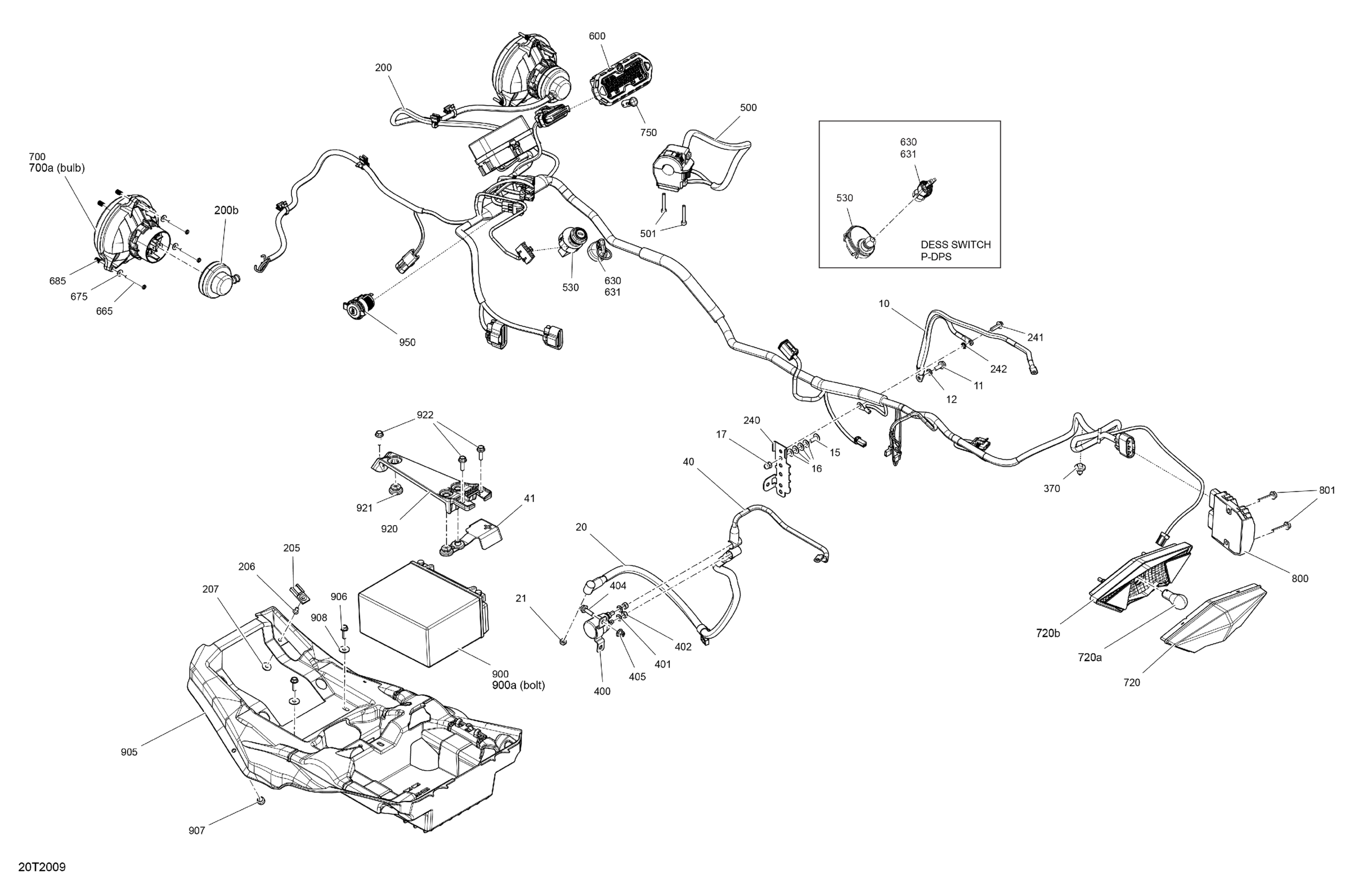

Can-Am Outlander 570 EFI - DPS_PRO - International - European Communities, 2020 Electrical System Diagram

Fuse Shematic Decal
