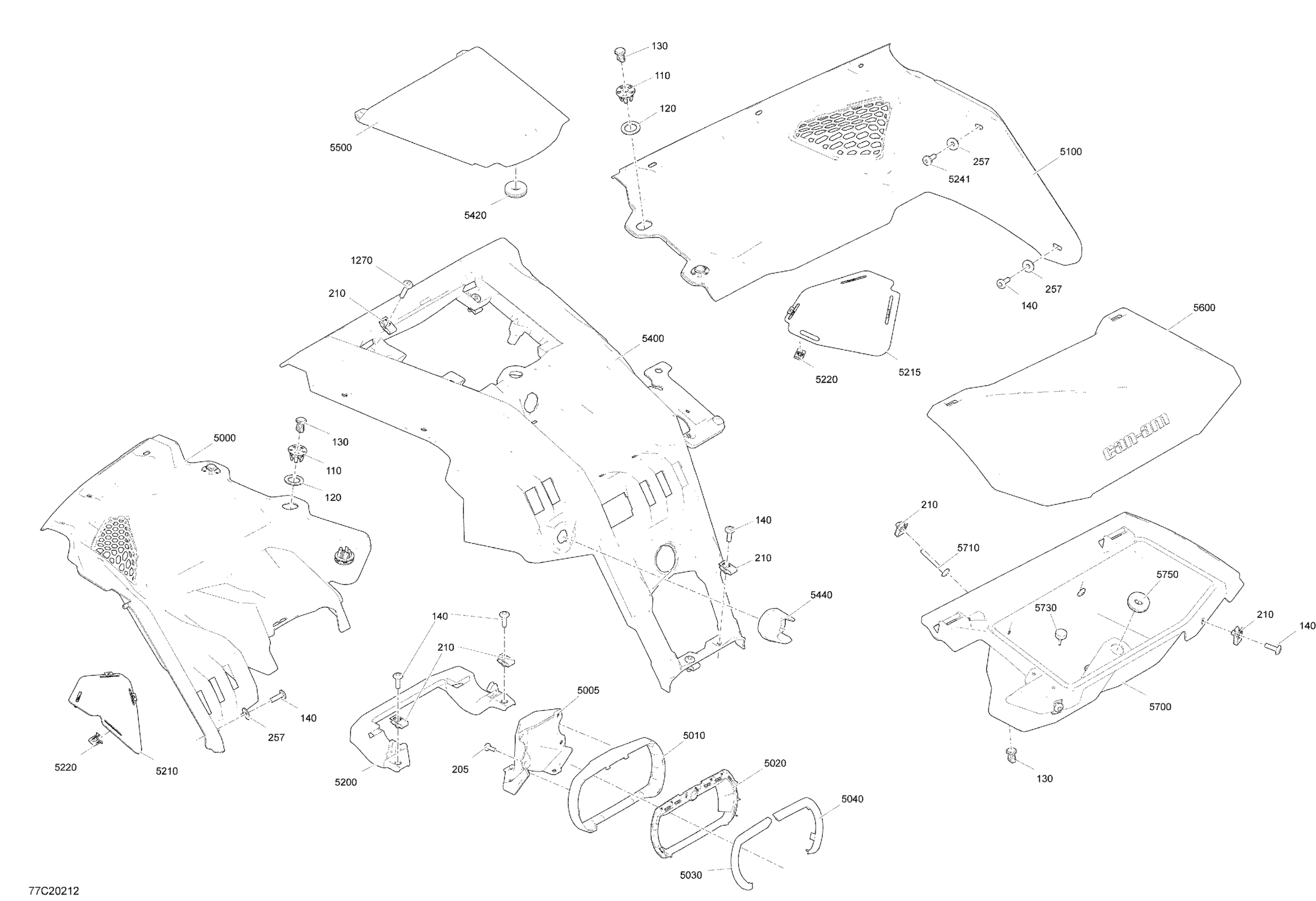

Can-Am Maverick Turbo R, Turbo RR - STD_XDS_XRS - 2020 Cab Interior - Dashboard - STD Diagram

Description

Price

110

Insert

707900133

$2.75

120

Washer

503189273

$3.20

130

Tuflok Plastic Rivet

293150230

$1.21

140

Torx Screw M6 X 20

250000722

$1.34

205

Torx Screw K50 X 16

250000720

$1.39

210

Panel Nut M6 X 1.0

250100198

$1.73

257

Stainless Steel Flat Washer

234062670

$1.74

1270

Stainless, Torx Screw M6 X 30

250000842

$1.74

5000

LH Dashboard Kit

715006587

$110.74

5005

Cluster Support

709402140

$16.89

5010

Rear Cluster Cap

709402092

$13.83

5020

Gauge Trim

709402742

$12.68

5030

Deep Black, LH Trim Gauge

709402210

$27.66

5040

Deep Black, RH Trim Gauge

709402211

$27.66

5100

RH Dashboard

707900698

$41.51

5200

Dash Support

707900479

$14.37

5210

LH Speaker Cover

707900465

$26.89

5215

RH Speaker Cover

707900590

$26.89

5220

Edge Clip

517302785

$0.70

5241

Torx Screw M6 X 20

250000712

$1.74

5400

Central Dashboard

707901065

$63.05

5420

Grommet

517303756

$3.15

5440

Key Protector

707900598

$4.98

5500

Dash Cover

707900400

$27.66

5600

Glove Box Cover Kit

715004067

$55.35

5700

Glove Box

707900350

$92.28

5710

Torx Truss M6 X 50

250000868

$1.74

5730

Rubber Stopper

708000759

$3.61

5750

Grommet

517303756

$3.15
