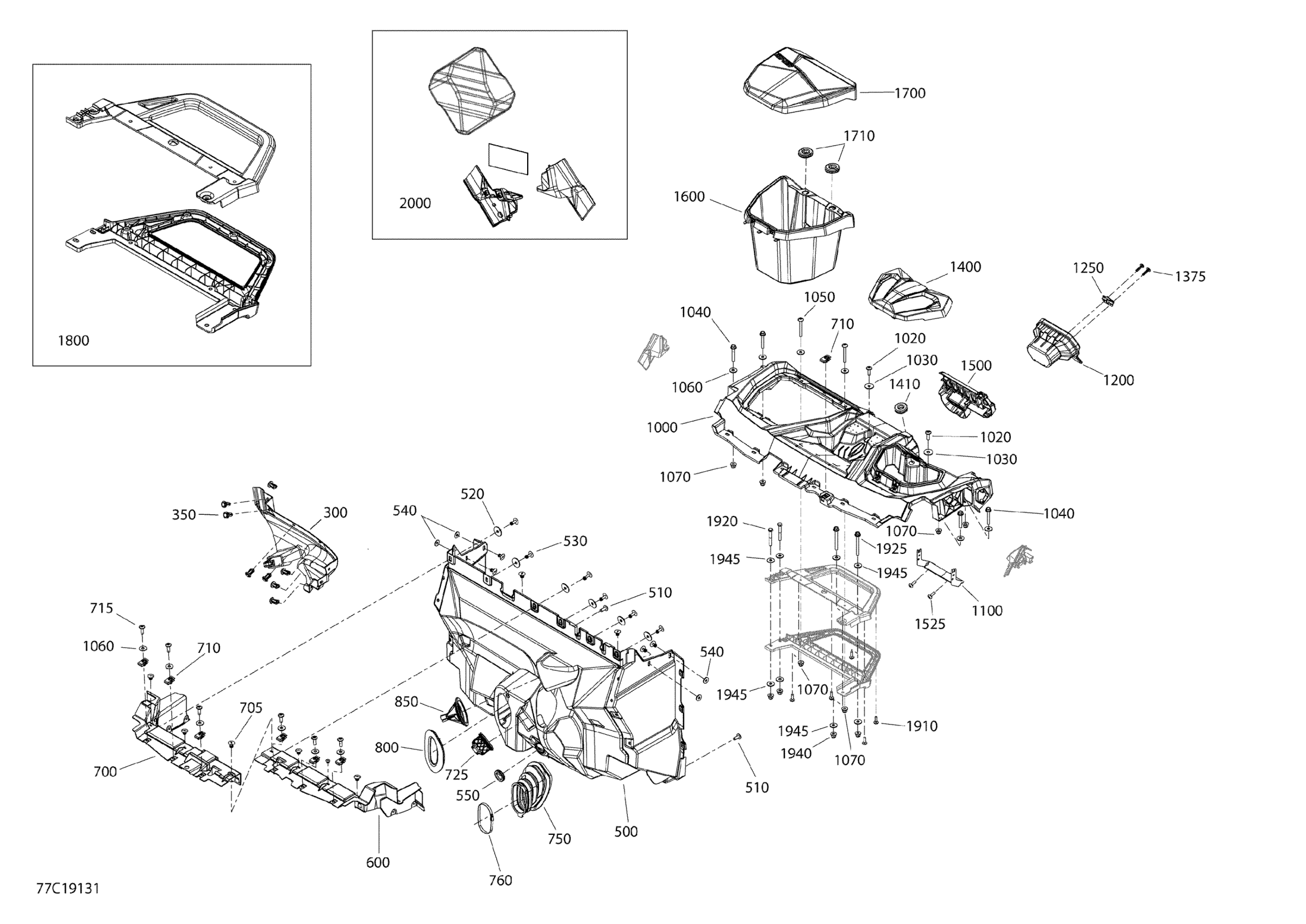

Can-Am Maverick Sport MAX 1000R - DPS - 2019 Cab Interior Maverick Sport - Dash Section Diagram

Description

Price

300

Front Lower Heat Deflector

705012498

$13.57

350

Tuflok Plastic Rivet

293150230

$1.39

500

Kit Lower Front Bulkhead

703501096

$614.90

510

Torx Truss Screw M6 X 16

250000721

$1.60

520

Flat Washer M6 X 25

250200044

$1.97

530

Pop Rivet 3/16"

293150100

$1.04

540

Washer M5

250200025

$0.70

550

Rubber Cover

293250242

$5.18

600

LH Upper Front Bulkhead

707900513

$15.64

700

RH Upper Front Bulkhead

707900514

$15.64

705

Pop Rivet 3/16"

293150100

$1.04

710

Panel Nut M6 X 1.0

250100198

$1.99

715

Torx Screw M6 X 20

250000722

$1.54

725

Steering Column Deflector

707900511

$7.64

750

Break Pedal Deflector

707900515

$17.13

760

Norma Gear Clamp

514052983

$14.90

800

Gas Pedal Deflector

707900516

$10.67

850

Front Rubber Deflector

707900517

$9.85

1000

Dashboard Kit

715006762

$182.81

1020

Torx Screw M6 X 20

250000722

$1.54

1030

Flat Washer M6.6 X 22

250200162

$2.19

1040

Hex. Flange Screw M6 X 40

207664044

$2.12

1050

Torx Truss M6 X 50

250000868

$2.00

1060

Stainless Steel Flat Washer

234062670

$2.00

1070

Hex. Flange Elastic Nut M6

233261466

$1.91

1100

Dash Support

707900941

$7.31

1200

Speedometer Cover

709400514

$14.90

1250

Latch Indicator Cover

709400573

$9.90

1375

Torx Screw Truss Head K50X20 T20

250000760

$2.00

1400

Storage Cover

707900522

$12.46

1410

Grommet

517303756

$3.61

1500

Switch Support

707900523

$15.64

1525

Torx Screw K50 X 16

250000720

$1.60

1600

Glove Box

715005011

$51.46

1700

Glove Box Cover

715005009

$48.48

1710

Oblong Grommet

707900663

$2.06

1800

Passenger Handle Bar Kit

707900559

$32.06

1910

Torx Screw K50 X 16

250000720

$1.60

1920

Hex. Flange Screw M6 X 40

207664044

$2.12

1925

Hex. Flange Screw M6 X 60

250000778

$4.15

1940

Hex. Flange Elastic Nut M6

233261466

$1.91

1945

Stainless Steel Flat Washer

234062670

$2.00

2000

Front Cage Trim Kit

707900531

$26.09
