Description

Price

1>23

Gear Box Ass'y

420686753

$3,449.99

2

Oil Seal

420250452

$17.66

3

Oil Seal

420831185

$17.66

4

Oil Seal

420950089

$18.43

5

Crush Washer

420552280

$2.99

6

Drain Plug M18 X 1.5

420840278

$23.05

7

Oil Dipstick

420256806

$16.89

8

O-Ring

420631640

$2.06

9

Oil Seal

420931802

$5.29

10

Angle Rotation Sensor

420666850

$193.82

11

Torx Flange Screw M6 X 16

420440162

$3.11

12

Cover | Without Lockable Rear Differential

420427560

$50.74

13

O-Ring | Included in gasket set gearbox

420450450

$1.46

14

Washer 5.3

420927574

$1.85

15

Allen Screw M5 X 14

420240150

$2.31

16

Not Available As Spare Part - Friction Washer

Unavailable

17

O-Ring

420430622

$3.61

18

Plug Screw M16 X 1.5

420240234

$13.58

19

Plug Screw M10X10

420241905

$2.75

20

Camshft Position Sensor Ass'y

420265727

$108.89

21

Torx Flange Screw M6 X 16

420440162

$3.11

22

Seal Washer

420230415

$1.77

23

Torx Flange Screw M6 X 30

420440647

$1.97

24

Actuator Ass'y 4 pins

715900613

$299.97

25

Collar Screw M6 x 25

420441951

$1.83

26

Hex. Nut M8

420842619

$2.75

27

Gearbox Gasket Set

420686603

$96.89

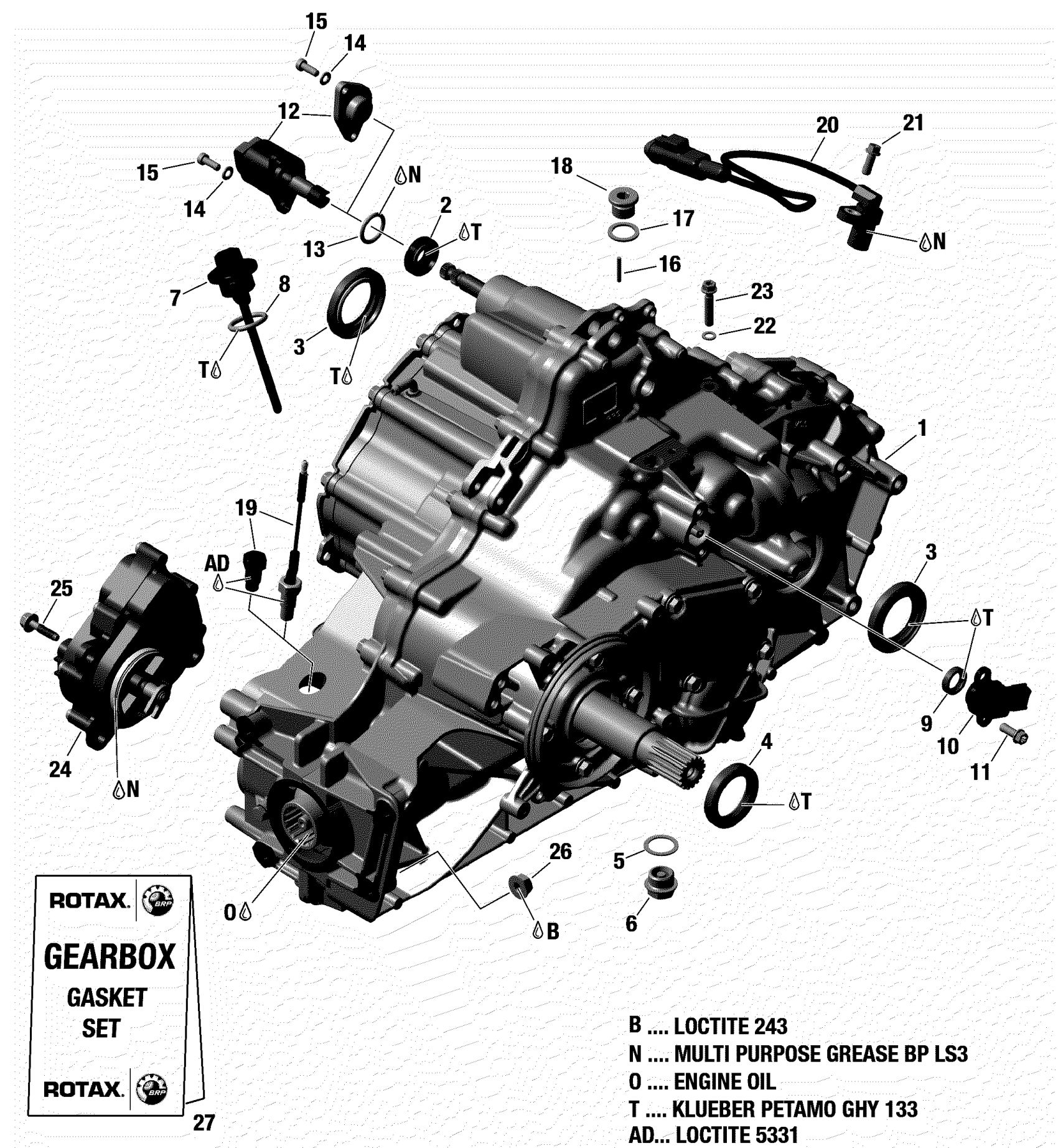

Can-Am Maverick Sport 1000R - DPS - 2019 Gear Box And Components - 420686753 Diagram

Not Available As Spare Part - Friction Washer
