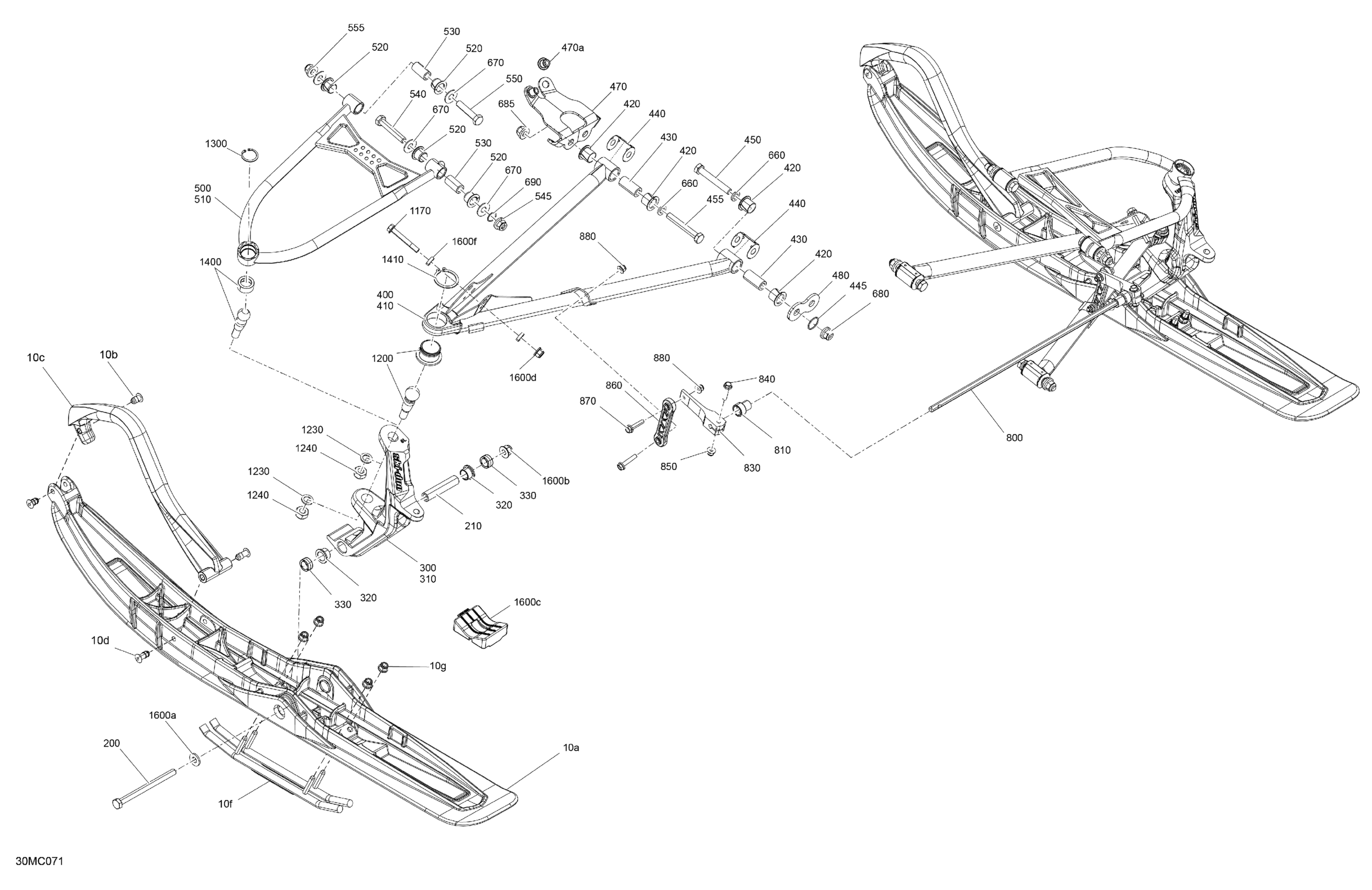

Ski-Doo GRAND TOURING 900 ACE TURBO - LTD - 2023 Suspension - Front Diagram

#

Description
Price

10a

Pilot SL Ski Ass'y

505072443

$134.58

10b

Retainer 17mm long

505071812

$4.43

10c

Black, Handle

505070963

$35.35

10d

Retainer 23mm Long

505072133

$5.03

10f

Round Carbide Runner

860201043

$144.58

10g

Hex. Flange Elastic Nut M8

233281414

$1.14

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

210

Ski Axle

505073691

$12.58

300

Deep Black, LH Ski Leg +10

505074961

$212.28

300

Spartan Red, LH Ski Leg +10

505075429

$212.28

310

Deep Black, RH Ski Leg +10

505074962

$212.28

310

Spartan Red, RH Ski Leg +10

505075430

$212.28

320

Leg Bushing

505072690

Unavailable

330

Spacer

505074949

$2.03

400

LH Lower Suspension Arm

505074934

$193.82

410

RH Lower Suspension Arm

505074935

$193.82

420

Bushing

505072208

$3.14

430

Sleeve

505072209

$14.38

440

Wear Plate

505072634

$4.45

445

O-Ring

505072448

Unavailable

450

Screw Hex. M10 X 70

250001024

$1.74

455

Screw Hex. M10 X 70

250001024

$1.74

470

Wear Plate | Includes 470 to 470a

505074320

$13.80

470a

Insert

293450275

$9.89

480

Plate

505073844

$2.75

500

LH Upper Suspension Arm

505074760

$143.05

510

RH Upper Suspension Arm

505074761

$143.05

520

Bushing

505072250

$3.14

530

Sleeve

505072143

$8.62

540

Screw Hex. M10 X 60

250001023

$1.74

545

Hex. Flange Elastic Nut M10

250100165

$0.70

550

Screw Hex. M10 X 60

250001023

$1.74

555

Hex. Flange Elastic Nut M10

250100165

$0.70

660

Washer

503189564

$0.72

670

Washer

505072392

$4.65

680

Hex. Flange Elastic Nut M10

250100165

$0.70

685

Hex. Flange Elastic Nut M10

250100165

$0.70

690

O-Ring

505072448

Unavailable

800

Stabiliser

505074721

$66.12

810

Bushing

505072445

$5.71

830

Stabilisator Lever

505074327

$7.18

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

850

Hex. Flange Elastic Nut M6

233261466

$1.66

860

Sway Bar Double Joint Link

505072204

$19.20

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

880

Hex. Flange Elastic Nut M6

233261466

$1.66

1170

Hex. Flange Screw M8 X 58

250000824

$1.74

1200

Ball Joint

505074133

$51.51

1230

Washer

503192491

$4.38

1240

Hex Elastic Nut M12 X 1.25

232521464

$1.74

1300

Circlip

293370070

$7.02

1400

Upper Ball Joint

505072913

$69.97

1410

Snap Ring

293370098

$3.11

1600a

Washer

503192496

$0.75

1600b

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

1600c

Ski Stopper

505072594

$17.66

1600d

Elastic Flange Nut M8

233281466

$0.83

1600f

Spacer

505073892

$2.17
