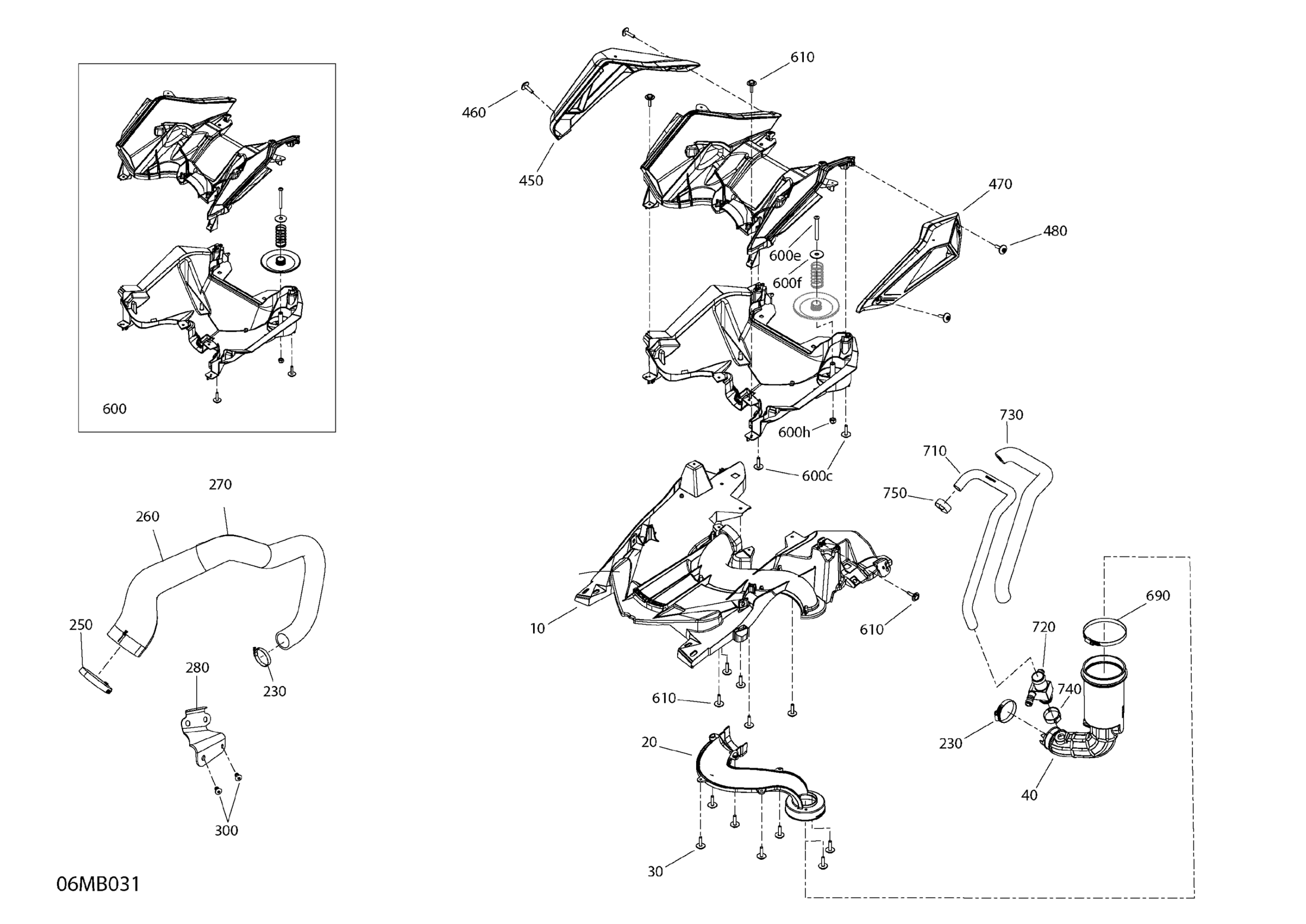

Ski-Doo GRAND TOURING 900 ACE TURBO - LTD - 2022 Engine - Air Intake Diagram

Description

Price

Multi Purpose Plate

508001077

$36.54

Tube In

508000887

$11.22

Screw M4 X 16

250000725

$3.30

Intake Silencer

508001183

$49.97

230

Mounting Clamp

293650303

$3.57

250

Mounting Clamp

293650302

$3.79

260

Inlet Hose

508001219

$89.52

270

Protector Tube

508001033

$12.21

280

Hose Support

508001180

$20.12

300

Avex Rivet

390909100

$0.28

450

RH Air Filter (Nitex Mesh)

508000906

$35.79

460

Screw M4 X 16

250000889

$2.82

470

LH Air Filter (Nitex Mesh)

508000905

$35.79

480

Screw M4 X 16

250000889

$2.82

600

Air Duct Ass'y | Includes 600 to 600j

508001078

$59.67

600c

Screw M4 X 16

250000725

$3.30

600e

Socket Head Screw M4 X 40

205444056

$2.00

600f

Flat Washer

224060201

$1.12

600h

Elastic Stop Nut M4

232541414

$0.55

610

Screw M4 X 16

250000725

$3.30

690

Norma Clamp

514052924

$12.15

710

Vent Hose

508000862

$14.90

720

Heated Breather

508000946

$25.34

730

Insulating Tube

508000907

$14.90

740

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

750

Tridon Gear Clamp

293650172

$3.07
