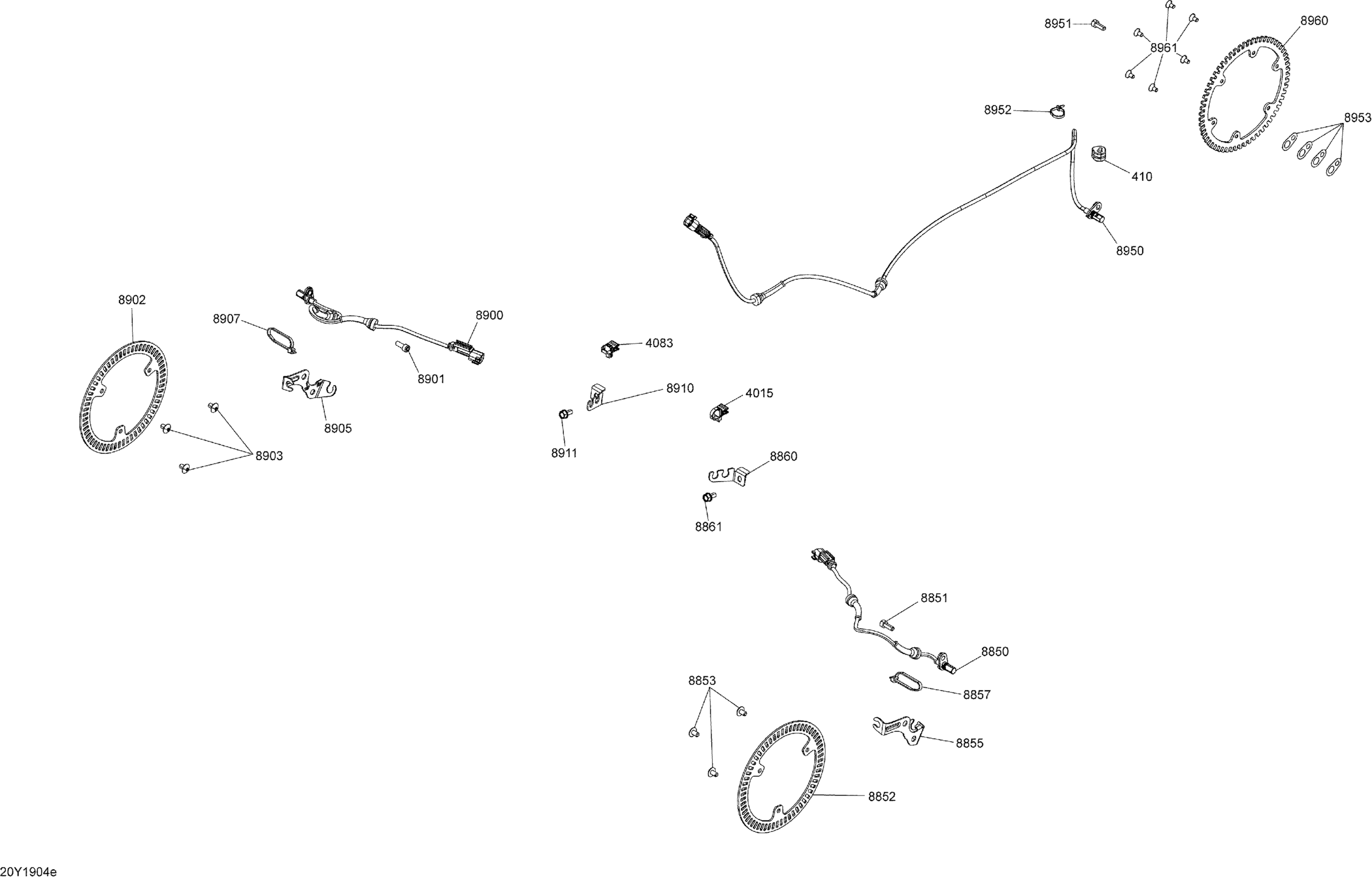

Can-Am F3 T SE6, 2019 Electrical System Suspension Diagram

Description

Price

410

Grommet

293720084

$6.00

4015

Tie-Rap Clip

710002896

$4.60

4083

Clip Tie-Rap | Package North Edition

710005037

$8.45

7950a

Bulb 12V 10W | Not Shown

415129261

$2.00

8850

Speed Sensor

710006981

$78.43

8851

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

8852

Front Sensor Wheel

705601512

$44.00

8853

Torx-truss M/s M6 X 10

250000995

$3.61

8855

LH Support Wire

710004860

$2.00

8857

Tie-Rap 180 mm

414115200

$0.09

8860

Speed Sensor Holder

710003156

$11.00

8861

Hex. Flange Screw M6 X 12

210261250

$1.56

8900

Speed Sensor

710006981

$78.43

8901

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

8902

Front Sensor Wheel

705601512

$44.00

8903

Torx-truss M/s M6 X 10

250000995

$3.61

8905

RH Support Wire

710004861

$2.00

8907

Tie-Rap 180 mm

414115200

$0.09

8910

Speed Sensor Holder

710003157

$11.00

8911

Hex. Flange Screw M6 X 12

210261250

$1.56

8950

Speed Sensor

710006982

$84.00

8951

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

8952

Tie Wrap 94 mm | 4X4

293750001

$0.83

8953

Shim

710002023

$3.00

8960

Sensor Wheel

705601372

$47.00

8961

Socket Head Screw M5 X 10

205851036

$7.00
