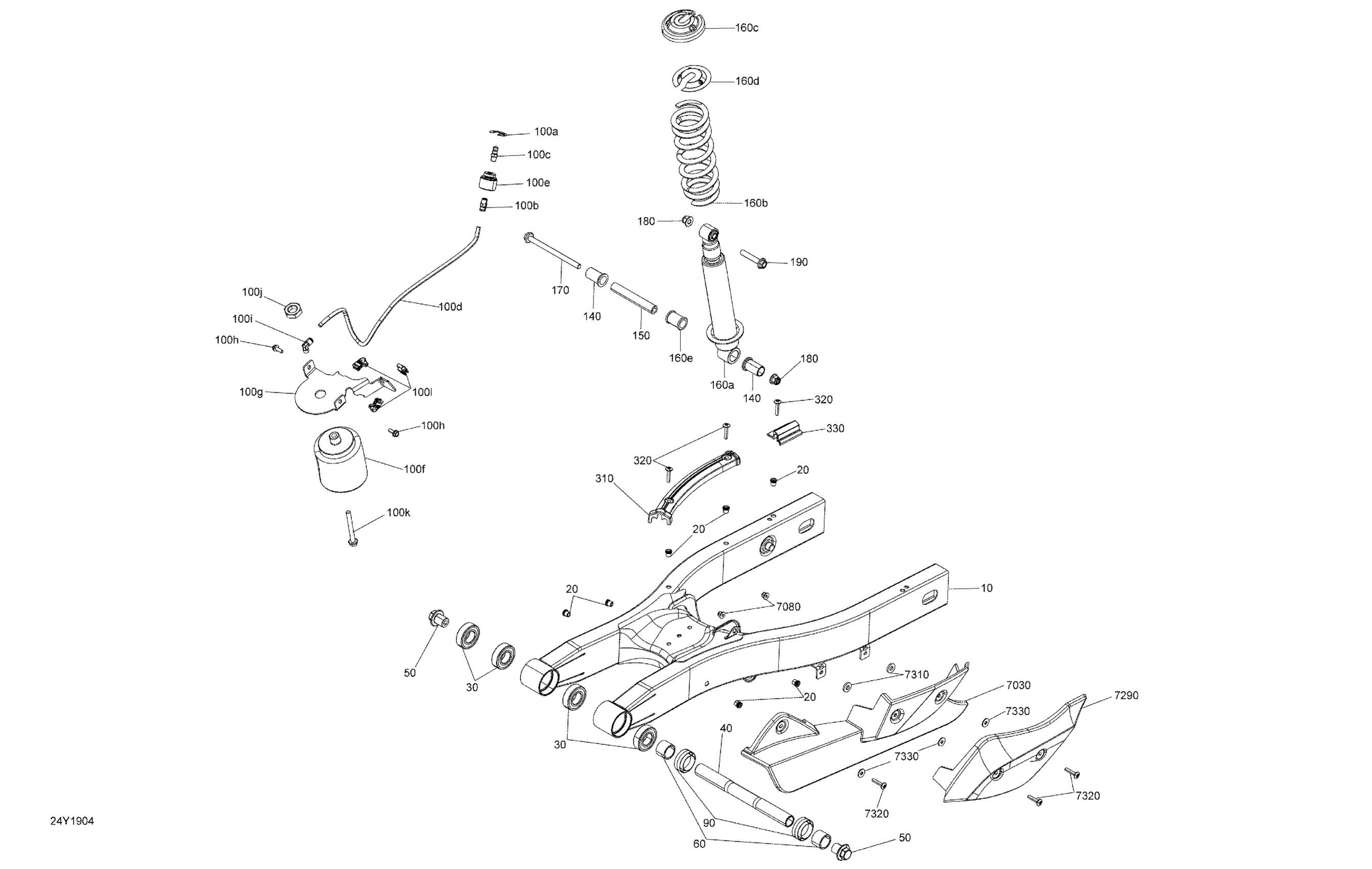

Can-Am F3 T SE6, 2019 Suspension, Rear Diagram

#

Description
Price

10

Swing Arm

706001574

$456.00

20

Insert

293450275

$9.89

30

Ball Bearing

293350115

$11.15

40

Swing Arm Axle

706001182

$94.00

50

Bolt M20

706001579

$17.00

60

Spacer

706001152

$9.00

90

Sleeve

706001366

$1.00

100a

Circlip

293370123

$3.00

100b

Connector

706000869

$33.05

100c

Air Valve

706002797

$15.22

100d

Hose

706002679

$9.00

100e

Pneumatic Connector

706002656

$19.00

100f

Air Damper Kit

219800175

$291.00

100g

Support Plate

706002456

$25.00

100h

Hex. Forming Screw M6 X 10

210261050

$1.42

100i

Elbow 90°

706001018

$29.00

100j

Jam Nut M20

250100119

$4.00

100k

Hex. Flange Screw M8 X 75

207687544

$7.23

100l

Clip Tie-Rap

710002899

$8.45

140

Spacer

706000410

$14.00

150

Shock Absorber Shaft

706000409

$50.00

160a

Shock

706001706

$137.00

160b

Spring

706001707

$50.00

160c

Spring Stopper

503193781

$18.00

160d

Cap

503193782

$10.00

160e

Urethane Cushion

503191609

$18.00

170

Hex. Flange Screw M10 X 140

230604034

$7.00

180

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

190

Hex. Flange Screw M10 X 55

207605554

$8.00

310

Protector

710004281

$26.00

320

Torx Truss Screw M6 X 30

250000843

$1.74

330

Hose Support

710002145

$8.00

7030

Lower Belt Guard

705002092

$49.00

7080

Hex. Flange Elastic Nut M6

233261494

$1.26

7290

Belt Guard Moulding

705009446

$36.00

7310

Adhesive Spacer

705003696

$4.00

7320

Stainless, Torx Screw M6 X 30

250000842

$1.74

7330

Stainless Steel Flat Washer

234062670

$1.74
