Description

Price

10

Carbon Black, LH Upper Suspension Arm

706204681

$159.00

20

Carbon Black RH Upper Arm | Model-Black

706201989

$159.00

30

Carbon Black, LH Lower Suspension Arm

706201990

$159.00

40

Carbon Black, RH Lower Suspension Arm

706201991

$159.00

50

Ball Joint

706202507

$59.97

60

Circlip

293370035

$2.55

70

Hex. Flange Screw M10 X 55

207605554

$8.00

80

Flange Elastic Nut M10

233201466

$2.63

90

Ball Joint

706202508

$42.00

100

Suspension Arm Bushing

706201519

$14.00

110

Hex. Flange Screw M10 X 70

207607056

$3.38

120

Flange Elastic Nut M10

233201466

$2.63

130a

Shock

706001697

$137.00

130b

Spring

706002451

$62.00

130c

Spring Stopper

706200881

$10.30

130d

Cap

706200785

$4.42

130e

Adjuster Ass'y

706002480

$56.00

140

Hex. Flange Screw M10 X 55

207605554

$8.00

150

Flange Elastic Nut M10

233201466

$2.63

160

Sway Bar

706202799

$91.00

170

Bushing

706201429

$10.00

190

Hex. Flange Screw M6 X 60

250000778

$3.61

200

Hex. Flange Elastic Nut M6

233261466

$1.66

210

Tie Rod

706200671

$21.00

220

Hex. Flange Screw M8 X 40

207684054

$2.06

230

Elastic Flange Nut M8

233281464

$0.83

240

LH Cable Cap

706203371

$14.00

250

RH Cable Cap

706203372

$14.00

260

Pop Rivet 3/16"

293150103

$0.54

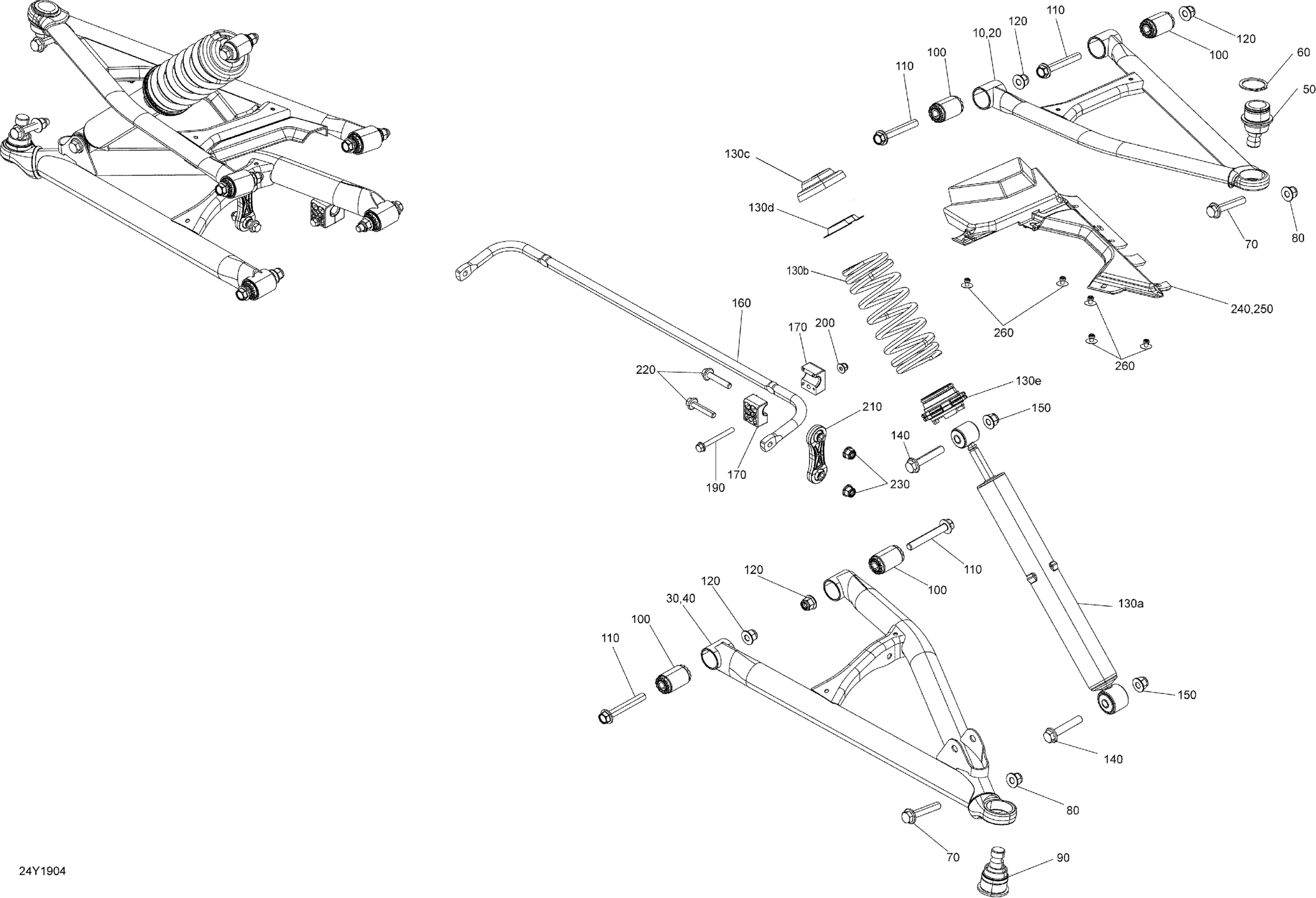

Can-Am F3 T SE6, 2019 Suspension, Front Diagram
