Description

Price

10

Carbon Black, LH Footpeg | Includes 10 to 10b

705008663

$51.00

15

Spacer Bushing

705008166

$6.00

20

Carbon Black, RH Footpeg | Includes 20 to 20b

705008160

$51.00

30

Race Orange, LH Support

705015872

$120.00

40

Race Orange, RH Support

705015870

$120.00

50

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$38.00

55

Allen Plastite Screw #12

250000099

$2.31

60

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$38.00

65

Allen Plastite Screw #12

250000099

$2.31

70

Carbon Black, RH Rear Footrest Support | Includes 70 to 70b

705009402

$410.00

80

Carbon Black, LH Rear Footrest Support | Includes 80 to 80b

705009401

$390.00

110

LH Outer Protective Film

705014176

$9.00

111

RH Outer Protective Film

705014177

$7.00

115

RH Inner Protective Film

705014175

$7.00

116

LH inner Protective Film

705014174

$7.00

150

Tube Support | Includes 150 to 150a

705008950

$23.00

160

LH Slider Outside | Includes 160 to 160b

705007798

$85.00

170

RH Slider Outside | Includes 170 to 170b

705008158

$85.00

200

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$38.00

205

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$38.00

210

Carbon Black, LH Footpeg | Includes 10 to 10b

705008663

$51.00

215

Carbon Black, RH Footpeg | Includes 20 to 20b

705008160

$51.00

220

Pivot Pin | Includes 220 to 220

705013628

$18.00

225

Allen Plastite Screw #12

250000099

$2.31

260

Rubber Stopper

708000759

$3.61

270

Socket Head Screw M8 X 25

250000830

$2.00

300

Spacer Bushing

705008166

$6.00

305

Black, LH Slider Clamp | Includes 305 to 305b

705013117

$40.00

307

Black, RH Slider Clamp | Includes 307 to 307b

705013120

$40.00

310

Hex. Cap Screw Full Thread M10 X 20

250000719

$6.00

320

Washer

506152582

$4.42

330

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

340

Socket Head Screw M8 X 25

250000830

$2.00

345

Back Plate

705008553

$25.00

370

Hex Screw Washer Head M8 X 20

207582054

$2.61

410

Spacer

705008219

$13.00

420

Hex. Flange Screw M6 X 60

250000778

$3.61

430

Hex. Flange Elastic Nut M6

233261466

$1.66

440

Washer M6

250200029

$1.83

480

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

490

Hex. Flange Elastic Nut M6

233261466

$1.66

530

Rubber Bumper

293830005

$5.33

540

Pivot Cap | Includes 540 to 540b

705010203

$28.00

700

LH Fairing Support

705008961

$16.00

705

Black, Flat Washer 6 mm

234061670

$1.00

710

Hex. Flange Screw M6 X 12

210261250

$1.56

720

Panel Nut M6 X 1.0

250100198

$1.73

800

RH Fairing Support

705008962

$16.00

805

Black, Flat Washer 6 mm

234061670

$1.00

810

Hex. Flange Screw M6 X 12

210261250

$1.56

820

Panel Nut M6 X 1.0

250100198

$1.73

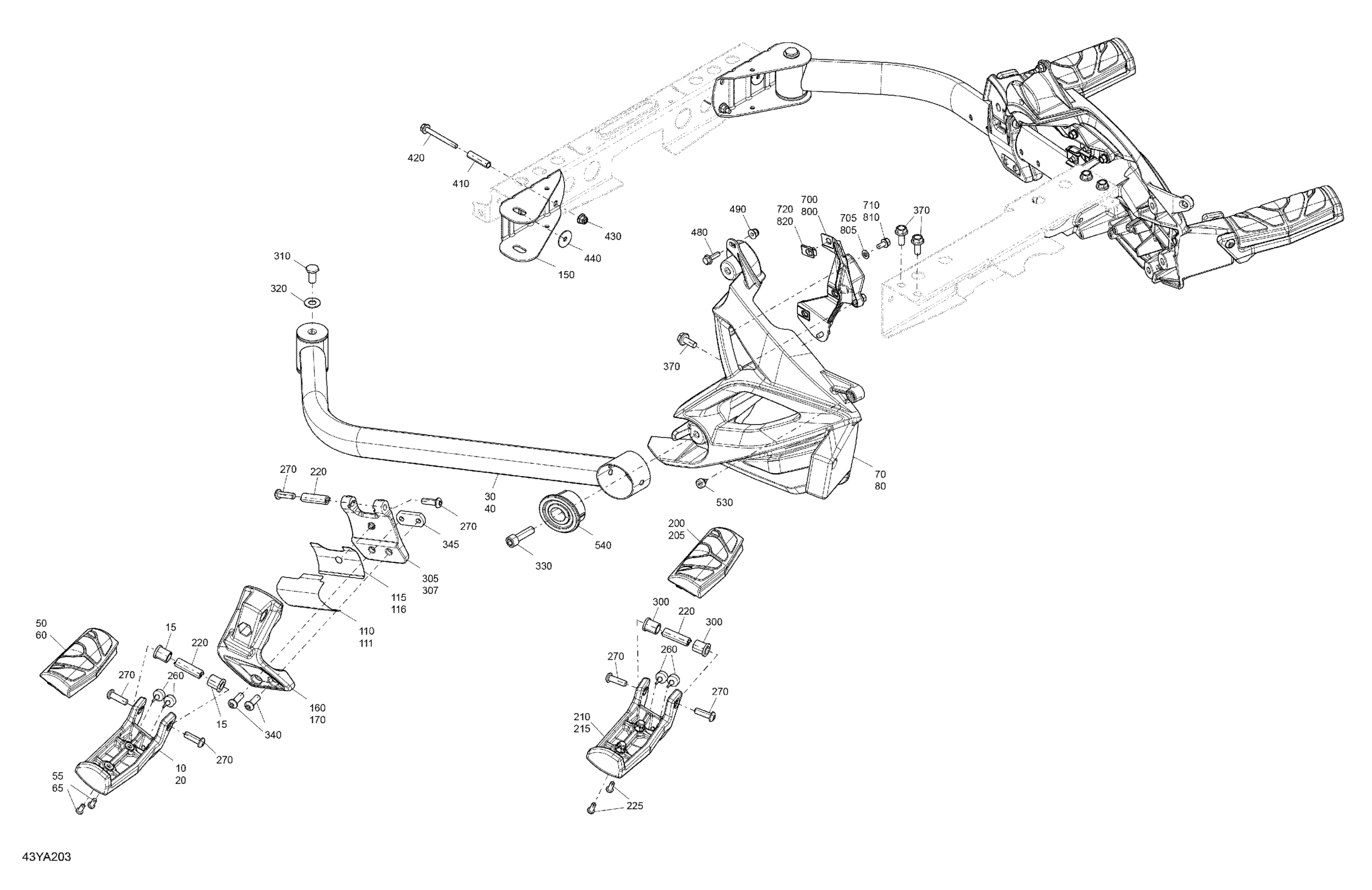

Can-Am F3 S - Special Series - Gravity Grey, 2021 Frame - Footrest Diagram
