Description

Price

10

Speedometer | Includes 10 to 10c

515177910

$615.35

10a

Speedometer Button | XTP

415129355

$13.94

10b

Gauge Ring

415129348

$11.71

10c

Lens | XTP

415129349

$23.05

20

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

600

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

610

Safety Nut (DESS Switch)

278002963

$2.72

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$64.58

1000

DC Outlet

710001248

$31.17

2000

Temperature Sensor This part replaces 420664508.

420664509

$142.28

2200

Air Temperature Sensor

515176366

$18.43

2205

Seal

508000769

$5.22

2210

Push Nut

389804300

$0.43

2400

LH Switch Housing

515178197

$259.20

2410

Housing Plate

515177147

$17.66

2420

Torx Screw

250000671

$0.83

2480

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

$10.60

2600

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

2610

Emergency Stop Switch Support

515177310

$8.60

2620

Torx Screw #8-18

250000263

$1.02

3000

WIRING HARNESS MAIN - Call your local BRP dealership

515178129

Unavailable

3010

Fusebox Support

515177925

$10.99

3011

Clip

270000141

$8.33

3012

Avdel Rivet 3/16"

293150037

$0.47

3013

Pop Rivet 3/16"

390402200

$0.26

3014

Tubing 6 Mm 3000Mm Long

219704425

$13.14

3019

Lock Washer 4 mm

234141601

$1.09

3020

Screw-Torx Button Head M4 X 8

250000741

$1.09

3030

Velcro

293740059

Unavailable

3050

Connector Plug

710004904

$8.55

3201

Pan Screw Forming, 7500C

250000690

$2.06

3210

Male Terminal Housing, 6 Circuits

515175662

$8.57

3220

Male Terminal Housing, 4 Circuits

515175846

$8.57

3250

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

$10.60

3500

Compressor Module | With Air Suspension

515177125

$507.66

3525

Tubing 6 Mm 3000Mm Long

219704425

$13.14

3600

Ground Wire

515177289

$25.35

4200

Start Cable

515176806

$35.35

4207

Tie Rap Mount (screwable)

515176795

$5.11

4210

Elastic Stop Nut M6

232561414

$1.55

4220

Flat Washer 6 mm

234061410

$1.04

4240

Elastic Stop Nut M6

232561414

$1.55

4320

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

4320a

Battery Bolt Kit

250000282

$2.95

4320

Battery | Includes 900 to 900a

515176151

$174.17

4320a

Battery Bolt Kit

515176081

$5.10

4350

Starter Relay

278003012

$35.07

4360

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

4365

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

4366

Lock Washer Serrated M6

250200041

$0.92

4520

Capacitor

515177272

$85.35

4524

Capacitor Support

515176607

$17.66

4525

Capacitor Harness

515176605

$31.51

4530

Socket Head Screw M10 X 32

250000462

$2.06

4535

Lock washer | Quest XT 650.

250200026

$1.83

4540

Capacitor Decal

516006206

$8.49

4550

Cap

515177193

$4.43

4700

Ground Wire

515176780

Unavailable

4705

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

4710

Lock Washer Serrated M6

250200041

$0.92

4800

Battery Cable

515176805

Unavailable

4810

Protection Cap

570151000

$18.43

4820

Elastic Stop Nut M6

232561414

$1.55

4830

Protector Cap

710000495

$10.14

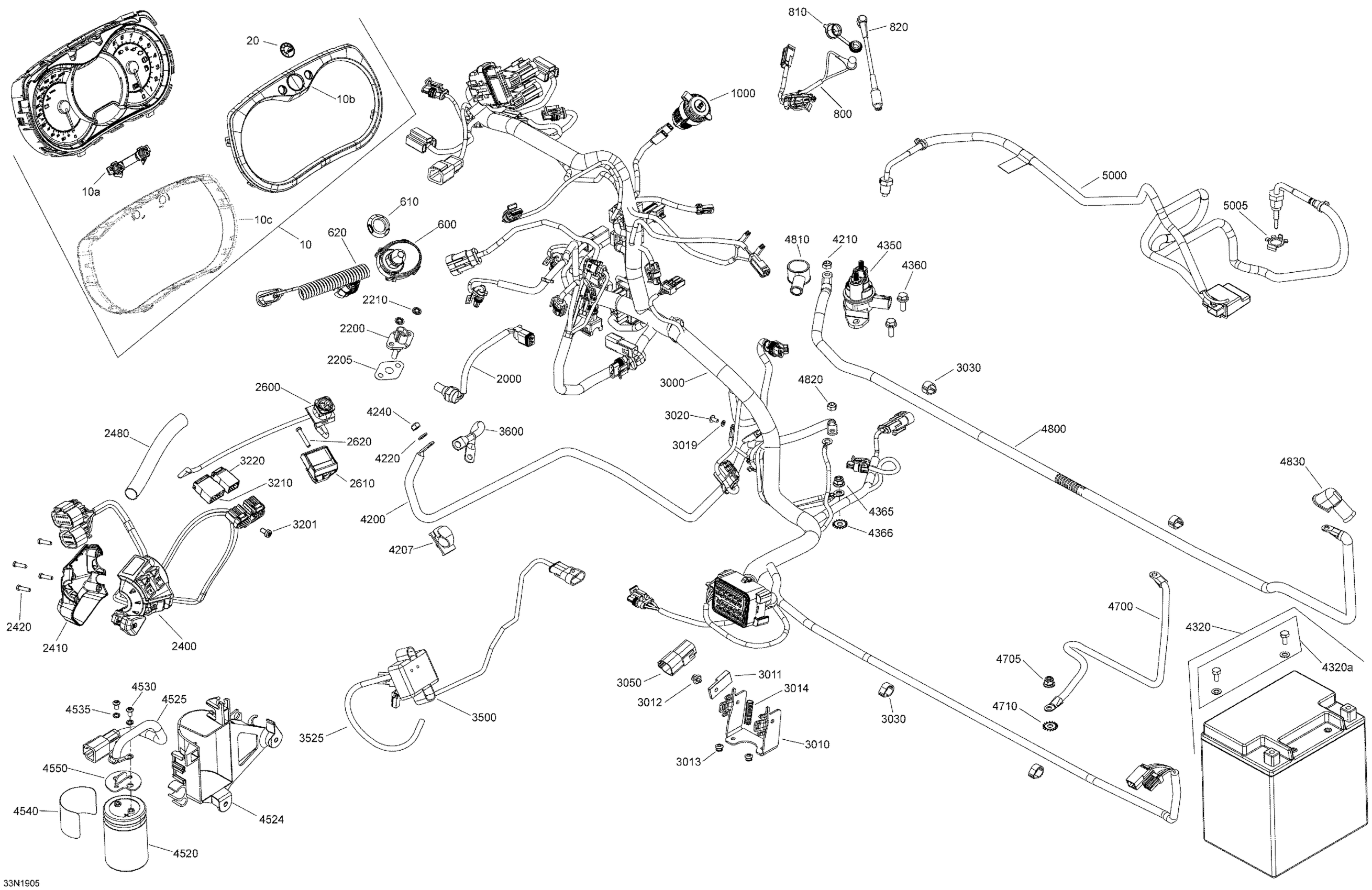

Ski-Doo EXPEDITION LE-SE 600HO E-TEC, 2019 Electrical - 600HO E-TEC Diagram

WIRING HARNESS MAIN - Call your local BRP dealership

Velcro

Ground Wire

Battery Cable
