Description

Price

110

Light Switch

710004492

$46.12

120

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

130

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

140

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

150

Switch 2X4

710005489

$32.28

160

Differential Lock Switch

710005470

$46.12

170

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

205

Specialized Nut

710007923

$2.05

210

Ignition Switch | Includes 210 to 210b

710007324

$63.05

210a

Blank Ignition Key

715900934

$17.66

211

Sticker | Not Shown

710008322

Unavailable

215

Key Switch Protector

710005739

$2.69

242

Screw PT Type K-50 X 16

250000959

$1.74

260

Junction Block Cover

710006707

$6.45

308

Black, Dart

293730006

$0.81

320

Throttle Pedal Harness

710006837

$226.12

321

Torx Screw K50 X 16

250000720

$1.39

350

Window/Wiper Harness

710004462

$84.99

361

Boot

710002743

$3.98

390

Wiper Harness

710004466

$32.28

396

Wiper Harness

710004942

$41.51

400

Wiring Harness Support

710006649

$22.28

410

Screw PT Type K-50 X 16

250000959

$1.74

420

Torx Screw K50 X 16

250000720

$1.39

430

Tuflok Plastic Rivet

293150230

$1.21

440

Panel Nut M6 X 1.0

250100198

$1.73

442

Washer M6

250200029

$1.83

444

Torx Screw M6 X 20

250000712

$1.74

450

Screw PT Type K-50 X 16

250000959

$1.74

600

Multifunction Compact Gauge

710007407

$355.35

700

RH Beam | Includes 710 to 710a

710008317

$189.20

710

LH Beam | Includes 700 to 700a

710008316

$189.20

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

715

Shoulder Bushing

710004749

$2.75

716

Grommet

709000582

$4.38

720

Handle

572106600

$9.31

722

Hex. Screw K40 X 45

250000718

$1.74

724

Spring

517168600

$6.91

724a

Spring

517168600

$6.91

725

Flat Washer 4 mm, Stainless

234042600

$0.92

760

Deep Black, LH Front Headlight Trim

710008973

$19.20

762

Screw PT Type K-50 X 16

250000959

$1.74

770

Deep Black, RH Front Headlight Trim

710008974

$19.20

1100

12V Power Outlet

710005374

$27.27

700a

Halogen Bulb H8 12V 35W Blue

715900653

$46.12

710a

Halogen Bulb H8 12V 35W Blue

715900653

$46.12

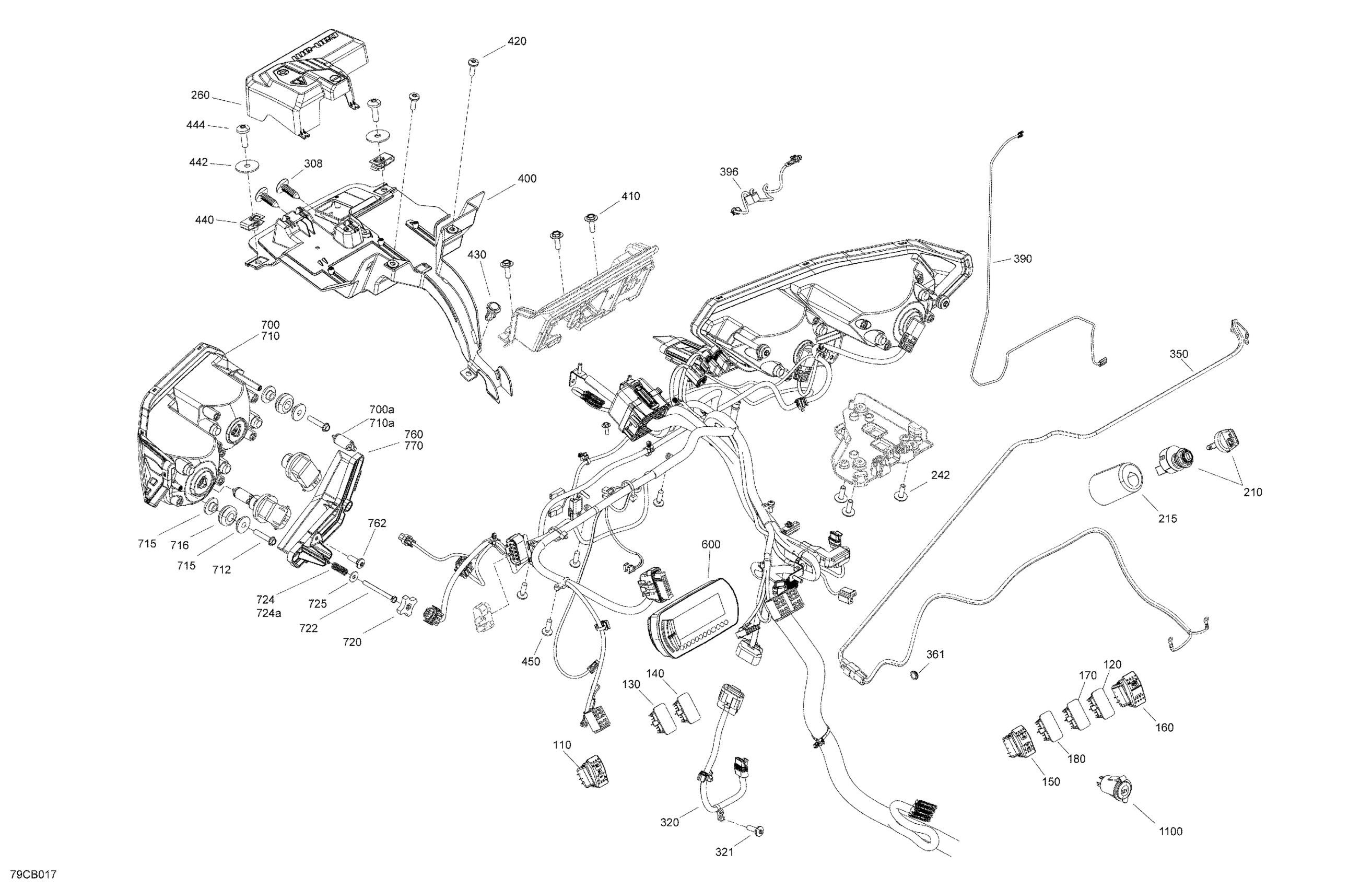

Can-Am Defender HD9 - XU - International, 2022 Electric - Front Section Diagram

Sticker | Not Shown
