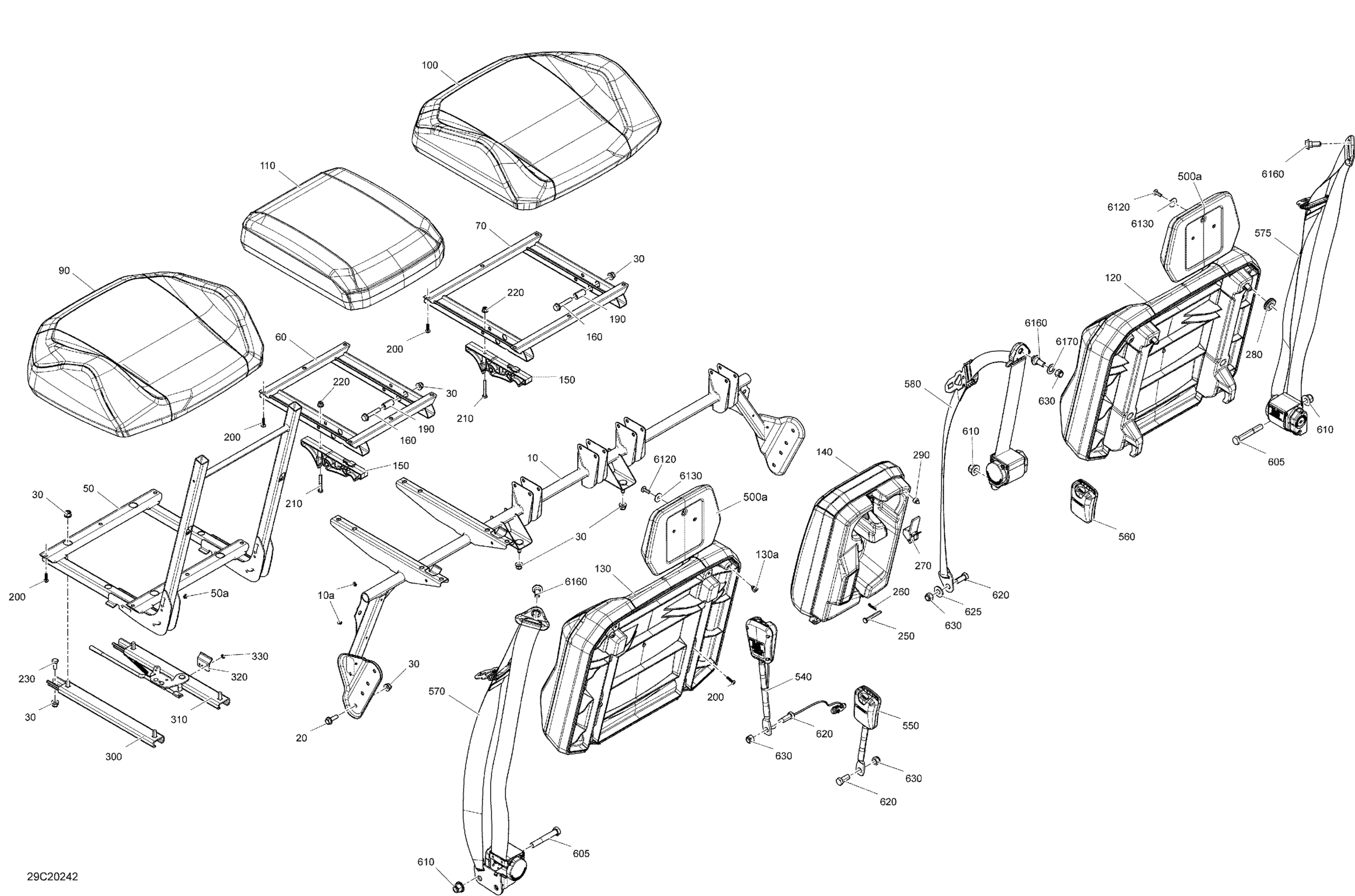

Can-Am Defender HD10 - XMR - 2020 Seat - XMR Diagram

#

Description
Price

10

Seat Member | Includes 10 to 10a8

703501076

$139.99

10a

Pop Rivet 3/16"

390402200

$0.30

20

Hex. Flange Screw M8 X 25

207682534

$1.03

30

Hex. Flange Elastic Nut M8

233281414

$1.31

50

Operator Seat Member | Includes 50 to 50a7

708001723

$296.24

50a

Pop Rivet 3/16"

390402200

$0.30

60

Mid Seat Member

708002815

$182.81

70

Passenger Seat Member

708002821

$182.81

90

LH Seat Base Ass'y

708002661

$253.70

90

LH Seat Base Ass'y | Model Manta Green

708003123

$223.85

100

RH Seat Base Ass'y

708002663

$253.70

100

RH Seat Base Ass'y | Model Manta Green

708003125

$223.85

110

Central Seat Base Ass'y

708002659

$253.70

110

Central Seat Base Ass'y | Model Manta Green

708003135

$223.85

120

Backrest Ass'y

708002667

$349.99

120

Backrest Ass'y | Model Manta Green

708003142

$349.99

130

Backrest Ass'y | Includes 130 to 130d

708002665

$349.99

130a

Rubber Bumper

293830005

$6.12

130

Backrest Ass'y | Model Manta Green

708003141

$349.99

130a

Rubber Bumper

293830005

$6.12

140

Backrest Ass'y | Model Manta Green

708003150

$349.99

140

Backrest Ass'y

708003159

$349.99

150

Seat Base Pivot

708002581

$9.33

160

Hex. Flange Screw M8 X 45

207684544

$3.57

190

Bushing

708001903

$2.85

200

Torx Screw Truss Head K50X20 T20

250000760

$2.00

210

Hex. Screw M6 X 45

207064544

$1.96

220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

230

Hex. Screw M8 X 20

207182044

$0.70

250

Pin

250400069

$2.88

260

Hairpin Cotter

269800431

$0.97

270

Latch

269501487

$14.90

280

Grommet

517303756

$3.61

290

Rubber Bumper

293830005

$6.12

300

LH Rail

708000848

$52.99

310

RH Rail | Package XT, Cab

708002001

$35.99

320

Seat Stopper

708003672

$2.59

330

Pop Rivet 3/16"

390402200

$0.30

500a

Headrest

708002853

$52.21

540

Driver Buckle

708002331

$70.99

550

Middle Buckle

708003163

$60.42

560

Passenger Buckle

708002329

$60.42

570

LH Safety Belt

708003082

$219.37

575

RH Safety Belt

708003200

$219.37

580

Central Safety Belt

708003688

$219.37

605

Hex. Screw M12 X 80

207028046

$3.73

610

Elastic Flange Nut M12

233221416

$2.67

620

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.79

625

Flat Washer M12

250200102

$2.00

630

Lock Nut Nylon 7/16

250100183

$1.88

6120

Torx Screw M6 X 20

250000722

$1.54

6130

Flat Washer M6.6 X 22

250200162

$2.19

6160

Safety Belt Screw

708000890

$3.79

6170

Position Washer

708000891

$0.97
