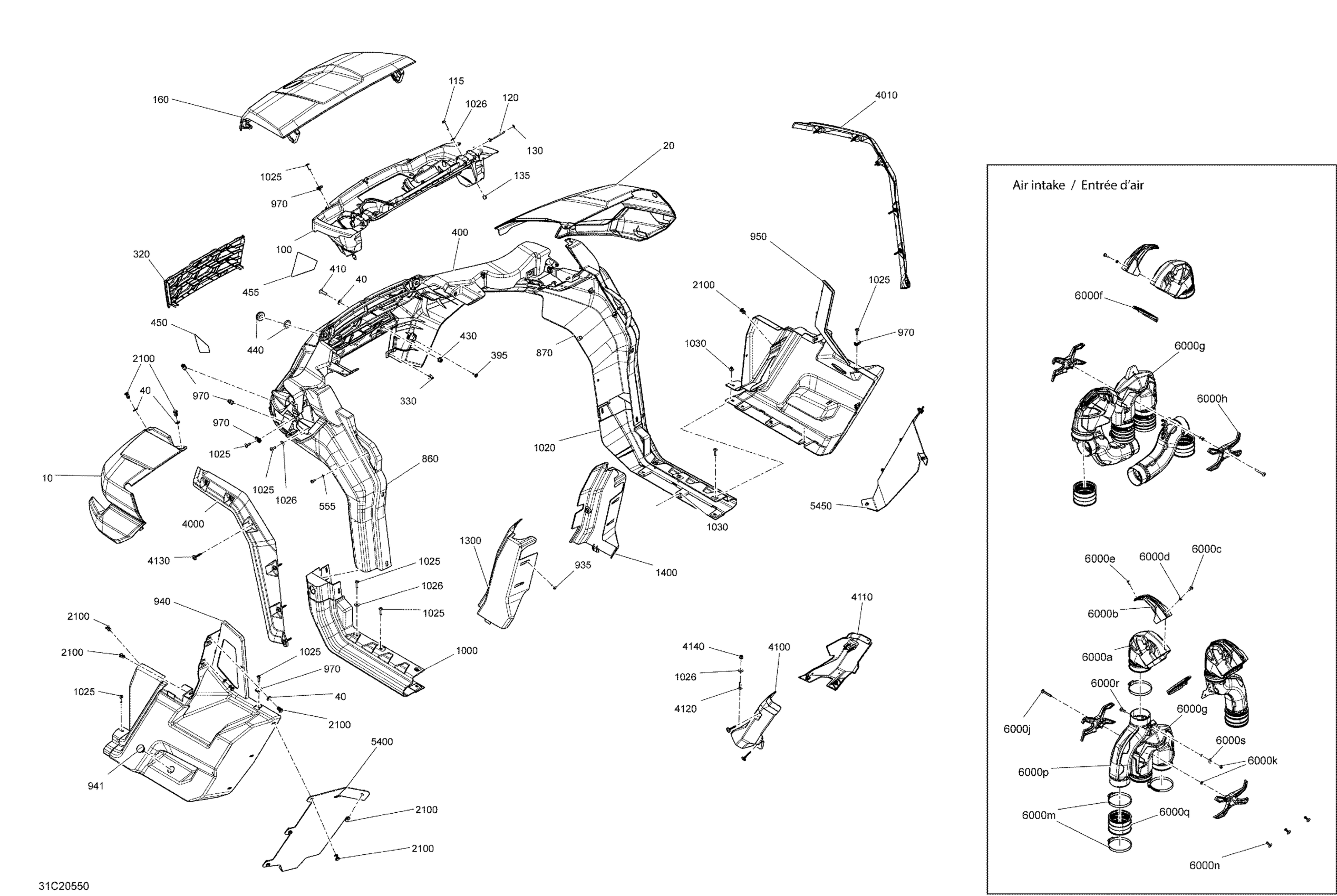

Can-Am Defender HD10 - XMR - 2020 Body - Camo - XMR Diagram

#

Description
Price

10

Break Up Country, LH Front Fender | Camo Model

705017041

$184.30

20

Break Up Country, RH Front Fender | Camo Model

705017040

$184.30

40

Washer

503192494

$3.01

100

Multi Purpose Support

705013766

$39.52

115

Hex. Flange Screw M6 X 30 | International

210263050

$1.87

120

Hex. Flange Screw M6 X 75

207667554

$4.15

130

Push Nut

732610072

$1.97

135

Bushing

293900125

$2.69

160

Break Up Country, Front Hood

705013726

$462.66

320

Grille

705013590

$23.85

330

Clip

517306478

$1.03

395

Screw M4 X 16

250000725

$3.30

400

Deep Black, Front Fascia

705013591

$206.69

410

Torx Screw M8 X 30

250000886

$2.00

430

Hex. Flange Elastic Nut M8

233281414

$1.31

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$10.82

455

RH Front Reflector

704905073

$10.82

555

Flat Washer M5

234051670

$2.00

860

LH Front Lateral Panel

705008152

$55.94

870

RH Front Lateral Panel

705008153

$55.94

935

Torx Screw K50 X 16

250000720

$1.60

940

Deep Black, LH Rear Body Panel

705013658

$99.22

941

Black, Nylon Cap

414916600

$4.19

950

Deep Black, RH Rear Body Panel

705013659

$99.22

970

Panel Nut M6 X 1.0

250100198

$1.99

1000

Deep Black, LH Central Panel

705019037

$64.15

1020

Deep Black, RH Central Panel

705019038

$67.13

1025

Torx Truss Screw M6 X 25

250000807

$2.00

1026

Stainless Steel Flat Washer

234062670

$2.00

1030

Pop Rivet 3/16”

293150108

$1.19

1300

LH Rear Cage Cover Kit

715003564

$73.85

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$73.85

2100

Tuflok Plastic Rivet

293150230

$1.39

4000

LH Front Fender Flare

705011518

$22.36

4010

RH Front Fender Flare

705011519

$22.36

4020

Torx Truss Screw Head PT.K50 X 40

250000840

$1.79

4100

LH Central Fender Flare

705011522

$11.51

4110

RH Center Fender Flare

705011523

$13.36

4120

Torx Screw M6 X 25

250000758

$2.00

4125

Stainless Steel Flat Washer

234062670

$2.00

4130

Torx Truss Screw Head PT.K50 X 40

250000840

$1.79

4140

Hex. Flange Elastic Nut M6

233261494

$1.45

5400

LH Rear Deflector

705016336

$46.24

5450

RH Rear Deflector

705016337

$46.24

6000a

Air Inlet

706600236

$49.22

6000b

Black, Cap

707001523

$5.52

6000c

Torx Screw M5 X 20

250000792

$2.00

6000d

Elastic Flange Nut M5

233251494

$2.00

6000e

Torx Truss Screw K40 X 12

250000577

$2.00

6000f

Grate

706600221

$20.12

6000g

CVT Outlet

706600205

$38.78

6000h

Trim

705012555

$9.85

6000j

Torx Screw M6 X 45

250000647

$5.46

6000k

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.55

6000m

Clamp

293650272

$18.63

6000n

Pop Rivet 3/16”

293150101

$2.00

6000p

Intake Tube

706600277

$63.40

6000q

Flexible Joint

706600278

$26.09

6000r

Torx Screw M6 X 20

250000712

$2.00

6000s

Flat washer M6

250200164

$0.96
