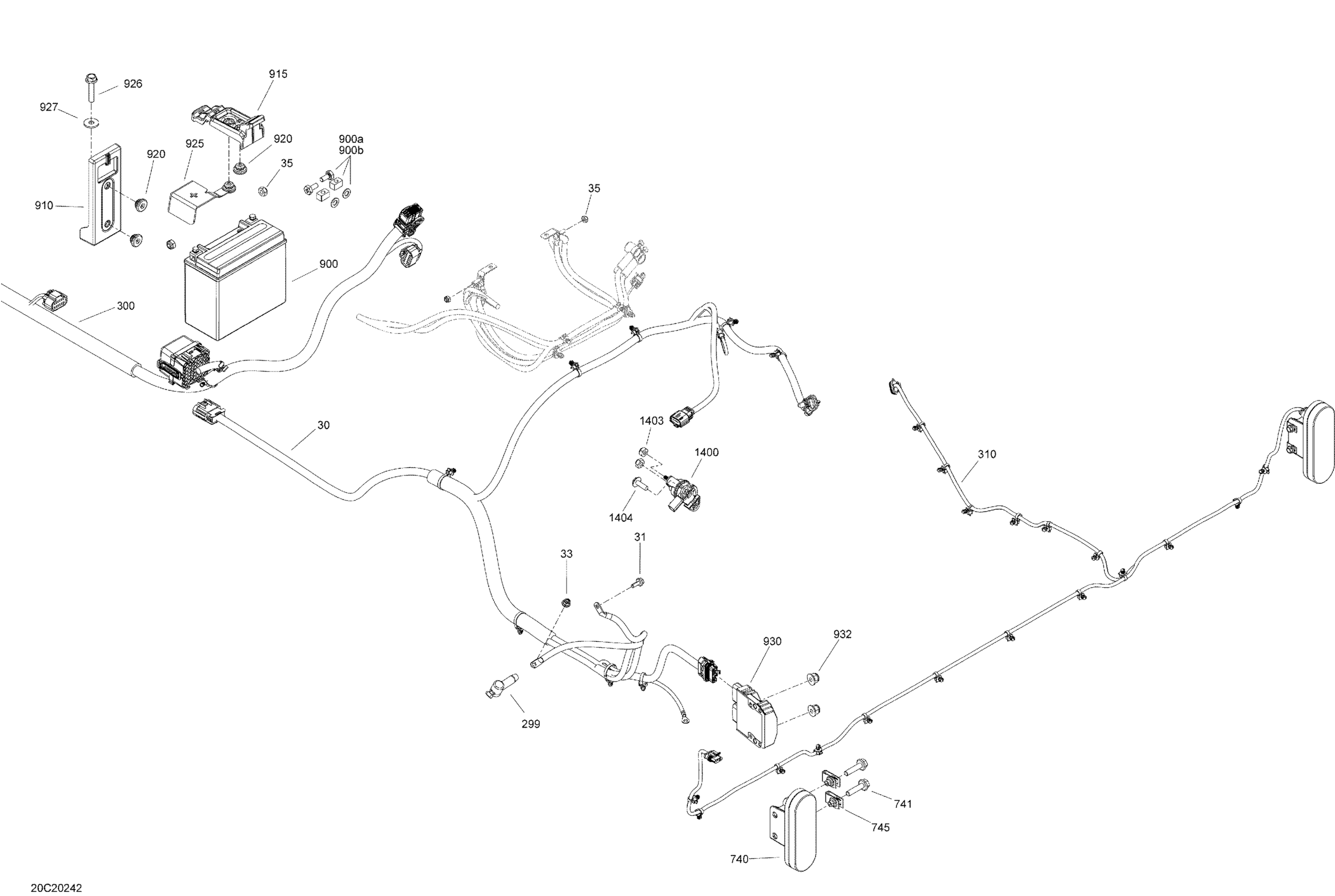

Can-Am Defender HD10 - XMR - 2020 Electric - System - Rear Section Diagram

Description

Price

Voltage Regulator Wiring Harness

710006497

$161.51

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Elastic Stop Nut M6

232561414

$1.55

Hex. Flange Screw M6 X 20

207662054

$0.83

299

Cap Battery Cable

710007033

$6.45

300

Main Wiring Harness | Includes 300 to 300c

710006750

$876.89

310

Taillight Wiring Harness

710006499

$96.89

740

Tail Light

710004497

$110.74

741

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

745

Panel Nut M6 X 1.0

250100198

$1.73

900

Battery | Includes 900 to 900a

515176151

$174.17

900a

Battery Bolt Kit

250000282

$2.95

900b

Battery Bolt Kit

515176081

$5.10

910

Fixation Plate

710004788

$9.77

915

Fixation Plate

710004789

$6.92

920

Stopper Rubber

705014429

$6.09

925

Battery Cable Cap

710006471

$2.75

926

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

927

Flat Washer 6 mm

234062410

$0.64

930

Voltage Regulator

710005842

$159.87

932

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1400

Starter Relay

278003012

$35.07

1403

Elastic Stop Nut M6, Brass

232561200

$3.51

1404

Hex. Plastic Screw M4.8 X 16

243141630

$1.74
