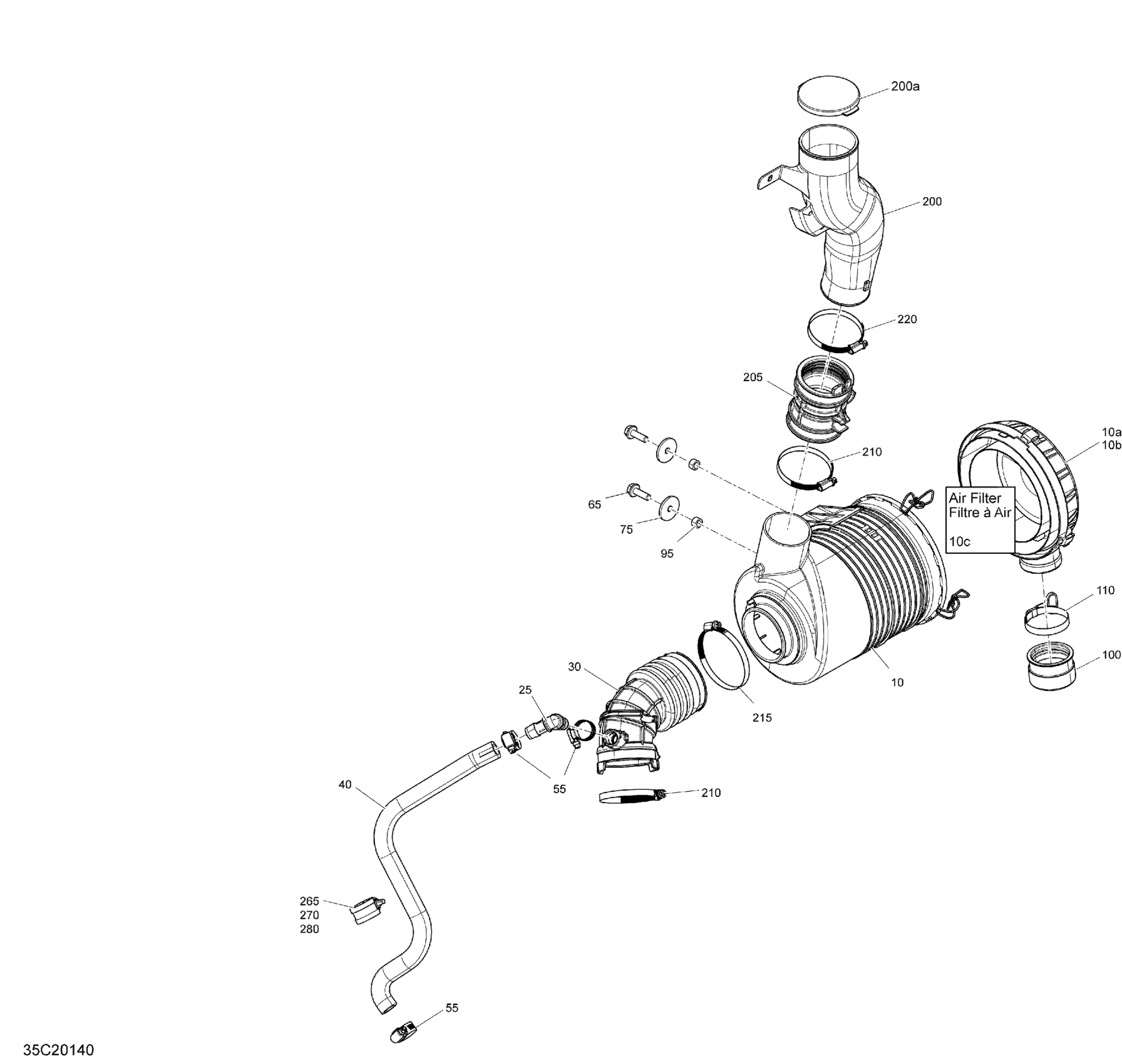

Can-Am Defender HD10 - XMR - 2020 Engine - Air Intake Diagram

Description

Price

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$166.39

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$84.30

10b

O-Ring

715900514

$17.13

10c

Air Filter

715900394

$49.22

Elbow Fitting 90

293710155

$7.72

Intake Duct

707800834

$25.34

Crankcase Formed Hose

707800868

$33.55

Tridon Gear Clamp

293650173

$2.82

Hex. Flange Screw M8 X 25

207682534

$1.03

Flat Washer M8

250200158

$2.00

Bushing

277000980

$14.27

100

Vacuator Cap

707800769

$34.30

110

Turn Key Clamp

293650269

$7.21

200

Air Inlet Tube | Includes 600 to 600b

706600280

$48.48

200a

Cap

293000123

$7.39

205

Flexible Joint

706600203

$24.60

210

Norma Clamp

293650091

$10.54

215

Norma Clamp

293650096

$3.00

220

Norma Clamp

293650091

$10.54

265

Hose Anchor

709200036

$10.51

270

Hex. Flange Screw M6 X 25

207662544

$0.61

280

Hex. Flange Nut M6

233061414

$1.54
