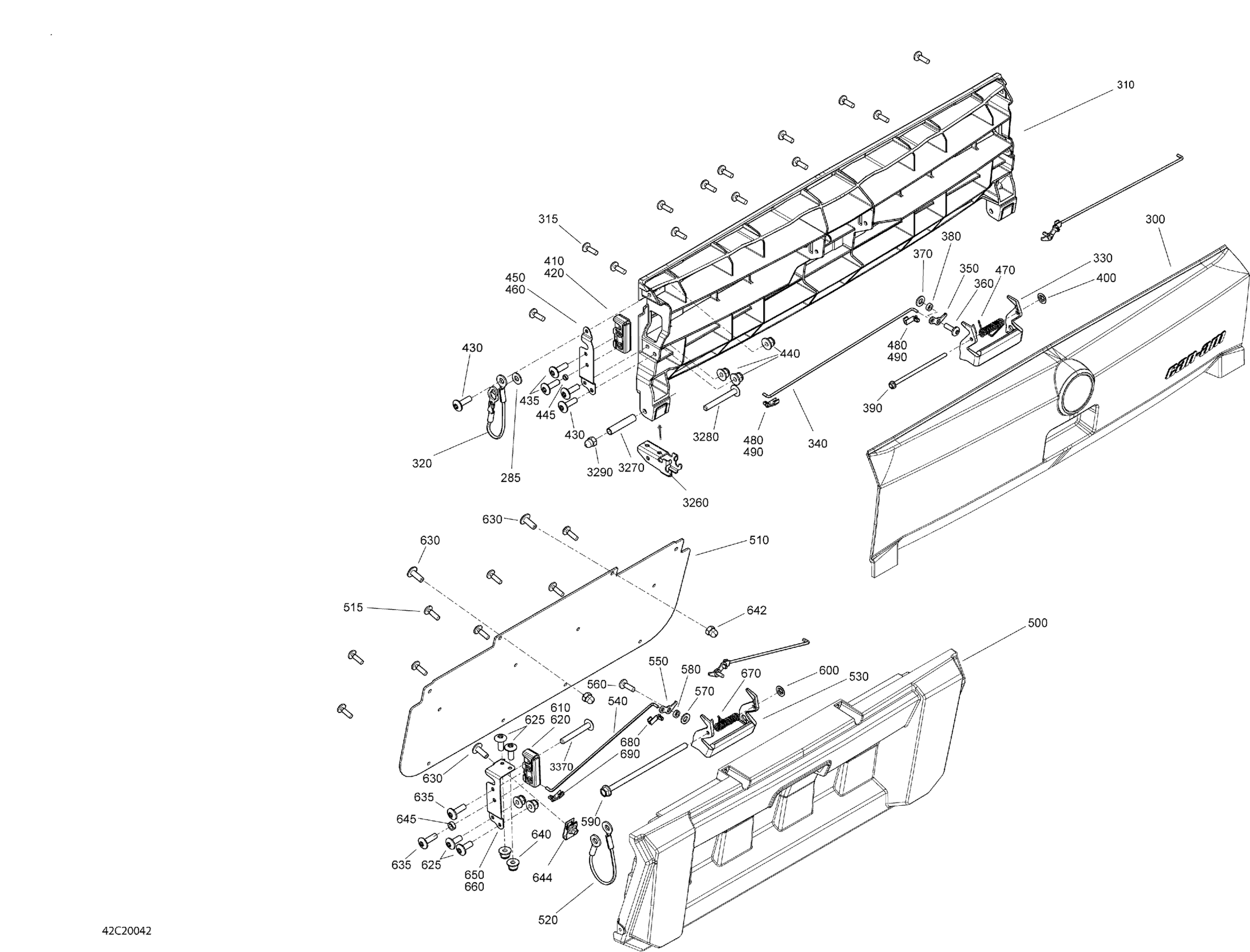

Can-Am Commander MAX 1000R EFI - 2020 Rear Cargo Box - Door Diagram

#

Description
Price

285

Flat Washer

224061121

$0.51

300

Boreal Green, Top Panel | Timeless Black

708302766

$359.67

300

Asphalt Grey, Tailgate | Package LTD

708303146

$359.67

310

Inside Top Pannel

708300053

$123.85

315

Torx Screw K50 X 16

250000720

$1.60

320

Upper Retainer Cable

708300763

$29.82

330

Handle

708300398

$12.30

340

Top Rod

708300160

$2.52

350

Activator

708300184

$7.64

360

Torx Screw K50 X 16

250000720

$1.60

370

Flat Washer 6 mm

234061410

$1.19

380

Bushing

708300365

$5.30

390

Hex. Flange Screw M6 X 130

230663084

$3.18

400

Push Nut

732610072

$1.97

410

LH Latch

708300162

$19.37

420

RH Latch

708300201

$19.37

430

Torx Screw M6 X 20

250000722

$1.54

435

Torx Screw M6 X 20

250000722

$1.54

440

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

445

Bushing

708300737

$4.43

450

LH Upper Support

708300359

$33.55

460

RH Upper Support

708300360

$8.46

470

Spring

708300219

$3.54

480

LH Tie Rod Clip

708300182

$2.13

490

RH Tie Rod Clip

708300202

$2.13

500

Outside Bottom Pannel Ass'y

715002365

$139.52

510

INSIDE BOTTOM PANNEL - Call your local BRP dealership

708300073

Unavailable

515

Torx Screw K50 X 16

250000720

$1.60

520

Lower Retainer Cable

708300762

$13.99

530

Handle

708300398

$12.30

540

Lower Bottom Rod

708300164

$2.52

550

Activator

708300184

$7.64

560

Torx Screw K50 X 16

250000720

$1.60

570

Flat Washer 6 mm

234061410

$1.19

580

Bushing

708300365

$5.30

590

Hex. Flange Screw M6 X 130

230663084

$3.18

600

Push Nut

732610072

$1.97

610

LH Latch

708300162

$19.37

620

RH Latch

708300201

$19.37

625

Torx Truss Screw M6 X 16

250000721

$1.60

630

Torx Truss Screw M6 X 16

250000721

$1.60

635

Torx Screw M6 X 20

250000722

$1.54

640

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

642

Domed Nut M6

232361493

$2.03

644

Panel Nut M6 X 1.0

250100198

$1.99

645

Bushing

708300737

$4.43

650

LH Lower Support

708300361

$8.84

660

RH Lower Support

708300362

$7.93

670

Spring

708300219

$3.54

680

LH Tie Rod Clip

708300182

$2.13

690

RH Tie Rod Clip

708300202

$2.13

3260

Upper Pivot Support

708300345

$3.54

3270

Bushing

708300735

$10.82

3280

Torx Truss Screw M6 X 50

250000749

$3.01

3290

Domed Nut M6

232361493

$2.03

3370

Torx Screw M6 X 45

250000748

$1.79
