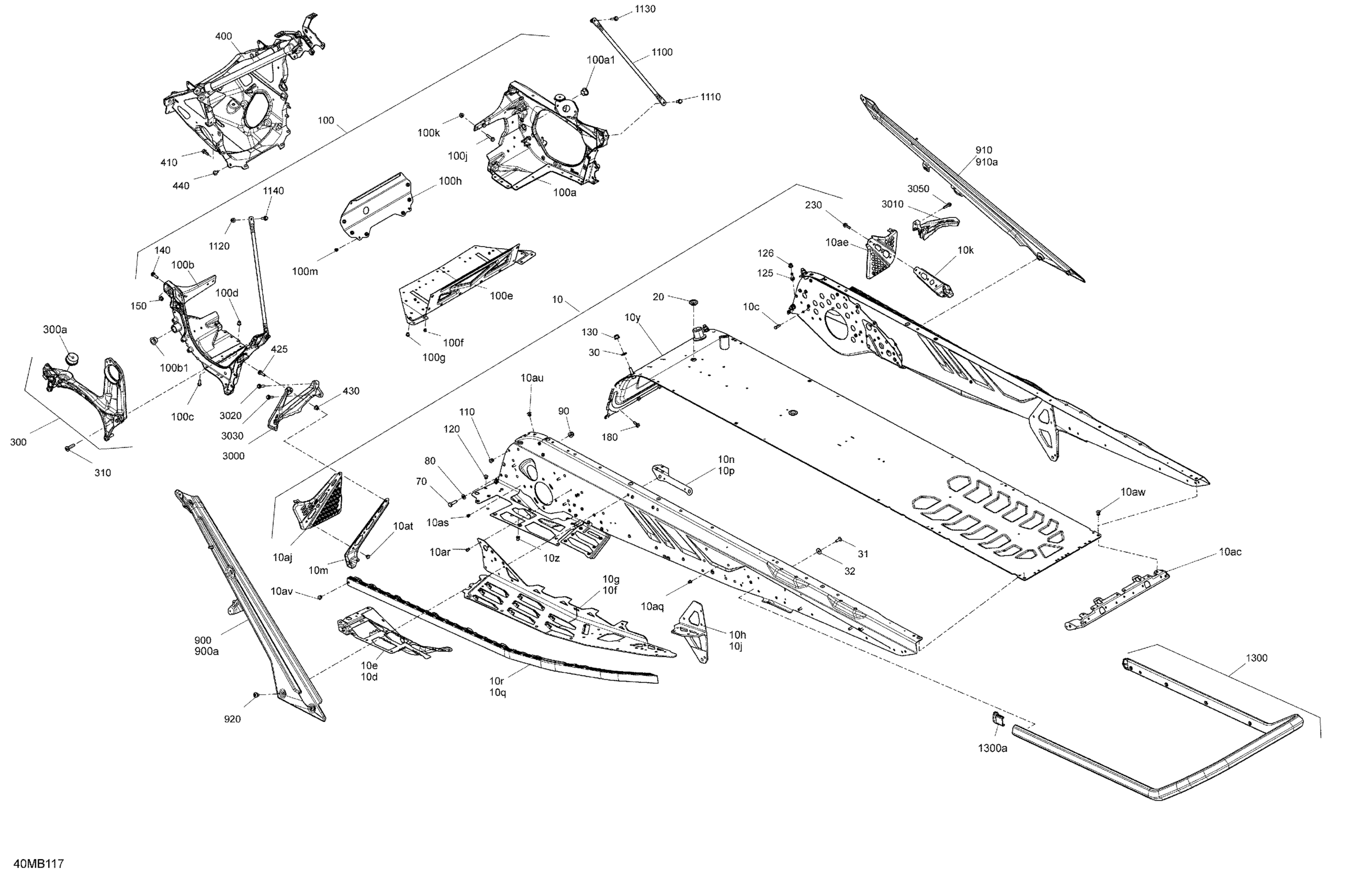

Ski-Doo BACKCOUNTRY 850 E-TEC - XRS - 154 Europe, 2022 Frame - System Diagram

#

Description
Price

10

Deep Black, Tunnel Chassis Module 154 | Deep Black

518333174

Unavailable

10

Deep Black, Tunnel Chassis Module 154 | Liquid Titan

518333177

Unavailable

10c

Clinch Stud M6 X 20

250300027

$1.92

10d

RH Footrest Reinforcement

518332578

$81.51

10e

LH Footrest Reinforcement

518332577

$81.51

10f

RH Footrest

518332922

$39.97

10g

LH Footrest

518332923

$39.97

10h

LH Rear Suspension Support

518330682

$43.05

10j

RH Rear Suspension Support

518334395

$38.43

10k

Stirrup Reinforcement

518331253

$18.43

10m

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10n

LH Under Chassis Reinforcement

518331744

$16.12

10p

RH Under Chassis Reinforcement

518331745

$16.89

10q

RH Roller

518329023

$180.74

10r

LH Roller

518329024

$180.74

10y

Radiator Tunnel 154

518335129

$692.28

10z

Clinch Nut M6 Hexsert

605636003

$4.12

10ac

Rear Cap

518328990

$20.74

10ae

RH Footrest

518328460

$38.43

10aj

LH Footrest

518333007

$38.43

10aq

Avex Rivet

390909100

$0.29

10ar

Rivet Hucklok

293150163

$2.82

10as

Avex Rivet

390909200

$0.29

10at

Hemlock Rivet, 6.5 mm

293150096

$3.17

10au

Hemlock Rivet, 6.5 mm

293150119

$4.00

10av

Hemlock Rivet, 6.4 mm

293150174

$6.43

10aw

Ornit Rivet 6,5 X 14.5

293150266

$1.94

20

Black, Plug

293730052

$6.37

30

Conical Spring Washer M8

250200146

$0.83

31

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

32

Flat Washer

224061201

$1.11

70

Hex Screw M8 X 30

250000942

$0.92

80

Flat Washer 8 mm

234081410

$0.69

90

Hex. Flange Elastic Nut M8

233281414

$1.14

100

Engine Chassis Module Ass'y | Includes 100 to 100n

518333108

$567.66

100a

RH Member Ass'y | Includes 100a to 100a3

518332687

$208.43

100a1

Leg Bushing

505072690

Unavailable

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

100b1

Leg Bushing

505072690

Unavailable

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

100d

Collar Huck Magna-Grip 6.4

293150149

$0.37

100e

Bottom Plate

518332716

$34.58

100f

Avex Rivet

390909100

$0.29

100g

Insert M5 X 0.8

293450268

$1.95

100h

Front Member

518330100

$56.12

100j

Hex. Flange Screw M6 X 20

207662046

$1.74

100k

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

100m

Avex Rivet

390909100

$0.29

110

Ornit Rivet 6,5 X 14.5

293150266

$1.94

120

Hemlock Rivet, 6.4 mm

293150174

$6.43

125

Hex. Flange Screw M6 X 20

207662044

$1.66

126

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

130

Hex. Flange Elastic Nut M8

233281414

$1.14

140

Hex. Flange Screw M6 X 20

207662046

$1.74

150

Elastic Flange Nut M6 X 1.0

233261416

$1.74

180

Hex. Flange Screw M6 X 16

207661646

$1.00

230

Hex. Flange Screw M6 X 20

207562056

$1.74

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$270.74

300a

Vibration Damper

512061516

$57.66

310

Screw-Pan HD.Torx M8X30

250001060

$0.65

400

Chassis Suspension Module

518334459

$653.05

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

425

Hex. Flange Screw M6 x 35

207663546

$0.95

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

440

Hex. Flange Screw M6 X 16

207661646

$1.00

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$108.43

900a

LH Rear Diagonal Cross Member

518333356

$108.43

910

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910a

518330063

$108.43

910a

RH Rear Diagonal Cross Member

518332559

$108.43

920

Pan Head Torx Screw M8 X 12

250000887

$1.56

1100

Upper Colomn Support

518329974

$20.74

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

1120

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1130

Hex. Flange Screw M6 X 25

207662556

$3.61

1140

Hex. Flange Screw M6 X 20

207662046

$1.74

1300

Rear Bumper | Includes 1300 to 1300b

518328501

$159.99

1300a

Cap

520001612

$8.62

3000

Black Toe-hold

518330358

$23.05

3010

Toe Hold

518329134

$16.12

3020

Hex. Flange Screw M6 X 25

250000793

$1.74

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

3050

Hex Screw Forming M6 x 25

250001124

$1.64
