Description

Price

10

Cargo Box Inside Kit

715006551

$424.58

30

LH Panel Exterior

708304328

$175.35

40

RH Panel

708302579

$175.35

50

Hyper Silver, LH Open Carrier Trim | Includes 50 to 50a

708303597

$263.05

60

Hyper Silver, RH Open Carrier Trim | Includes 60 to 60a

708303607

$263.05

70

Tuflok Plastic Rivet

293150230

$1.21

80

Torx Screw M6 X 25 | XT Models

250000728

$3.61

90

Flat Washer M6.6 X 22

250200162

$1.91

100

Carriage Bolt M8 X 60

207786044

$10.54

110

Flat Washer 8 mm

234082410

$1.11

120

Hex. Flange Elastic Nut M8

233281414

$1.14

180

Panel Nut M6 X 1.0

250100224

$1.70

190

Panel Nut M6 X 1.0

250100198

$1.73

200

Deflector

708302584

$15.22

210

Pop Rivet 3/16”

293150108

$1.23

220

Washer

517124300

$0.16

300

Outside Tailgate

708301227

$115.35

305

Panel Cargo Box Ass'y | Includes 305 to 305f

708302914

$341.51

305b

Handle Support

708302913

$27.66

305c

Handle

708302911

$27.66

305d

Torx Screw Truss Head K50X20 T20

250000760

$1.74

305e

Washer M5

250200025

$0.61

340

Handle Rod

708301500

$6.45

350

Bushing Hinge

708304564

$3.08

360

Washer

708301653

$2.31

370

Hairpin Cotter

269800431

$1.00

380

Spring

705009468

$4.62

390

Spring

705009470

$12.91

400

Spring

705009471

$12.91

430

LH Tailgate Support

708304219

$23.05

440

RH Tailgate Support

708304221

$27.66

450

Hex. Flange Screw M6 X 35

207663554

$1.74

460

Hex. Flange Screw M6 X 25

207662554

$1.48

470

Flat Washer M6.6 X 22

250200162

$1.91

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

490

Bushing

708300737

$4.62

500

Cable

708301491

$32.28

540

Latch Stopper

708304062

$9.29

590

Hex. Flange Screw M6 X 25

207662554

$1.48

600

Hex. Flange Screw M6 X 35

207663554

$1.74

610

Flat Washer

224061121

$0.44

620

Bushing

708300737

$4.62

650

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

700

Torx Screw Truss Head K50X20 T20

250000760

$1.74

710

Washer M5

250200025

$0.61

720

Torx Truss Screw M6 X 25

250000807

$1.74

730

Flat Washer M6.6 X 22

250200162

$1.91

800

Open Carrier Frame

708303654

$329.97

830

Rubber Stopper | Includes 830 to 830a

708303134

$2.31

830a

Washer

224060251

$0.57

835

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

840

Rubber Bumper

293830005

$5.33

1210

Support Pivot

708303735

$16.89

1220

O-Ring

293300131

$5.52

1600

Latch Lever

708303088

$83.05

1605

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1610

Cap Latch Lever

708300358

$5.38

1640

Half Ring

705500033

$4.92

1660

Clamp Retainer

708301479

$3.08

1670

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

1720

LH Torsion Spring

708303190

$3.85

1730

RH Torsion Spring

708303191

$3.85

1740

Deflector

708303097

$10.00

1750

Tuflok Plastic Rivet

293150230

$1.21

2000

Gas Shock Absorber

715007129

$50.74

2010

Pin Clevis

250400098

$5.52

2020

Hair Pin

414575600

$1.51

3000

Retaining Plate

708301480

$8.45

3020

Hex. Flange Screw M6 X 20

207662054

$0.83

3500

Red Reflector

705011221

$12.32

3520

Elastic Stop Nut M5

232551414

$0.72

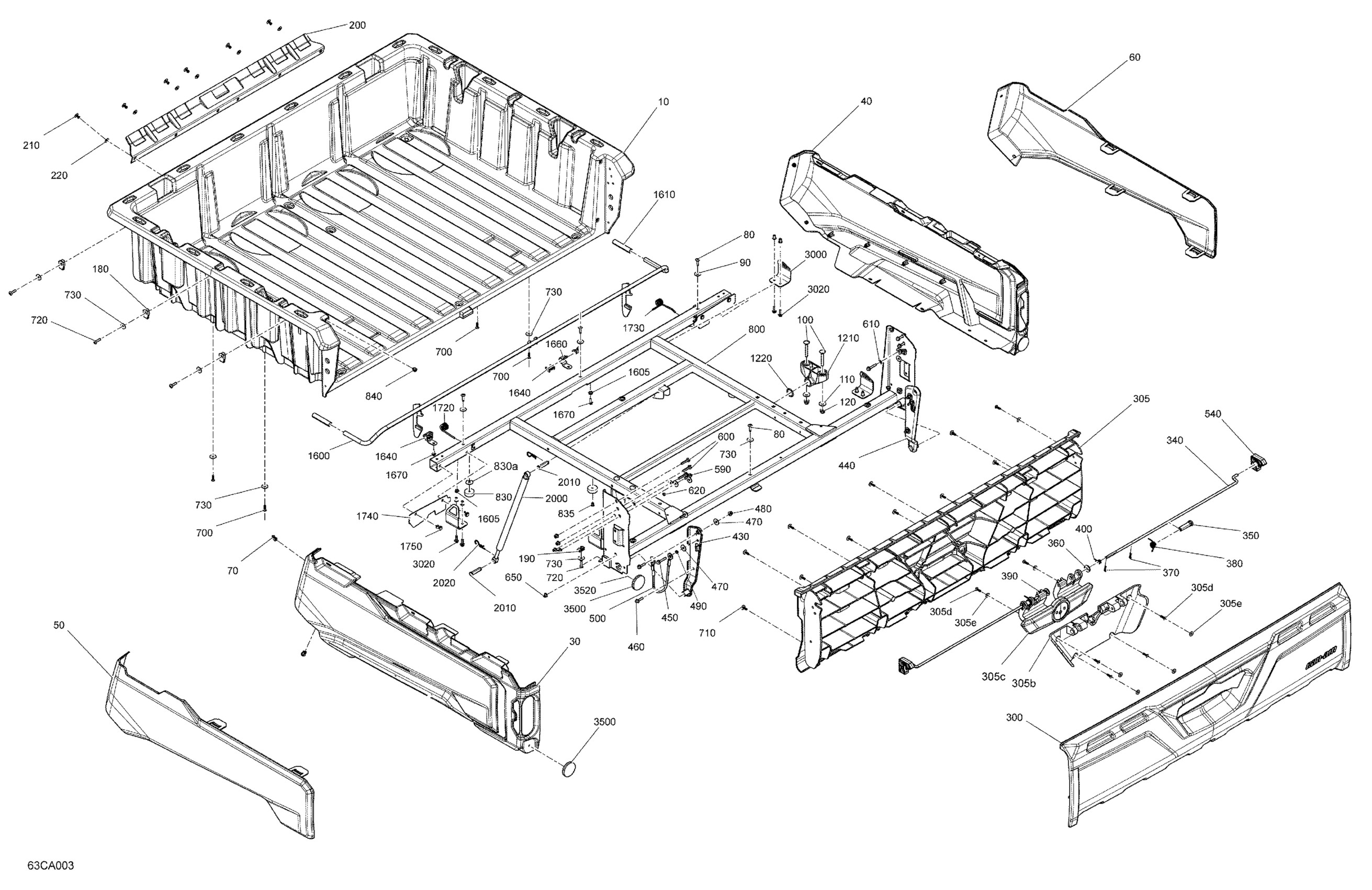

Can-Am Traxter T HD10 - XU - T Regulation, 2021 Body - Cargo Diagram
