Electric - Rear Section

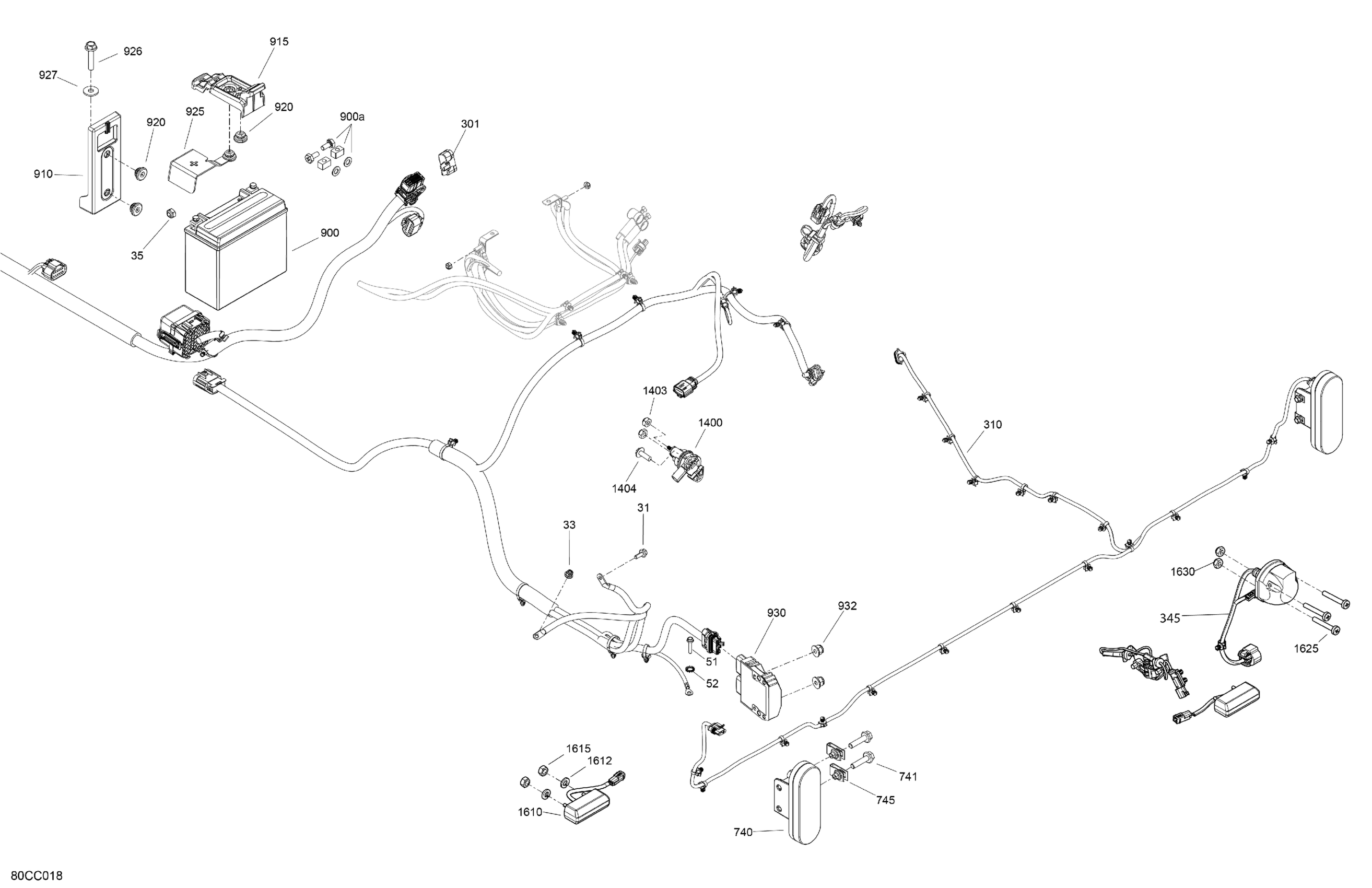

Can-Am Traxter HD9 - BASE - T Regulation, 2023 Electric - Rear Section Diagram
#
Description
Price
31
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
33
Elastic Stop Nut M6, Brass
232561200
Unavailable
35
Elastic Stop Nut M6, Brass
232561200
Unavailable
51
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
52
External Serrated Lock Washer 6 mm
234461608
Unavailable
301
DPS Connector Cap | Not Shown
710005760
Unavailable
310
Taillight Wiring Harness
710006748
Unavailable
345
Trailer Wiring Harness
710006758
Unavailable
740
Tail Light
710004257
Unavailable
741
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
745
Panel Nut M6 X 1.0
250100198
Unavailable
900
12 Volt Battery 18AH In Box | Includes items 7 to 8
296000444
Unavailable
900a
Battery Bolt Kit
250000282
Unavailable
901
Washer | Not Shown
710009082
Unavailable
903
Screw | Not Shown
710009084
Unavailable
910
Fixation Plate
710004788
Unavailable
915
Fixation Plate
710004789
Unavailable
920
Stopper Rubber
705014429
Unavailable
925
Battery Cable Cap
710006471
Unavailable
926
Hex. Flange Screw M6 X 30, Scotch Grip
207563044
Unavailable
927
Flat Washer 6 mm
234062410
Unavailable
930
Voltage Regulator
710005842
Unavailable
932
Hex. Flange Elastic Nut M6
233261494
Unavailable
1400
Starter Relay
278003012
Unavailable
1403
Elastic Stop Nut M6, Brass
232561200
Unavailable
1404
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
1610
Light | Includes 220j to 220j1
710008467
Unavailable
1612
Lock Washer Helical M6
234161601
Unavailable
1615
Hex. Nut M6
232061600
Unavailable
1630
Flange Elastic Nut M5
233251434
Unavailable
