- Traxter HD9 - BASE - T Regulation, 2023
Cab Interior - Dashboard

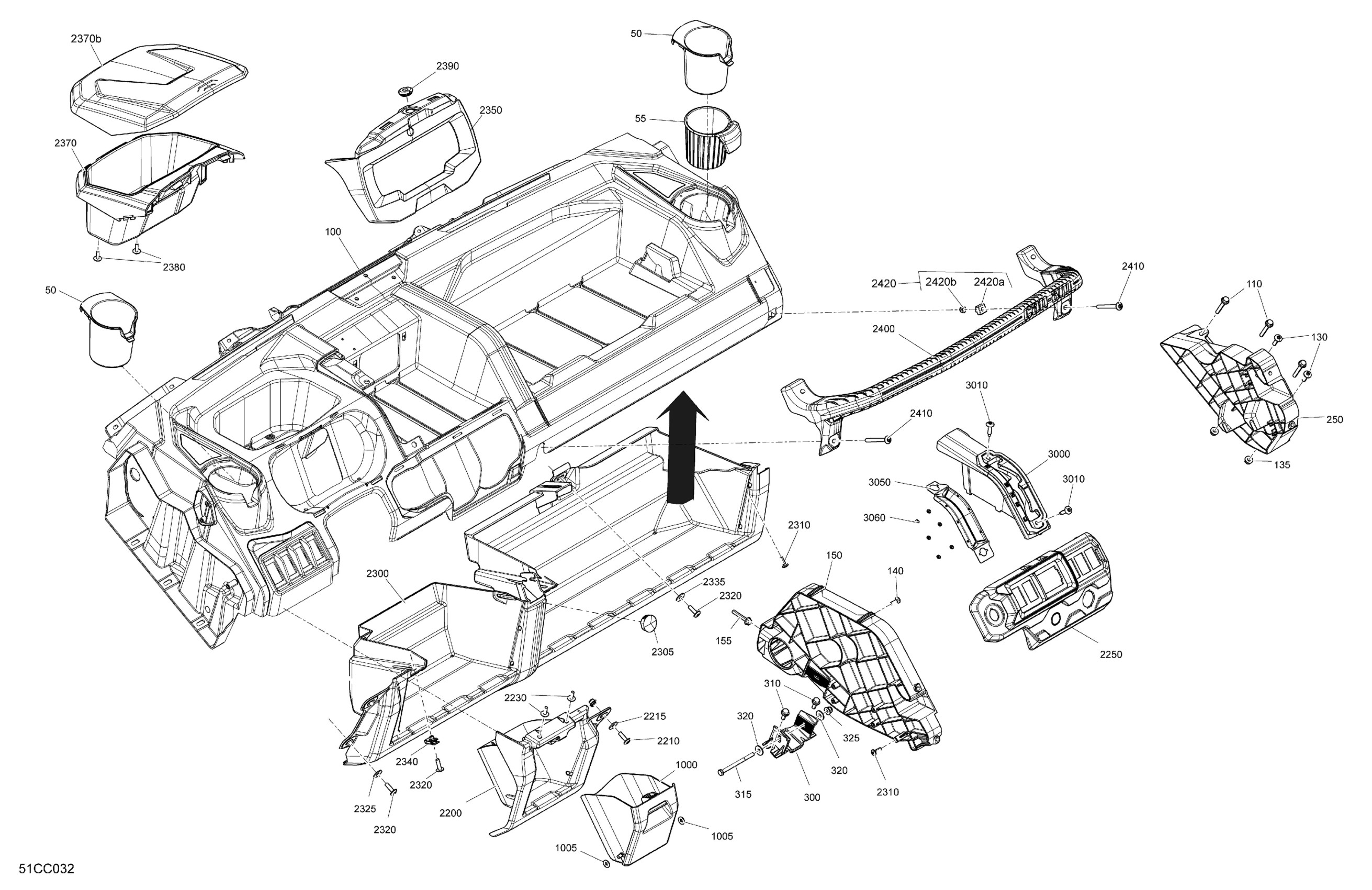

Can-Am Traxter HD9 - BASE - T Regulation, 2023 Cab Interior - Dashboard Diagram
#
50
Cup Holder
707901122
Unavailable
55
Rubber Cap
707900580
Unavailable
100
Upper Dashboard
707901073
Unavailable
110
Hex. Flange Screw M6 X 40, Scotch Grip
207564044
Unavailable
130
Torx Screw M6 X 20
250000712
Unavailable
135
Hex. Flange Elastic Nut M6
233261494
Unavailable
140
Torx Screw K50 X 16
250000720
Unavailable
150
Central Console Support
707901134
Unavailable
155
Hex. Flange Screw S.Grip M6 X 35
207563544
Unavailable
250
RH Console Support
707901126
Unavailable
300
Plier
707900940
Unavailable
310
Hex. Flange Screw M6 X 16, Scotch Grip
207561646
Unavailable
315
Hex. Screw M6 X 80
207068044
Unavailable
320
Stainless Steel Flat Washer
234062670
Unavailable
325
Hex. Flange Elastic Nut M6
233261494
Unavailable
1000
Cover
707901132
Unavailable
1005
O-Ring
293300194
Unavailable
2200
LH Lower Dashboard
707901118
Unavailable
2210
Torx Screw M6 X 20
250000722
Unavailable
2215
Stainless Steel Flat Washer
234062670
Unavailable
2230
Screw PT Type K-50 X 16
250000959
Unavailable
2250
Switch Support Ass'y
715008266
Unavailable
2300
Lower Dashboard
707901086
Unavailable
2305
Cap
710004993
Unavailable
2310
Torx Screw K50 X 16
250000720
Unavailable
2320
Torx Screw M6 X 20
250000722
Unavailable
2325
Stainless Steel Flat Washer
234062670
Unavailable
2335
Stainless Steel Flat Washer
234062670
Unavailable
2340
Panel Nut M6 X 1.0
250100198
Unavailable
2350
Gauge Support
707901121
Unavailable
2370
Storage Box Ass'y | Includes 2370 to 2370b
707900764
Unavailable
2380
Screw PT Type K-50 X 16
250000959
Unavailable
2390
Grommet
705003264
Unavailable
2400
Passenger Handhold
707900248
Unavailable
2410
Torx Screw M6 X 60
250000648
Unavailable
2420
M6 Nut Housing Ass'y | Includes 7r to 7r2
269500725
Unavailable
2420a
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
Unavailable
2420b
Hex. Elastic Stop Nut M6
232561600
Unavailable
3000
Shifter Gate
707900608
Unavailable
3010
Torx Screw M6 X 25 | XT Models
250000728
Unavailable
3050
Shifter Gate Deflector
707900506
Unavailable
3060
Push Nut
250100178
Unavailable
