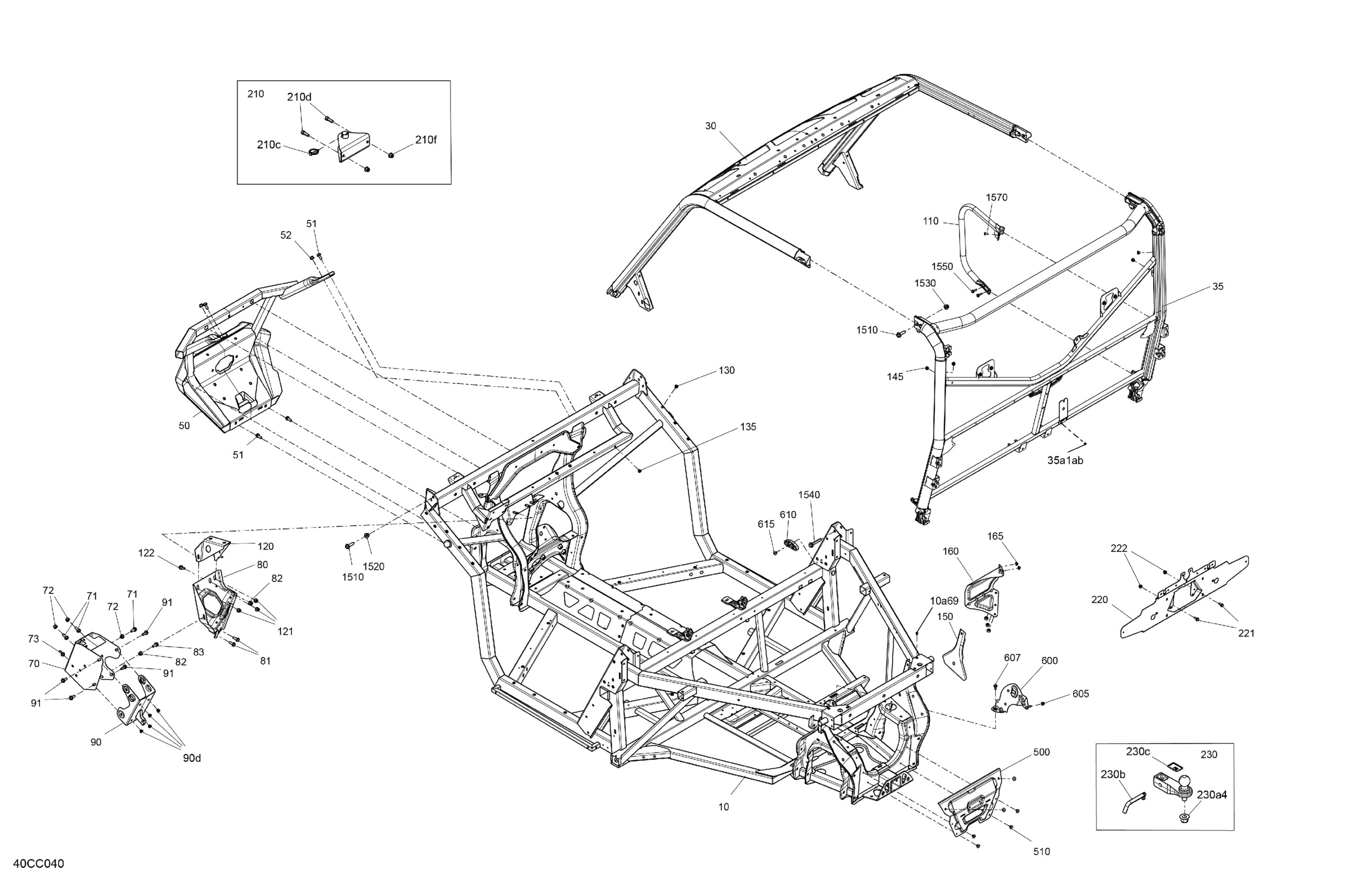

Can-Am Traxter HD9 - BASE - T Regulation, 2023 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Kit

715009079

Unavailable

10a69

Pop Rivet 3/16"

390402200

Unavailable

30

Front Cage Ass'y

715008424

Unavailable

35

Rear Cage Ass'y | Includes 35 to 35a1ab

715009067

Unavailable

35a1ab

Pop Rivet 3/16"

390402200

Unavailable

50

Deep Black, Front Bumper

705207588

Unavailable

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

52

Hex. Elastic Flange Nut M8

233281416

Unavailable

70

Module Support

705209388

Unavailable

71

Hex. Flange Screw M8 X 20

207682044

Unavailable

72

Hex. Elastic Flange Nut M8

233281416

Unavailable

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

80

Support

705208740

Unavailable

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

82

Hex. Elastic Flange Nut M8

233281416

Unavailable

83

Hex. Flange Screw M8 X 20

207682044

Unavailable

90

Steering Column Support | Includes 90 to 90d

705209190

Unavailable

90d

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

110

Deep Black, RH Guard

705210930

Unavailable

120

Support

705208742

Unavailable

121

Hex. Elastic Flange Nut M8

233281416

Unavailable

122

Hex. Flange Screw M8 X 20

207682044

Unavailable

130

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

135

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

145

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

150

Heat Shield

705014849

Unavailable

160

Heat Shield

707002709

Unavailable

165

Pop Rivet 3/16"

293150103

Unavailable

210

Anchorage Strap F Ass'y | Includes 210 to 210c

705208973

Unavailable

210c

Pin

605456518

Unavailable

210d

Socket Screw M10 x 30 | XT

205003044

Unavailable

210f

Hex. Flange Elastic Nut M10

233201414

Unavailable

220

Licence Plate Support

705014656

Unavailable

221

Hex. Flange Screw M6 X 16

207661644

Unavailable

222

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

230

Drawbar Ass'y | Includes 230 to 230c

705208230

Unavailable

230a4

Elastic Flange Nut M20

250100104

Unavailable

230b

Hitch Pin

705204490

Unavailable

230c

Hitch Approval Decal

704906897

$16.89

500

Rear Chassis Reinforcement

705207753

Unavailable

510

Pop Rivet 3/16" | DS 650 X

293150104

Unavailable

600

Voltage Regulator Support

710007522

Unavailable

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

610

Spacer

705208203

Unavailable

615

Pop Rivet 3/16" | DS 650 X

293150104

Unavailable

1510

Hex. Flange Screw M10 X 35

250000855

Unavailable

1520

Hex. Flange Elastic Nut M10

233201436

Unavailable

1530

Flange Elastic Nut M10

233201466

Unavailable

1540

Hex. Flange Screw M10 X 6

207606046

Unavailable

1550

Hex. Flange Screw S.Grip M6 X 20

207562054

Unavailable

1570

Torx Truss M6X14

250000789

Unavailable
