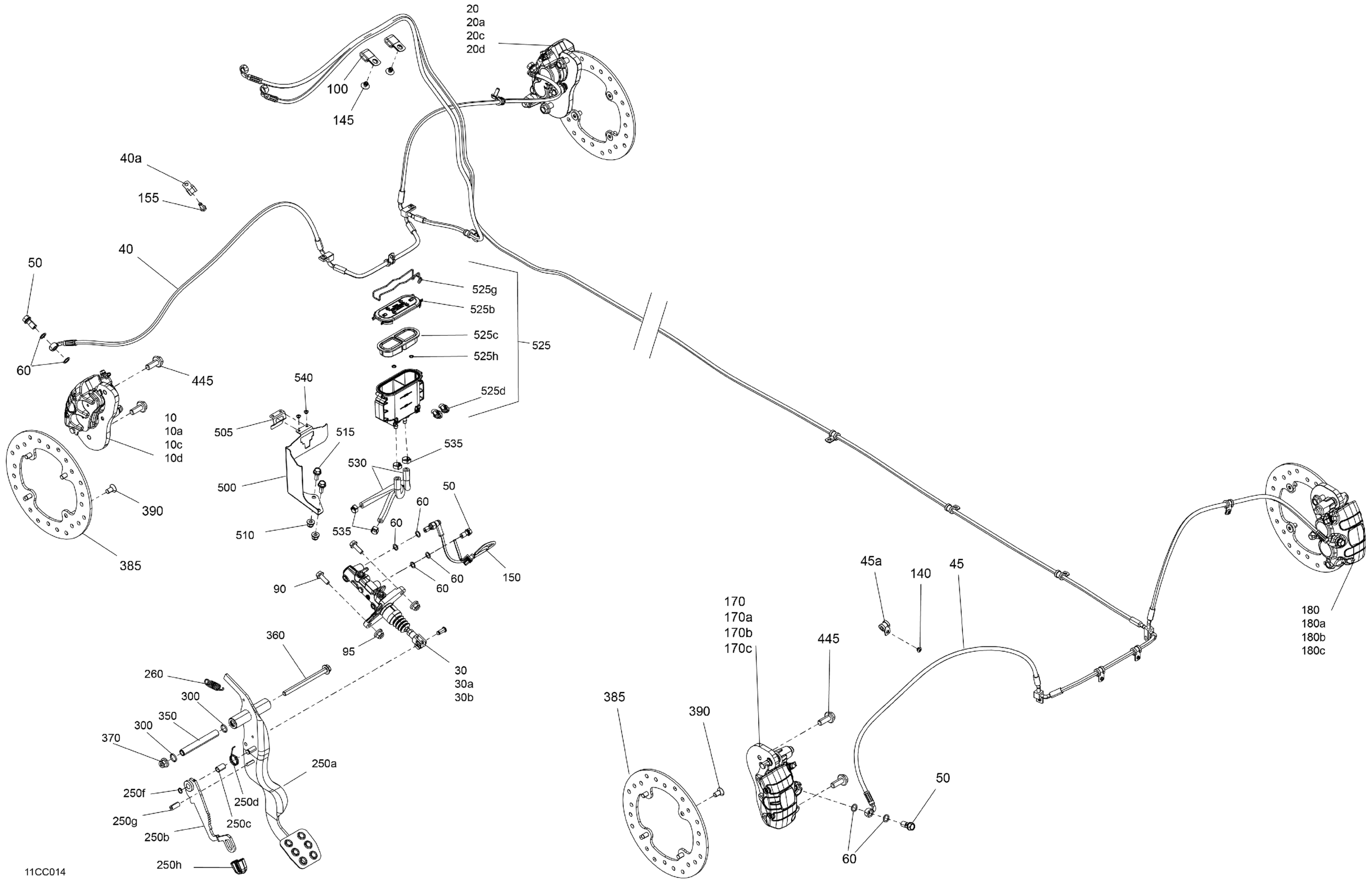

Can-Am Traxter HD9 - BASE - T Regulation, 2023 Mechanic - Brake System Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

Unavailable

10a

LH Brake Pads

715900379

Unavailable

10c

Bleeding Screw

705601017

Unavailable

10d

Cap Spring Kit

715900385

Unavailable

20

RH Front Brake Caliper | RH Front

705601888

Unavailable

20a

RH Brake Pads

715900380

Unavailable

20c

Bleeding Screw

705601017

Unavailable

20d

Cap Spring Kit

715900385

Unavailable

30

Master Cylinder | Includes 30 to 30b

705601803

Unavailable

30a

Boot Rod Kit

715900373

Unavailable

30b

Fork Kit

715900374

Unavailable

40

Front Caliper Hose | Includes 40 to 40a

705601812

Unavailable

40a

Clamp

293650256

Unavailable

45

Rear Caliper Hose | Includes 45 to 45a

705601813

Unavailable

45a

Clamp

293650256

Unavailable

50

Banjo Bolt (M10 x 1.25 thread)

705600609

Unavailable

60

Copper Washer

705601628

Unavailable

90

Hex. Flange Screw M8 X 25

207682544

Unavailable

95

Hex. Elastic Flange Nut M8

233281416

Unavailable

100

Open Clamp

515175507

$1.47

140

Pop Rivet 3/16"

390402200

Unavailable

145

Pop Rivet 3/16" | DS 650 X

293150104

Unavailable

150

Brake Switch

705601250

Unavailable

155

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

170

LH Rear Brake Caliper | LH Rear

705601928

Unavailable

170a

LH Brake Pads

715900381

Unavailable

170b

Bleeding Screw

705601017

Unavailable

170c

Cap Spring Kit

715900385

Unavailable

180

RH Rear Brake Caliper | RH Rear

705601929

Unavailable

180a

RH Brake Pads

715900382

Unavailable

180b

Bleeding Screw

705601017

Unavailable

180c

Cap Spring Kit

715900385

Unavailable

250a

Brake Pedal | Includes 250 to 250a

705601777

Unavailable

250b

Lever

705601725

Unavailable

250c

Bushing

705601722

Unavailable

250d

Spring

705601729

Unavailable

250f

Circlip

705601770

Unavailable

250g

Hose

219704549

Unavailable

250h

Adjustment Handle

708002655

Unavailable

260

Brake Pedal Spring

705600792

Unavailable

300

O-Ring

293300144

Unavailable

350

Inside Sleeve

705601373

Unavailable

360

Hex. Flange Screw, M10 X 130

230603046

$6.08

370

Hex. Flange Elastic Nut M10

233201436

Unavailable

385

Brake Disc

705601511

Unavailable

390

Torx Screw M8 X 16, Scotch Grip

235381646

Unavailable

445

Hex. Flange Screw M10 X 25

207502546

Unavailable

500

Support

705601567

Unavailable

505

Stopper Bracket

705601608

Unavailable

510

Hex. Flange Elastic Nut M8

233281414

Unavailable

515

Hex. Flange Screw M8 X 20

207682044

Unavailable

525

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

Unavailable

525b

Diaphragm Cover Ass'y

219800350

$17.66

525c

Diaphragm Cover Ass'y

219800350

$17.66

525d

Oil Level Sensor

705601073

Unavailable

525g

Spindle Lock

705601294

Unavailable

525h

Push Nut | Not shown

211100002

Unavailable

530

Hose

705601603

Unavailable

535

Oetiker Clamp

293650046

Unavailable

540

Pop Rivet 3/16"

390402200

Unavailable

2000

Pin Kit | Packages STD & PRO

715900384

Unavailable
