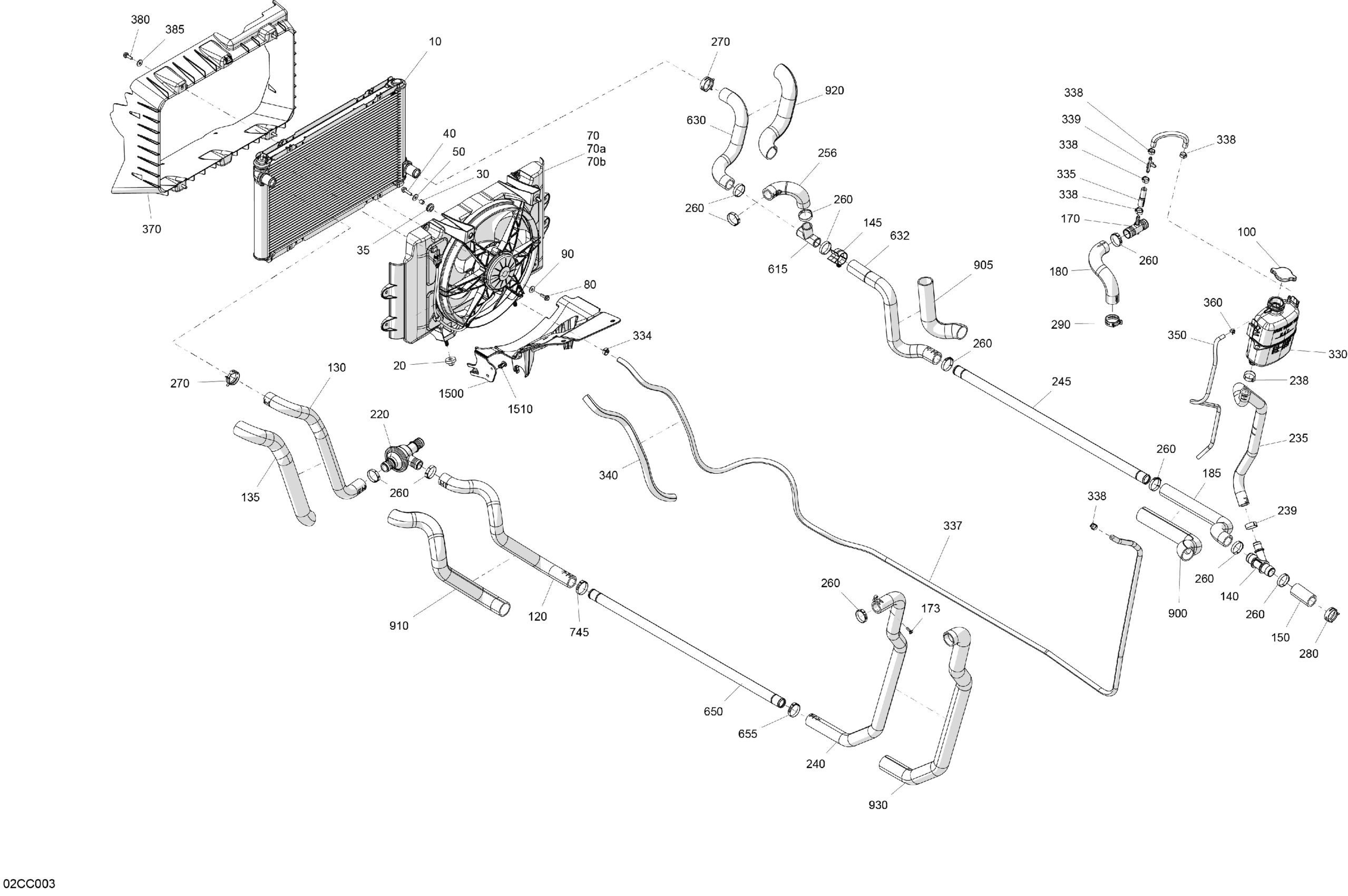

Can-Am Defender HD9 - BASE - 2023 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200951

$346.24

20

Grommet

709200948

$9.09

30

Bushing

293900105

$7.79

35

Grommet

709000582

$4.79

40

Hex. Flange Screw M6 X 25

207662544

$1.49

50

Flat Washer 6 mm

234062410

$1.49

70

Fan Ass'y

709200534

$305.19

70a

Radiator Deflector Kit

715008385

$81.31

70b

Front Radiator Deflector Ass'y

715008419

$49.22

80

Hex. Flange Screw M6 X 20

207662044

$2.09

90

Flat Washer 6 mm

234062410

$1.49

100

Radiator Pressure Cap

709200207

$21.61

120

Hose

709201028

$20.12

130

Formed Radiator Hose IN

709201443

Unavailable

135

Tubing 35 MM 1000MM Long

219704428

$11.49

140

Y Fitting

509001200

$5.10

145

Retainer

275500590

$8.24

150

Hose

709200299

$6.69

170

T-Fitting

509000510

$13.49

173

Torx Screw K50 X 16

250000720

$1.69

180

Hose Engine Out

709200915

$38.03

185

Hose

709200971

$38.03

220

Thermostat Housing

709200986

$89.52

235

Hose Coolant Tank Out

709201103

$34.30

238

Oetiker Gear Clamp

293650165

$5.49

239

Oetiker Gear Clamp

293650165

$5.49

240

Hose

709200969

$33.55

245

Heater Tubing

709200657

$17.88

256

Formed Thermostat Hose OUT

709201439

Unavailable

260

Gear Clamp

509000162

$7.49

270

Norma Spring Clamp

293650166

$4.49

280

Norma Spring Clamp

293650166

$4.49

290

Norma Spring Clamp

293650166

$4.49

330

Coolant Tank

709201323

$72.36

334

Oetiker Clamp

293650042

$3.19

335

Bleeding Hose

709200606

$18.63

337

Hose 6,35 Mm Id 4000Mm Long

219704547

$12.49

338

Crimp Clamp, 15.3-706R

293650047

$3.39

339

Y-Fitting

293710059

$9.89

340

Tubing 16 Mm 1000Mm Long

219704408

$7.69

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

360

Spring Clamp

414554800

$1.49

370

Front Radiator Deflector Ass'y

715008419

$49.22

380

Hex. Flange Screw M6 X 20

207662044

$2.09

385

Flat Washer 6 mm

234062410

$1.49

615

T-Fitting

509001313

$14.90

630

Formed Radiator Hose OUT

709201440

Unavailable

632

Hose Radiator Out

709201029

$9.99

650

Heater Tubing

709200657

$17.88

655

Gear Clamp

509000162

$7.49

745

Gear Clamp

509000162

$7.49

900

Tubing 35 MM 1000MM Long

219704428

$11.49

905

Tubing 35 MM 1000MM Long

219704428

$11.49

910

Tubing 35 MM 1000MM Long

219704428

$11.49

920

Tubing 35 MM 1000MM Long

219704428

$11.49

930

Tubing 35 MM 1000MM Long

219704428

$11.49

1500

Front Air Deflector

709201036

$96.99

1510

Tuflok Plastic Rivet

293150230

$1.49
