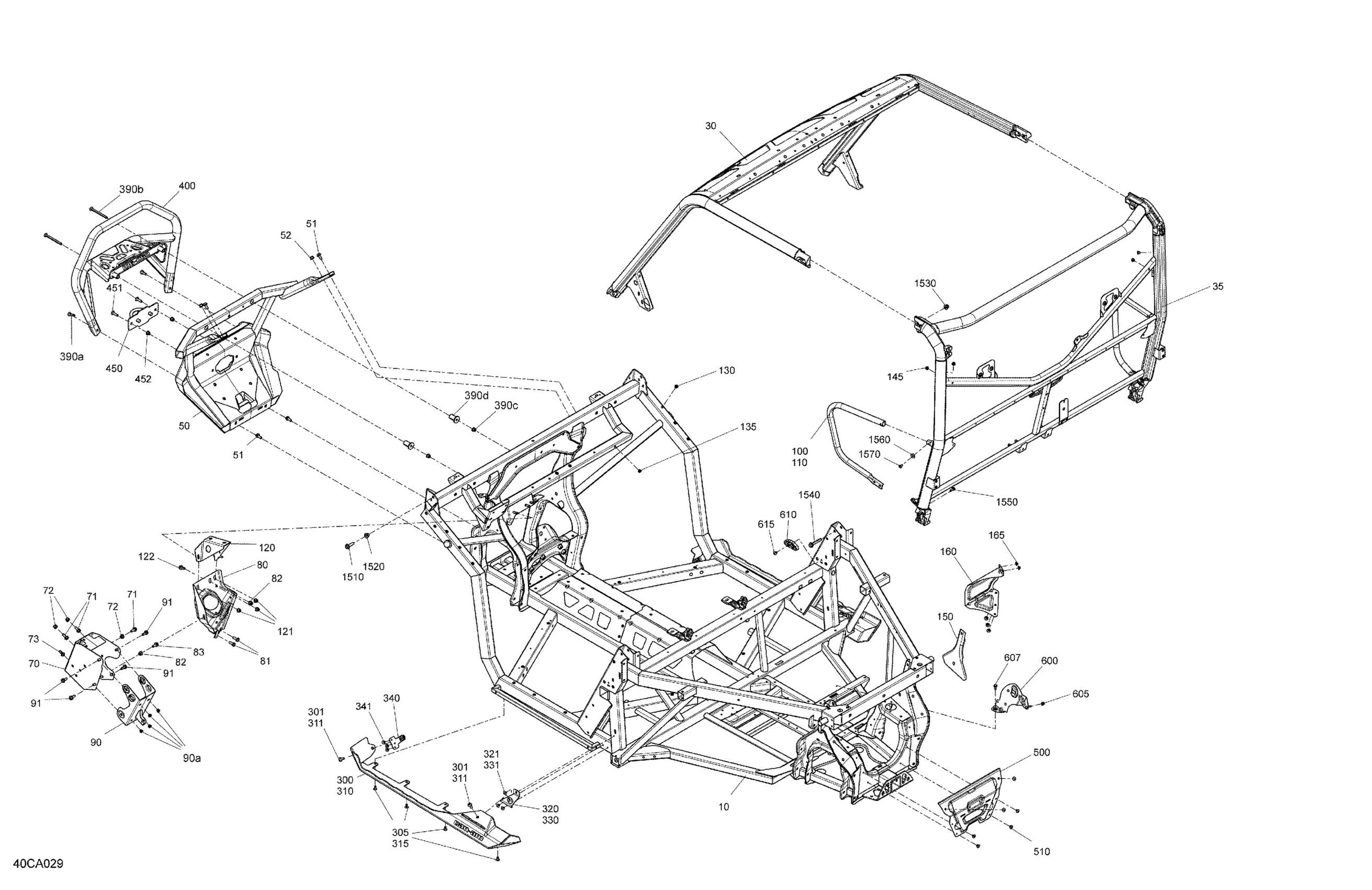

Can-Am Traxter HD10 - XMR - CE, 2021 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Kit

715009075

$3,159.99

30

Front Cage Profile Ass'y | Manta Green

715006531

$649.99

35

Rear Cage Profile Ass'y | Manta Green

715006533

$649.99

50

Deep Black, Front Bumper

705207588

Unavailable

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

52

Hex. Elastic Flange Nut M8

233281416

Unavailable

70

Module Support

705209388

Unavailable

71

Hex. Flange Screw M8 X 20

207682044

Unavailable

72

Hex. Elastic Flange Nut M8

233281416

Unavailable

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

80

Power Steering Support

705208741

Unavailable

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

82

Hex. Elastic Flange Nut M8

233281416

Unavailable

83

Hex. Flange Screw M8 X 20

207682044

Unavailable

90

Steering Column Support | Includes 90 to 90d

705209190

Unavailable

90a

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

100

Manta Green, LH Side Protector | Manta Green

705208209

Unavailable

110

Manta Green, RH Side Protector | Manta Green

705208211

Unavailable

120

Support

705208742

Unavailable

121

Hex. Elastic Flange Nut M8

233281416

Unavailable

122

Hex. Flange Screw M8 X 20

207682044

Unavailable

130

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

135

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

145

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

150

Heat Shield

705014849

$2.75

160

Heat Shield

707002717

Unavailable

165

Pop Rivet 3/16"

293150103

Unavailable

300

Manta Green, LH Guard Panel | Manta Green

705208694

Unavailable

301

Torx Truss M8 X 25

250000874

Unavailable

305

Pop Rivet 3/16”

293150108

$1.23

310

Manta Green, RH Guard Panel | Manta Green

705208695

Unavailable

311

Torx Truss M8 X 25

250000874

Unavailable

315

Pop Rivet 3/16”

293150108

$1.23

320

LH Rock Slider Support

705206342

Unavailable

321

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

330

RH Rock Slider Support

705206343

Unavailable

331

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

340

Front Guard Support

705208661

Unavailable

341

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

390a

Torx Screw M8 X 30

250000886

Unavailable

390b

Torx Truss M/S M8 x X 100

250001106

$5.53

390c

Hex. Flange Elastic Nut M8

233281414

Unavailable

390d

Spacer

705207754

Unavailable

400

XMR FRONT BUMPER - Call your local BRP dealership | Model Manta Green

715006144

Unavailable

450

Can-Am Red, Front Tow Hook

705211623

Unavailable

451

Torx Screw M8 X 30

250000886

Unavailable

452

Hex. Elastic Flange Nut M8

233281416

Unavailable

500

Rear Chassis Reinforcement

705207753

Unavailable

510

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

600

Voltage Regulator Support

710007522

Unavailable

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

610

Spacer

705208203

Unavailable

615

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1510

Hex. Flange Screw M10 X 35

250000855

$1.46

1520

Hex. Flange Elastic Nut M10

233201436

Unavailable

1530

Flange Elastic Nut M10

233201466

Unavailable

1540

Hex. Flange Screw M10 X 6

207606046

Unavailable

1550

Hex. Flange Screw S.Grip M6 X 20

207562054

Unavailable

1560

Offset Washer

705202223

Unavailable

1570

Torx Truss M6X14

250000789

$4.41
