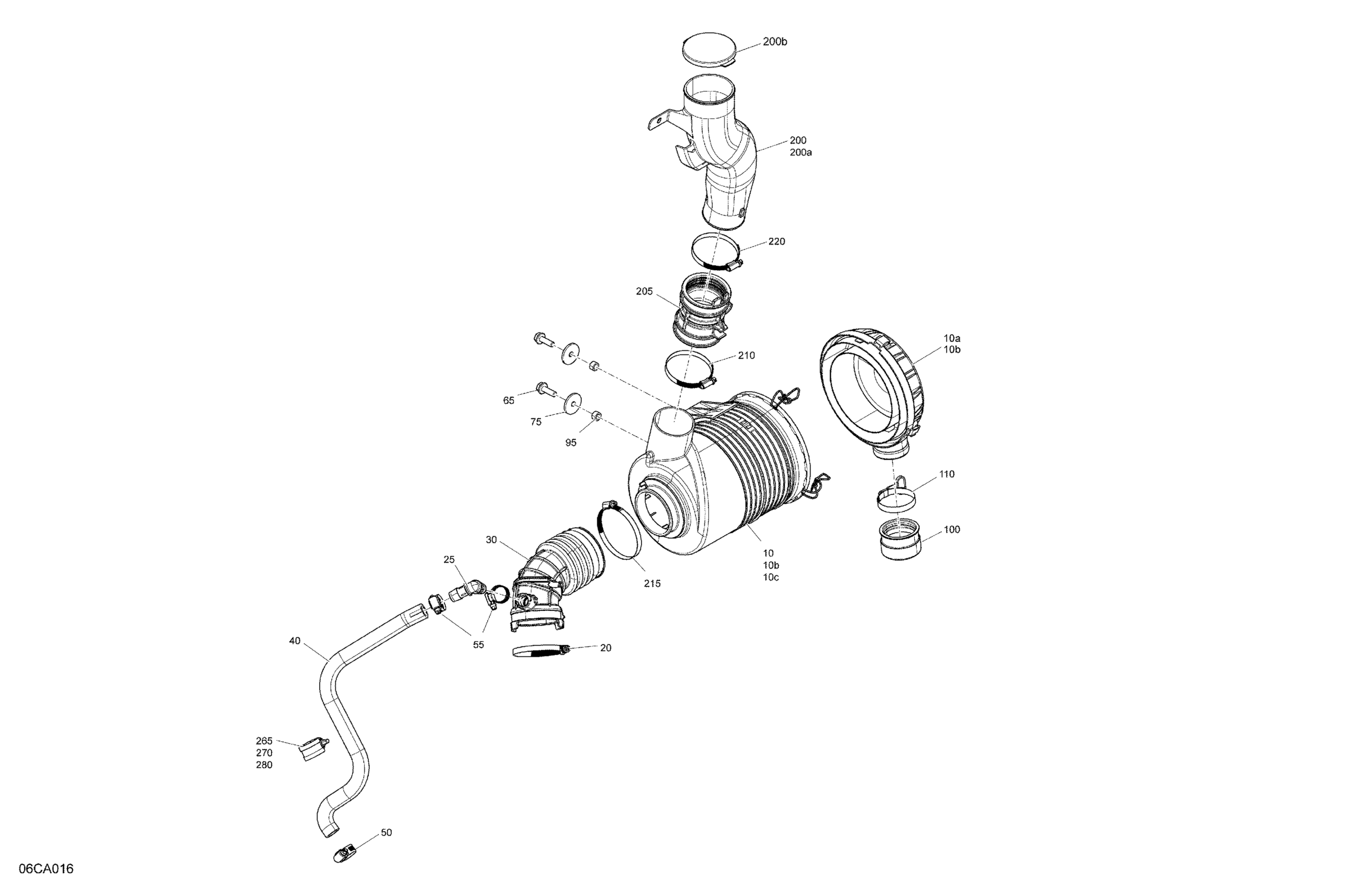

Can-Am Traxter HD10 - XMR - CE, 2021 Engine - Air Intake Diagram

#

Description
Price

10

Intake Silencer Ass'y | Includes 10 to 10b

707801033

Unavailable

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$87.66

10b

O-Ring

715900514

$17.66

10c

Air Filter

715900394

$50.74

20

Norma Clamp

293650091

Unavailable

25

Elbow Fitting 90

293710155

$8.45

30

Intake Duct

707800834

Unavailable

40

Crankcase Formed Hose

707800868

Unavailable

50

Tridon Gear Clamp

293650173

Unavailable

55

Tridon Gear Clamp

293650173

Unavailable

65

Hex. Flange Screw M8 X 25

207682534

Unavailable

75

Flat Washer M8

250200158

Unavailable

95

Bushing

277000980

Unavailable

100

Vacuator Cap

707800769

Unavailable

110

Turn Key Clamp

293650269

$7.37

200

Air Inlet Tube | Includes 600 to 600b

706600280

$50.74

200a

Air Inlet Tube | Includes 600 to 600b

706600280

$50.74

200b

Cap

293000123

$7.69

205

Flexible Joint

706600203

$27.66

210

Norma Clamp

293650091

Unavailable

215

Norma Clamp

293650096

$3.09

220

Norma Clamp

293650091

Unavailable

265

Hose Anchor

709200036

Unavailable

270

Hex. Flange Screw M6 X 25

207662544

Unavailable

280

Hex. Flange Nut M6

233061414

Unavailable
