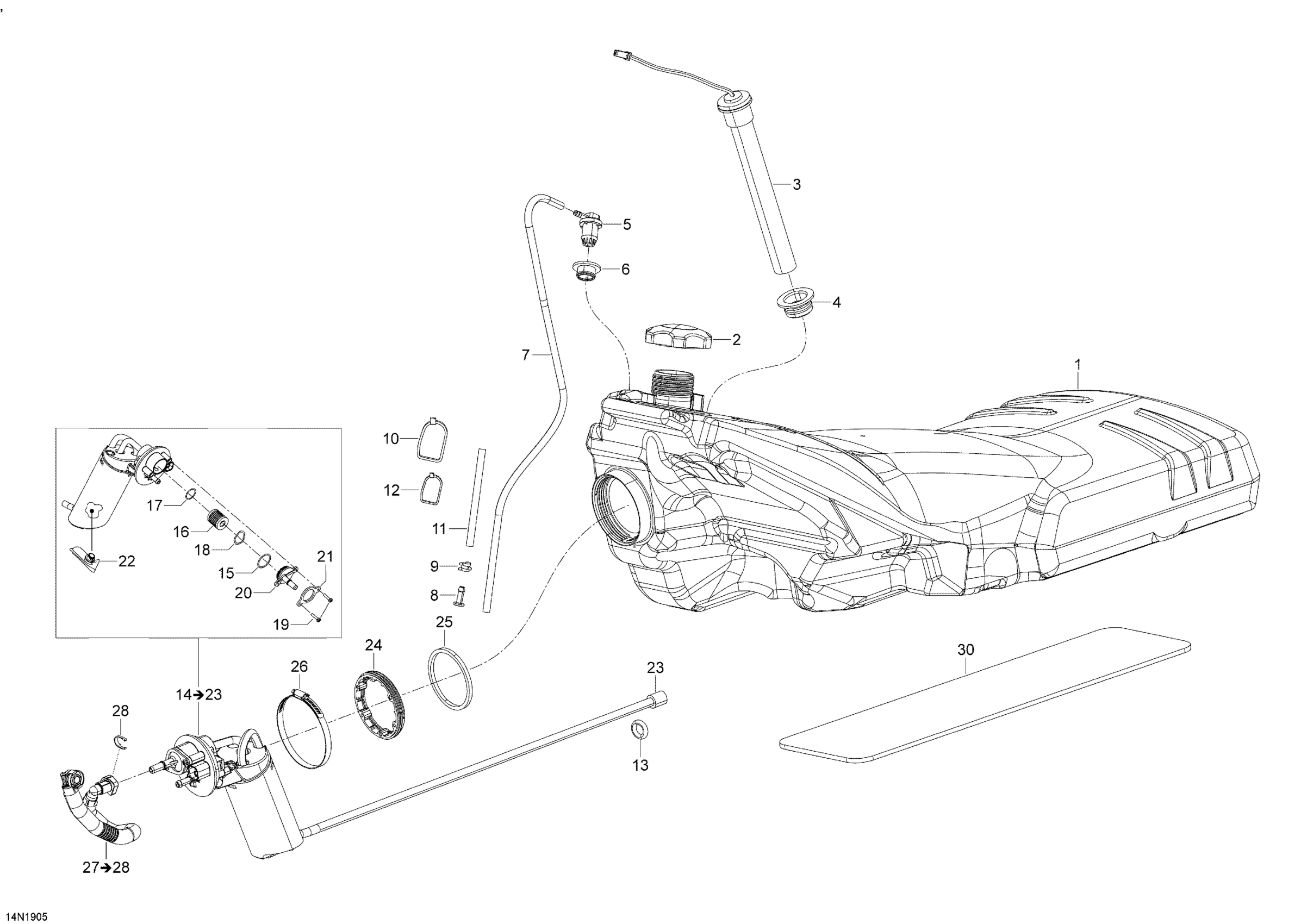

Ski-Doo Skandic WT 600 ACE, 2019 Fuel Diagram

#

Description
Price

1

Fuel Tank

513033757

$551.51

2

Fuel Tank Cap 95 Octane | Europe

513033723

$25.35

2

Fuel Tank Cap

513033969

$25.35

3

Fuel Sensor

513033902

$77.66

4

Grommet

293720113

$11.00

5

Check Valve

513033842

$33.82

6

Grommet

513033596

$18.43

7

Polyurethane Hose 10000Mm Long

219704410

$46.12

9

Clip

414227300

$1.45

11

Protector Tube

504153468

Unavailable

13

O Ring

293300184

$3.29

14

Fuel Pump | Includes 300 to 300j This part replaces 513033694.

513034261

$257.66

15

O-Ring

415129509

$18.43

16

Fuel Filter

415129510

$23.05

17

O-Ring

415129511

$16.89

18

Wave Washer

415129512

$18.43

19

Screw

415129513

$9.00

20

Cover

415129685

$29.97

21

Fuel Pump Ring

415129569

Unavailable

22

Fuel Filter

415129451

$23.05

23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

24

Ring

513033180

$17.66

25

Gasket

513033334

$23.05

40

Clamp

513033628

$20.74

27

Hose Ass'y | Includes 500 to 500a

513033582

$73.05

28

Locking Clip

513033135

$5.11

30

Insulate Foam

513033788

$8.74
