Description

Price

30

Flat Washer 8 mm

234081410

$0.69

70

Hex Screw M8 X 30

250000942

$0.92

80

Flat Washer 8 mm

234081410

$0.69

90

Hex. Flange Elastic Nut M8

233281414

$1.14

100

Engine Chassis Module Ass'y | Includes 100 to 100k

518334604

$394.58

100a

RH Side Member Ass'y | Includes 100a to 100a3

518334521

$208.43

100a3

Leg Bushing

505072690

Unavailable

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

100b2

Leg Bushing

505072690

Unavailable

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

100d

Collar Huck Magna-Grip 6.4

293150149

$0.37

100f

Bottom Plate

518332716

$34.58

100g

Rivet Avibulb 3/16

293150203

$0.29

100h

Insert M5 X 0.8

293450268

$1.95

100j

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

100k

Collar Huck Magna-Grip 6.4

293150149

$0.37

110

Ornit Rivet 6,5 X 14.5

293150266

$1.94

115

Hex. Flange Screw M6 X 20

207662046

$1.74

120

Elastic Flange Nut M6 X 1.0

233261416

$1.74

125

Rivet Ornit 6,5 X 18.5

293150268

$1.94

127

Rivet Ornit 6,5 X 10.5

293150264

$1.94

128

Ornit Rivet 6,5 X 14.5

293150266

$1.94

130

Hex. Flange Elastic Nut M8

233281414

$1.14

140

Hex. Flange Screw M6 X 20

207662046

$1.74

150

Elastic Flange Nut M6 X 1.0

233261416

$1.74

180

Hex. Flange Screw M6 X 16

207661646

$1.00

300

LH Side Member Ass'y | Includes 300 to 300b

518333783

$270.74

300b

Vibration Damper

512061516

$57.66

310

Screw-Pan HD.Torx M8X30

250001060

$0.65

400

Chassis Suspension Module | Includes 400 to 400n

518335307

$363.82

400m1

Insert M5 X 0.8

293450268

$1.95

400n

Rivet Avibulb 3/16

293150203

$0.29

405

Screw Hex M10 X 30

250001148

$1.66

406

Flat Washer 10 mm

234001410

$0.98

407

O-Ring

505072448

Unavailable

420

Hex. Flange Elastic Nut M10

250100165

$0.70

435

Hex. Flange Screw M6 X 20

207562056

$1.74

500

Front Bottom Plate

518331615

$29.97

510

Insert M5 X 0.8

293450268

$1.95

540

Avex Rivet

390909100

$0.29

545

Rivet Ornit 6,5 X 10.5

293150264

$1.94

800

LH Under Chassis Reinforcement

518331729

$11.12

810

RH Under Chassis Reinforcement

518331731

$18.43

815

Rivet Ornit 6,5 X 10.5

293150271

$1.94

820

Cross Member Support

518331733

$30.74

830

Ornit Rivet 6,5 X 14.5

293150266

$1.94

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900b

518333368

$108.43

910

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910b

518333369

$108.43

920

Pan Head Torx Screw M8 X 12

250000887

$1.56

1000

Protruding Stud M5 x 12

250300651

$1.92

1100

Upper Colomn Support

518329974

$20.74

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

1120

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1125

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1126

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1140

Hex. Flange Screw M6 X 20

207662046

$1.74

1145

Hex. Flange Screw M6 X 20

207662046

$1.74

1146

Hex. Flange Screw M6 X 25

207662556

$3.61

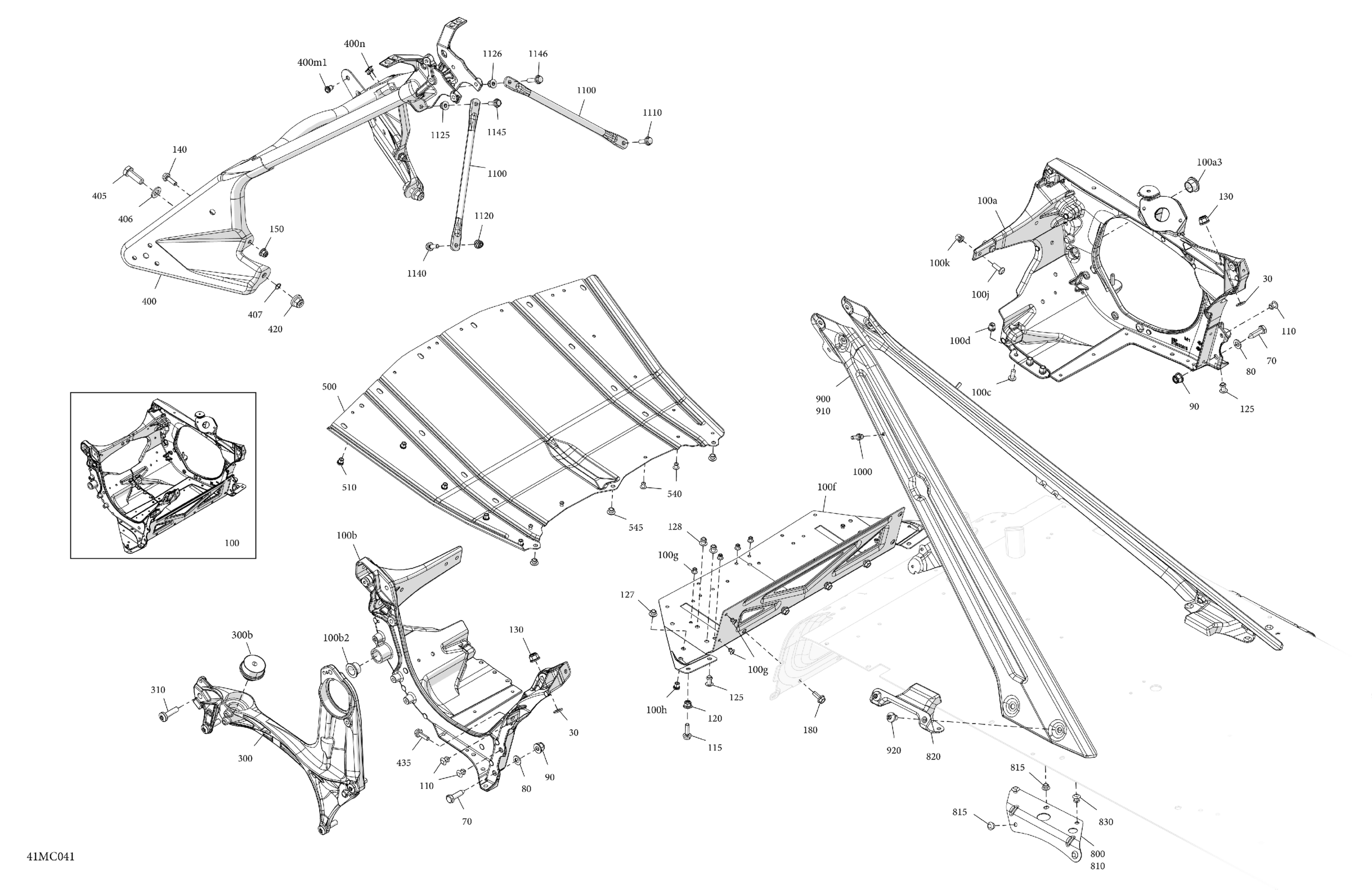

Ski-Doo SKANDIC LE 600 EFI - 2023 Frame - System - Front Section Diagram
