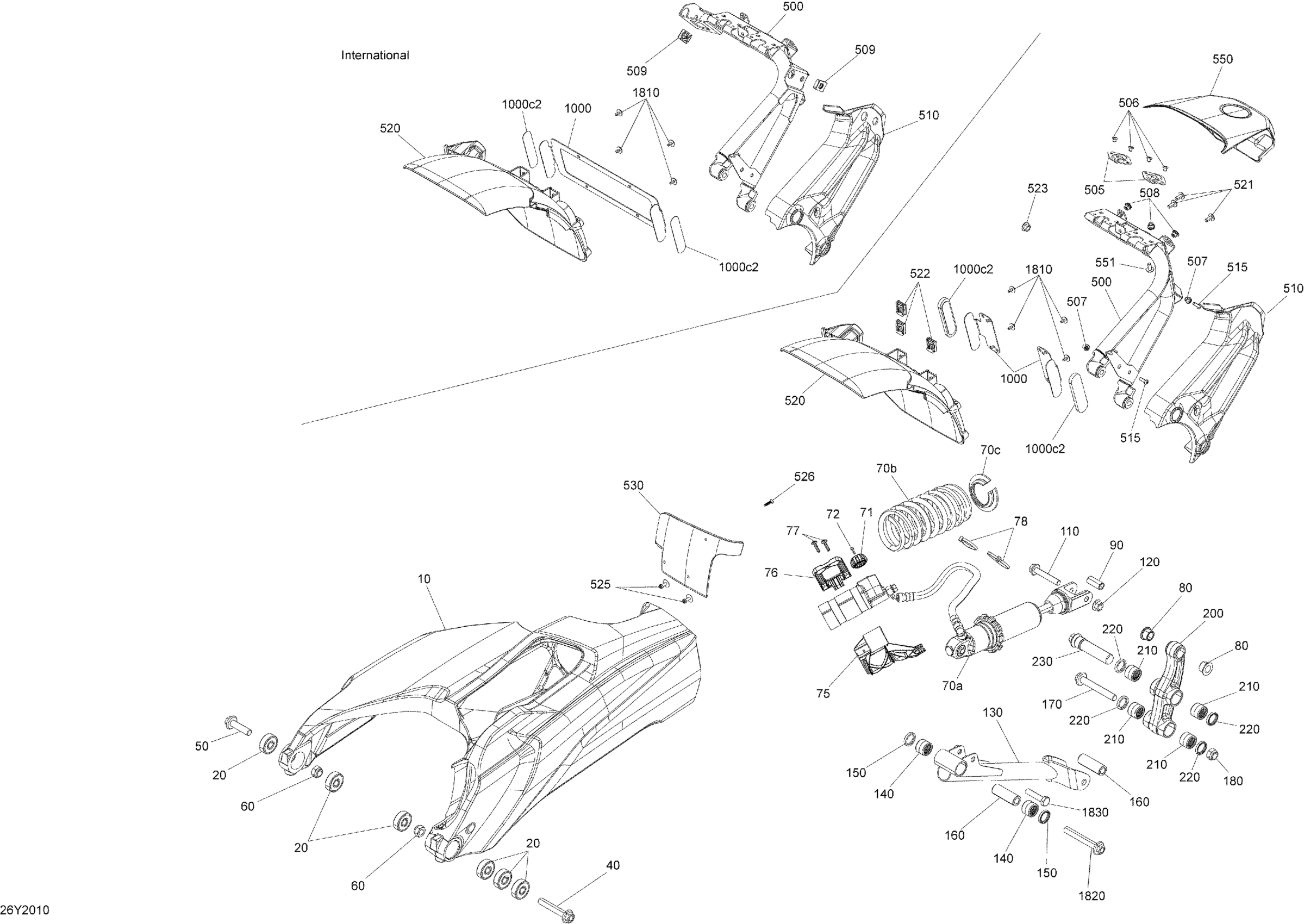

Can-Am RYKER Rally Edition 900 ACE, 2020 Suspension, Rear - Rally Edition - Swing Arm - Shock - Fender Diagram

#

Description
Price

10

Rear Swing Arm

706002399

$657.00

20

Ball Bearing, ID 12, OD 37, L 12

706002649

$15.00

40

Hex. Flange Screw M12 X 70

250000858

$3.11

50

Hex. Flange Screw M12 X 45, Scotch Grip

207524556

$8.00

60

Elastic Stop Nut M12

232521416

$1.40

70a

Rear Shock Ass'y | Comes with hose & reservoir

706002889

$445.00

70b

Spring Compression, Rear

706002890

$51.00

70c

Spring Stopper

706000567

$15.35

71

Button Adjustment

706003499

$3.00

72

Allen Screw M3 X 0.5 X 10

250000644

$1.74

75

Support Shock Absorber Tank Interior

706003311

$4.00

76

Support Shock Absorber Tank Exterior

706003312

$4.00

77

Torx Screw Truss Head K50X20 T20

250000760

$1.74

78

Tie-Rap 180 mm

414115200

$0.09

80

Urethane Bushing

503189117

$6.88

90

Spacer

706002678

$4.00

110

Hex. Flange Screw M10 X 60, Scotch Grip

207506056

$5.00

120

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$1.74

130

Suspension Arm Lever, Primary

706002533

$159.00

140

Bearing, Needles

706002965

$13.00

150

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

160

Axle, Suspenion Arm

706002534

$21.00

170

Hex. Flange Screw M12 X 85, Scotch Grip

207528556

$7.00

180

Elastic Stop Nut M12

232521416

$1.40

200

Suspension Arm Lever, Secondary

706202664

$159.00

210

Bearing, Needles

706002965

$13.00

220

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

230

Pin Threaded M25 X 1.5 S.Grip, Lever

706002961

$37.00

500

Rear Fender Support

705013304

$115.00

500

Rear Fender Support

705014612

$115.00

505

Grommet Ass'y

705005055

$13.00

506

Rivet 3/16"

293150102

$0.71

507

Insert M5 - 0.8

293450267

$4.22

508

Insert Half Hex Body M6 x 1.0

250100199

$2.54

509

Panel Nut M6 X 1.0

250100208

$1.07

510

LH Fender Trim Support

705013305

$18.00

511

LH Fender Trim Support

705013621

$18.00

515

Torx Truss Screw M5 X 16, T25

250000578

$1.74

519

Rear Lower Fender

705013143

$205.00

520

Rear Lower Fender

705013625

$410.00

521

Torx Truss M6X14

250000789

$4.41

522

Panel Nut M6 X 1.0

250100208

$1.07

523

Hex. Flange Nut M6

233061414

$1.34

525

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

526

Screw 8-32

250001097

$3.00

530

Mud Guard

705013229

$40.00

550

Rear Fender Trim

706003151

$15.00

551

Torx Truss M6X14

250000789

$4.41

1000

License Plate Support Ass'y

706005433

$38.00

1000c2

Red Reflector | Canada/USA

705012439

$8.26

1001

License Plate Support Kit | International

703100931

$72.00

1001c2

Amber Reflector

520002069

$5.00

1810

Plastite Screw M4 X 10

250000805

$1.74

1820

Hex. Flange Screw M12 X 85, Scotch Grip

207528556

$7.00

1820

Elastic Stop Nut M12

232521416

$1.40

1830

Hexagonal Screw M10 x 45

207204556

$3.00

1840

Torx Truss Screw M6 X 30

250000843

$1.74
