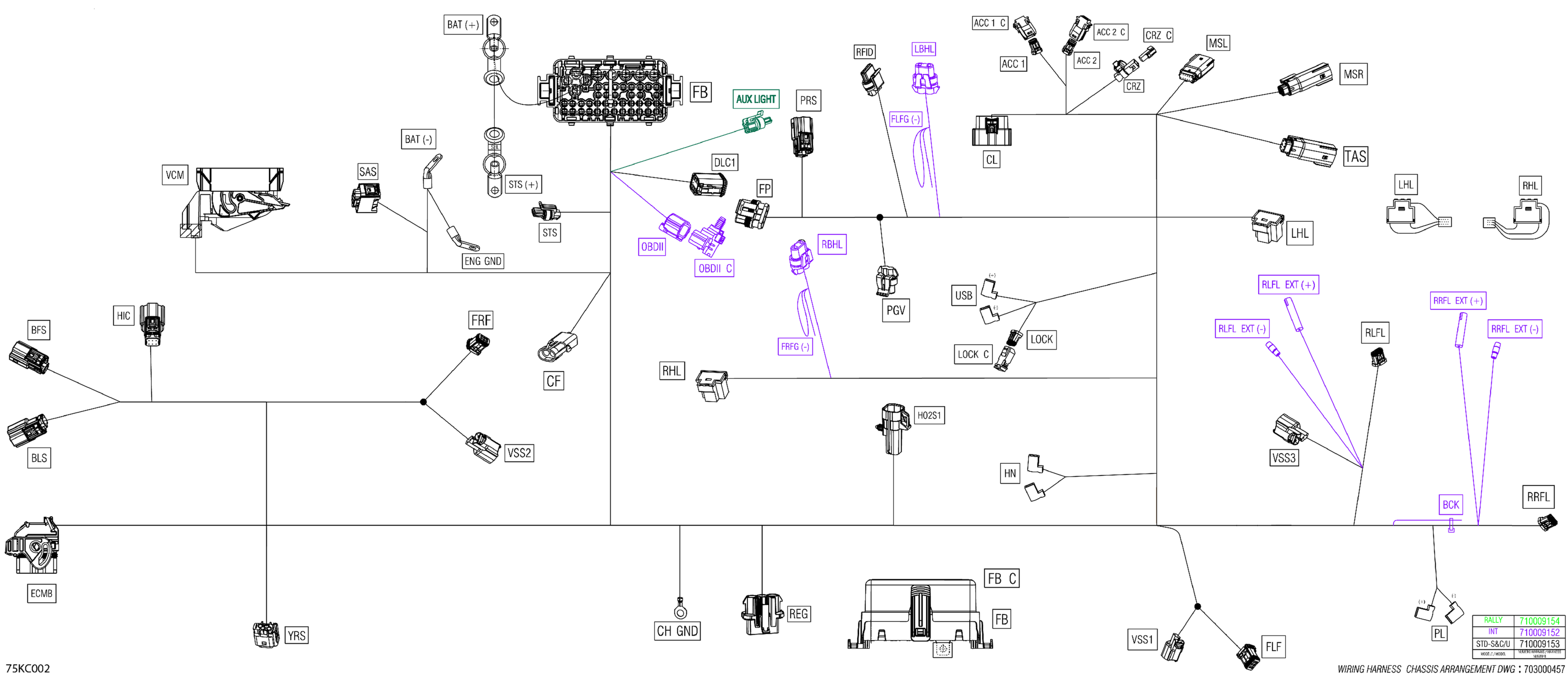

Can-Am RYKER 600 ACE, International, 2023 Electric - Main Harness - 710009152 Diagram

#

Description
Price

4000

Chassis Wiring Harness

710009592

$619.99

ACC 1

Housing JAE 2 Circuits

278002856

$14.29

ACC 1

Female Terminal

278002857

$1.49

ACC 1 C

Housing 2 Circuits

515177488

$14.49

ACC 2

Housing JAE 2 Circuits

278002856

$14.29

ACC 2

Female Terminal

278002857

$1.49

ACC 2 C

Housing 2 Circuits

515177488

$14.49

BAT(+)

Protector Cap

710000393

$9.79

BFS

Connector 2 Pins with CPA

710005827

$24.49

BFS

Female Terminal

515178018

$1.49

BLS

Female Housing, 4 circuits

278003535

$26.99

BLS

Female Terminal

515178572

$2.29

BLS

Female Terminal

515178573

$2.29

CF

Female Housing, 2 Circuits

278000217

$9.79

CF

Wire Seal

278001065

$7.89

CF

Male Terminal | XT Models

278000222

$3.29

CH GND

Open Barrel

278000992

$2.29

CL

Female Housing 20 Circuits

278002858

$23.49

CL

Sealing Cap

278002860

$1.79

CL

Female Terminal

515178018

$1.49

CRZ

Housing

515177178

$15.49

CRZ

Housing

710001853

$15.99

CRZ C

Housing

515177179

$13.99

DLC1

Female Housing 6 Circuits

710002706

$21.99

DLC1

Lock

710002705

$4.49

DLC1

Female Terminal

710005438

$4.39

DLC1

Female Terminal

710005439

$4.49

ECMB

Cover, 48 positions

710001591

$12.49

ECMB

Female Terminal Housing, 48 Circuits

710001588

$49.99

ECMB

Plug

710001592

$2.29

ECMB

Plug

710001593

$2.29

ECMB

Female Terminal

710001589

$2.29

ECMB

Female Terminal

710001590

$2.19

ECMB

Female Terminal

710001727

$3.29

ECMB

Terminal

710001728

$6.79

ENG GND

Ring Terminal M6 x 45° Wire # 8

710006288

$5.82

F1

Little Fuse, 7.5 Amperes

710000743

$8.69

F2

Little Fuse, 20 Amperes

710000746

$8.69

F3

Little Fuse, 7.5 Amperes

710000743

$8.69

F4

Little Fuse, 15 Ampere

710000745

$8.69

F5

Little Fuse, 20 Amperes

710000746

$8.69

F7

Little Fuse, 10 Amperes

710000744

$8.99

F8

Little Fuse, 15 Ampere

710000745

$8.69

FB

Fusebox Ass'y

710005623

$49.49

FB

Seal Plug

278002880

$7.99

FB

Cap

710001631

$1.49

FB

Wire Seal

278001065

$7.89

FB

Wire Seal

278000218

$4.49

FB

Seal Joint

710003134

$1.49

FB

Terminal Joint

710001905

$2.09

FB

Seal Joint

710007566

$4.65

FB

Female Terminal

710000918

$7.89

FB

Female Terminal

278002578

$1.49

FB

Terminal

710001630

$2.09

FB

Terminal

710001906

$2.54

FB

M Terminal

710003135

$2.79

FB C

Fuse Box Cover Ass'y

710008071

$30.49

FB C

Little Fuse, 5 Amperes

710000742

$8.99

FB C

Little Fuse, 7.5 Amperes

710000743

$8.69

FB C

Little Fuse, 10 Amperes

710000744

$8.99

FB C

Little Fuse, 15 Ampere

710000745

$8.69

FB C

Little Fuse, 20 Amperes

710000746

$8.69

FLF

Female Housing, 3 Circuits

515178538

$16.99

FLF

Female Terminal

278002857

$1.49

FP

Female Housing, 4 Circuits

409209700

$16.49

FP

Wire Seal

278001013

$3.39

FP

Wire Seal

515176621

$7.69

FP

Female Terminal

278001014

$3.39

FP

Female Terminal

710001340

$5.99

FRF

Female Housing, 3 Circuits

515178538

$16.99

FRF

Female Terminal

278002857

$1.49

HIC

Housing 6 Circuits

278002894

$13.99

HIC

Sealing Cap

278002860

$1.79

HIC

Female Terminal

515178014

$2.49

HIC

Female Terminal

515178018

$1.49

HN

Female Terminal

409010300

$4.49

HO2S1

Housing

710002466

$3.29

HO2S1

Connector Holder

710002033

$3.49

HO2S1

Seal

278001482

$3.29

HO2S1

Gold Terminal

710002597

$3.29

J1

Fuse, 40 AMP

710001047

$11.80

J2

Fuse, 25 AMP

710001046

$3.91

J4

Fuse 30 amp.

710001200

$7.20

J5

Fuse, 50 AMP

710001048

$5.08

LBHL

Housing

710002278

$7.39

LBHL

Lock

710007352

$8.15

LBHL

Wire Seal

710001427

$2.09

LBHL

Female Terminal

710000918

$7.89

LHL

Female Housing

710004010

$6.79

LHL

Terminal

515177217

$16.49

LOCK

Female Housing

515177441

$17.49

LOCK

Female Terminal

278002857

$1.49

LOCK C

Male Housing, 4 Circuits

515177442

$13.49

MSL

Block 12

515178578

$13.49

MSL

Sealing Cap

278002860

$1.79

MSL

Male Terminal

515178013

$3.29

MSR

Male Housing Connector 4 Pins

515178347

$14.49

MSR

Male Terminal

515178013

$3.29

OBDII

JST Housing

710006984

$13.16

OBDII

JST Plug

710007131

$13.22

OBDII

JST Connector Seal

710007130

$13.77

OBDII

Female JST Terminal

515178834

$13.22

OBDII C

Connector Cap

710007129

$5.45

PGV

Female Housing 2 Way

710005327

$3.59

PGV

Seal

278001482

$3.29

PGV

Female Terminal

278001481

$3.59

PL

Female Terminal

409010300

$4.49

PRS

Connector 2 Pins with CPA

710005827

$24.49

PRS

Female Terminal

515178018

$1.49

RBHL

Housing

710002278

$7.39

RBHL

Lock

710007352

$8.15

RBHL

Wire Seal

710001427

$2.09

RBHL

Female Terminal

710000918

$7.89

REG

Female Housing, 3 Circuits

710000879

$26.99

REG

Seal

710000881

$17.99

REG

Seal

278003685

$17.49

REG

Female Terminal

710000877

$9.29

RFID

Housing

710001161

$11.49

RFID

Wire Seal

710001163

$7.89

RFID

Female Terminal

710001164

$9.09

RHL

Female Housing

710004010

$6.79

RHL

Terminal

515177217

$16.49

RLFL

Female Housing

515177441

$17.49

RLFL

Female Terminal

278002857

$1.49

RLFL EX (+)

Insulated Sheath

278001007

$3.69

RLFL EX (+)

Female Terminal

710000421

$6.29

RLFL EX (-)

Insulated Sheath

278001008

$3.39

RLFL EX (-)

Female Terminal

278002261

$7.69

RRFL

Female Housing

515177441

$17.49

RRFL

Female Terminal

278002857

$1.49

RRFL EX (+)

Insulated Sheath

278001007

$3.69

RRFL EX (+)

Female Terminal

710000421

$6.29

RRFL EX (-)

Insulated Sheath

278001008

$3.39

RRFL EX (-)

Female Terminal

278002261

$7.69

RY1

Relay, 30 AMP

515176774

$21.99

RY2

Relay

715900824

$17.32

RY3

Relay

715900824

$17.32

SAS

Housing

710003731

$8.79

SAS

Plug

710001938

$2.49

SAS

Wire Seal

710001118

$1.49

SAS

Female Terminal

710003862

$2.49

STS

Female Housing, 2 Circuits

515177192

$9.29

STS

Wire Seal

710001163

$7.89

STS

Female Terminal

710001164

$9.09

STS (+)

Ring Terminal M6 x 45° Wire # 8

710006288

$5.82

STS (+)

Protector Cap

710000393

$9.79

TAS

Housing 6 Circuits

278003866

$13.99

TAS

Male Terminal

515178013

$3.29

USB

Female Terminal

409010300

$4.49

VCM

Connector Cover, 90 Degree

710005425

$2.53

VCM

Housing

710002768

$17.59

VCM

Plug

710001258

$3.29

VCM

Wire Seal

278000999

$3.29

VCM

Wire Seal

710001159

$6.35

VCM

Wire Seal

710006230

$1.49

VCM

Female Terminal

710000837

$5.49

VCM

Terminal

710002773

$2.09

VCM

Terminal

710002775

$1.49

VSS 1

Connector 2 Pins

710005669

$2.24

VSS 1

Seal

710005689

$2.09

VSS 1

Female Terminal 18-20 AWG

515178348

$2.09

VSS 2

Connector 2 Pins

710005669

$2.24

VSS 2

Seal

710005689

$2.09

VSS 2

Female Terminal 18-20 AWG

515178348

$2.09

VSS 3

Connector

710007484

$12.16

VSS 3

Seal

710005689

$2.09

VSS 3

Female Terminal 18-20 AWG

515178348

$2.09

YRS

Housing

710003730

$14.83

YRS

Wire Seal

710001118

$1.49

YRS

Female Terminal

710003862

$2.49
