Description

Price

100a

LH Upper Frame

705208901

$144.99

100b

Dart Clip

293730080

$1.15

100c

Panel Nut M6 X 1.0

250100208

$1.46

100d

LH Holder (support)

705013415

$4.19

100f

Torx Truss PT K40 x 12

250001131

$2.11

100g

Low Beam Support Ass'y

705207855

$20.99

100h

Torx Screw M6 X 20

250000722

$1.68

100j

LH Upper Front Acoustic Foam

705013944

$4.39

100k

LH Upper Rear Acoustic Foam

705013946

$19.49

100m

RH Upper Frame

705208902

$144.99

100n

Dart Clip

293730080

$1.15

100p

Panel Nut M6 X 1.0

250100208

$1.46

100q

RH Holder (support)

705013416

$4.19

100r

Torx Truss PT K40 x 12

250001131

$2.11

100s

Low Beam Support Ass'y

705207855

$20.99

100t

Torx Screw M6 X 20

250000722

$1.68

100u

RH Upper Front Acoustic Foam

705013945

$5.49

100v

RH Upper Rear Acoustic Foam

705013947

$19.49

100w

Hex. Flange Screw M6 X 20

207662054

$1.01

100x

Hex. Flange Elastic Nut M6

233261466

$2.00

100y

Tank Trim

705016524

$214.99

100z

Tuflok Plastic Rivet

293150230

$1.47

100aa

Connector Support

515179692

$2.09

100ab

Storage Compartment Front

705205819

$109.99

100ac

Neoprene Seal Joint

708200794

$15.99

100ad

Push Latch

705007380

$62.99

100af

Torx Truss PT K40 x 12

250001131

$2.11

100ag

Acoustic Foam, Storage Compartment

705013943

$4.39

100ah

Center Front Fairing

705013110

$20.99

100aj

Driver Seat

708002411

$249.99

100ak

Rear Spoiler

705013202

$19.99

100am

Torx Truss PT K40 x 12

250001131

$2.11

100an

LH Side Cap

705013413

$15.99

100ap

Torx Truss PT K40 x 12

250001131

$2.11

100aq

RH Side Cap

705013414

$15.99

100ar

Torx Truss PT K40 x 12

250001131

$2.11

100as

Large Shoulder Nut M6

705014119

$6.14

100at

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

100au

Torx Truss Screw M6 X 25

250000807

$2.11

100av

Stainless Steel Flat Washer

234062670

$2.11

100aw

Torx Truss Screw M6 X 16

250000721

$1.69

100ax

Deep Black, Front Cover | Includes 100at to 100at2

705015113

$80.99

100ax2

Decal Aesthetic Notice

704907056

Unavailable

100ay

Fuel Door Filler Ass'y | Includes 100au to 100au3

705017593

$51.99

100ay2

Fuel Door Filler

705017575

$51.99

100ay3

Torx-Truss Screw K40 X 10

250001034

$0.98

100az

Upper Fairing

705017574

$38.99

710

Tuflok Plastic Rivet

293150230

$1.47

720

Torx-Truss Screw K40 X 10

250001034

$0.98

740

Pivot

705013475

$1.49

750

Torx Truss PT K40 x 12

250001131

$2.11

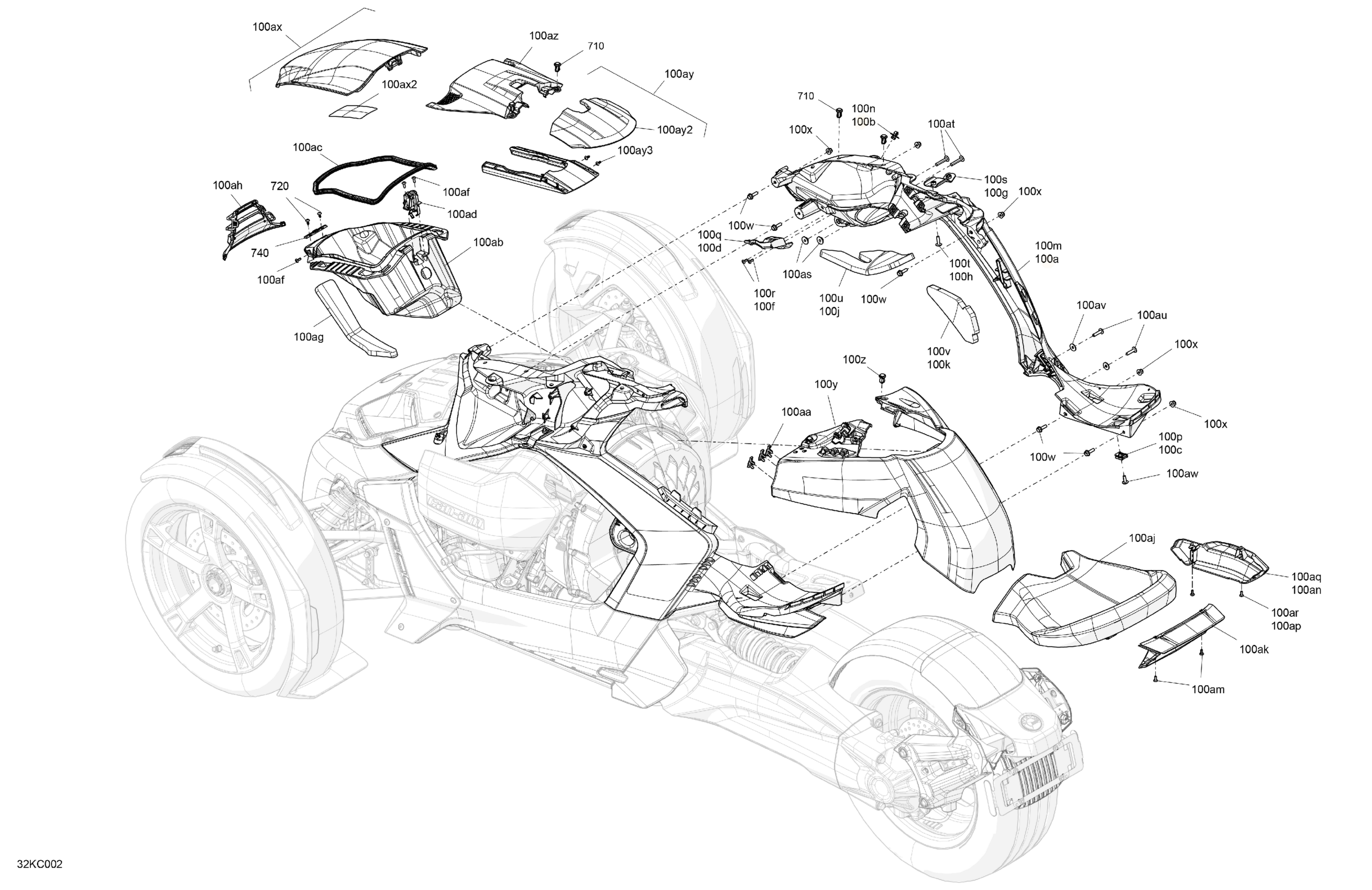

Can-Am RYKER 600 ACE, International, 2023 Body - Upper Section Diagram

LH Upper Frame

Dart Clip

Panel Nut M6 X 1.0

LH Holder (support)

Torx Truss PT K40 x 12

Low Beam Support Ass'y

Torx Screw M6 X 20

LH Upper Front Acoustic Foam

LH Upper Rear Acoustic Foam

RH Upper Frame

Dart Clip

Panel Nut M6 X 1.0

RH Holder (support)

Torx Truss PT K40 x 12

Low Beam Support Ass'y

Torx Screw M6 X 20

RH Upper Front Acoustic Foam

RH Upper Rear Acoustic Foam

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6

Tank Trim

Tuflok Plastic Rivet

Connector Support

Storage Compartment Front

Neoprene Seal Joint

Push Latch

Torx Truss PT K40 x 12

Acoustic Foam, Storage Compartment

Center Front Fairing

Driver Seat

Rear Spoiler

Torx Truss PT K40 x 12

LH Side Cap

Torx Truss PT K40 x 12

RH Side Cap

Torx Truss PT K40 x 12

Large Shoulder Nut M6

Torx Truss Hex. Screw M6X35, Nylon Patch

Torx Truss Screw M6 X 25

Stainless Steel Flat Washer

Torx Truss Screw M6 X 16

Deep Black, Front Cover | Includes 100at to 100at2

Decal Aesthetic Notice

Fuel Door Filler Ass'y | Includes 100au to 100au3

Fuel Door Filler

Torx-Truss Screw K40 X 10

Upper Fairing

Tuflok Plastic Rivet

Torx-Truss Screw K40 X 10

Pivot

Torx Truss PT K40 x 12
