Description

Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001421

$410.00

10b

Fuel Pump Module Nut

709000328

Unavailable

20

Seal

709000208

Unavailable

30

Fuel Pump Module 2021-2026 | Includes 400c to 400c1

709001261

$341.00

30a

Prefilter Fuel Pump Kit 125mm Long | Not shown

715900677

Unavailable

40

Polyurethane Hose 1000Mm Long

219704391

Unavailable

50

Hose

709001138

$46.00

60

Crimp Clamp, 15.3-706R

293650047

Unavailable

80

Hose Fuel Vapor

709001053

$34.00

80a

Vapor Canister

709001217

Unavailable

80b

Hose Fuel Vapor

709000861

$34.00

80c

Bleed Selenoid Valve

709000991

Unavailable

80d

Hose Fuel Vapor Ass'y | Includes 400j4 to 400j4f

709001006

$41.00

80d1

Oetiker Clamp | Europe

293650044

Unavailable

80d2

Oetiker Gear Clamp

293650025

Unavailable

80e

Hose Fuel Vapor

709000863

$36.00

80f

Crimp Clamp, 15.3-706R

293650047

Unavailable

80g

Hose Clamp 15.5mm-17.5mm (Spring Type)

293650294

Unavailable

80h

Hose Clamp 9.8mm-11.5mm (Spring Type)

293650295

Unavailable

80i

Hose Fuel Vapor

709000959

$16.00

80j

Flow Reducer

709000705

$6.00

100

Hose Holder

709001051

$3.00

110

Anchorage Support

709001275

$15.00

120

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

130

Rubber Pad

709001087

$14.00

170

Tank Protector

709001115

$4.00

310

Trim

709001202

$15.00

315

Upper Latch Kit | Includes 400t to 400t2

219401147

$85.00

315b

Padlock with Key

707000666

Unavailable

320

Deflector

709001263

$16.00

330

Socket Head Screw M5 X 10

205951046

$2.38

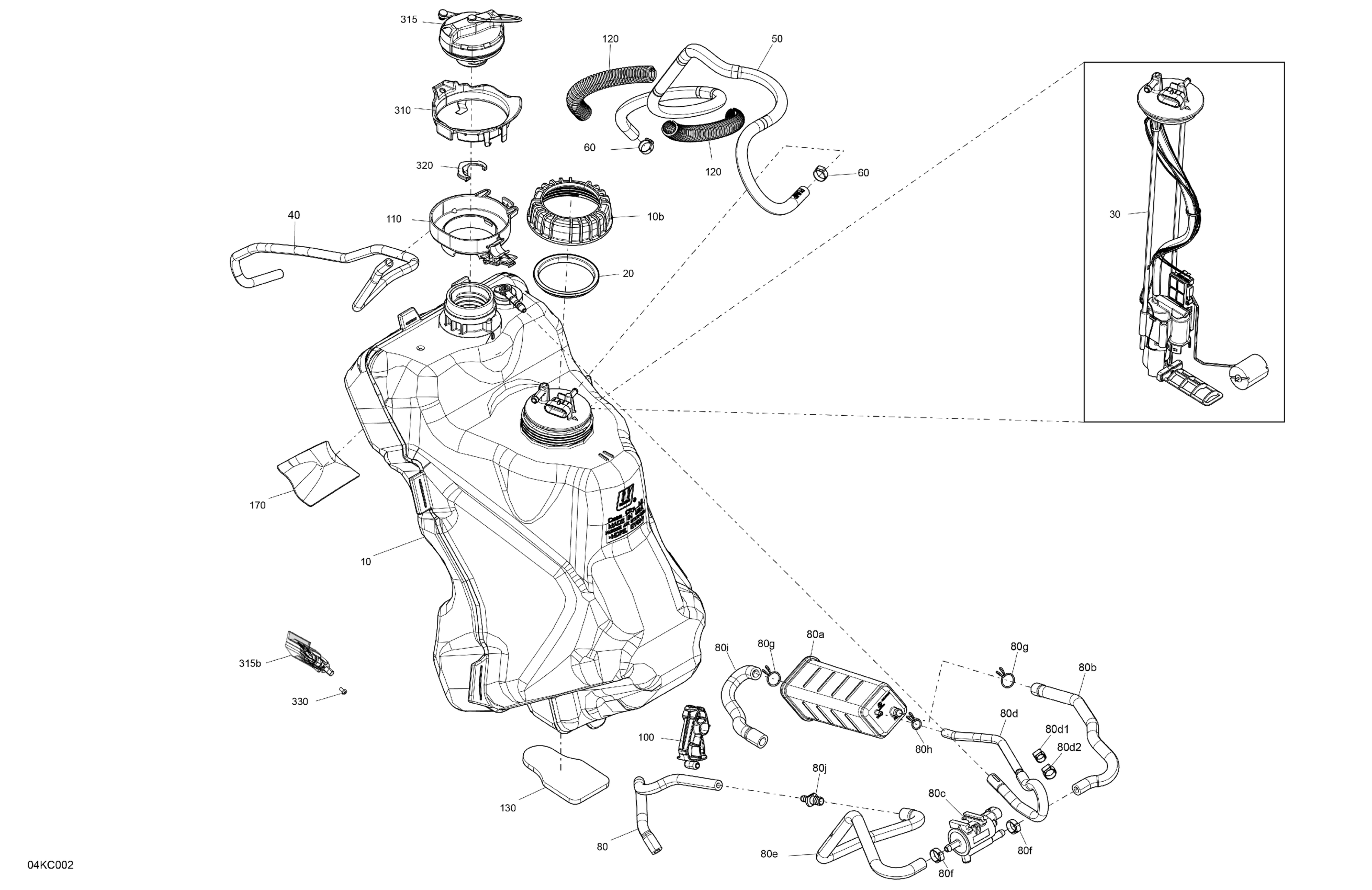

Can-Am RYKER 600 ACE, International, 2023 Engine - Fuel Diagram

Fuel Pump Module Nut

Seal

Prefilter Fuel Pump Kit 125mm Long | Not shown

Polyurethane Hose 1000Mm Long

Crimp Clamp, 15.3-706R

Vapor Canister

Bleed Selenoid Valve

Oetiker Clamp | Europe

Oetiker Gear Clamp

Crimp Clamp, 15.3-706R

Hose Clamp 15.5mm-17.5mm (Spring Type)

Hose Clamp 9.8mm-11.5mm (Spring Type)

Tubing 16 Mm 1000Mm Long

Padlock with Key
