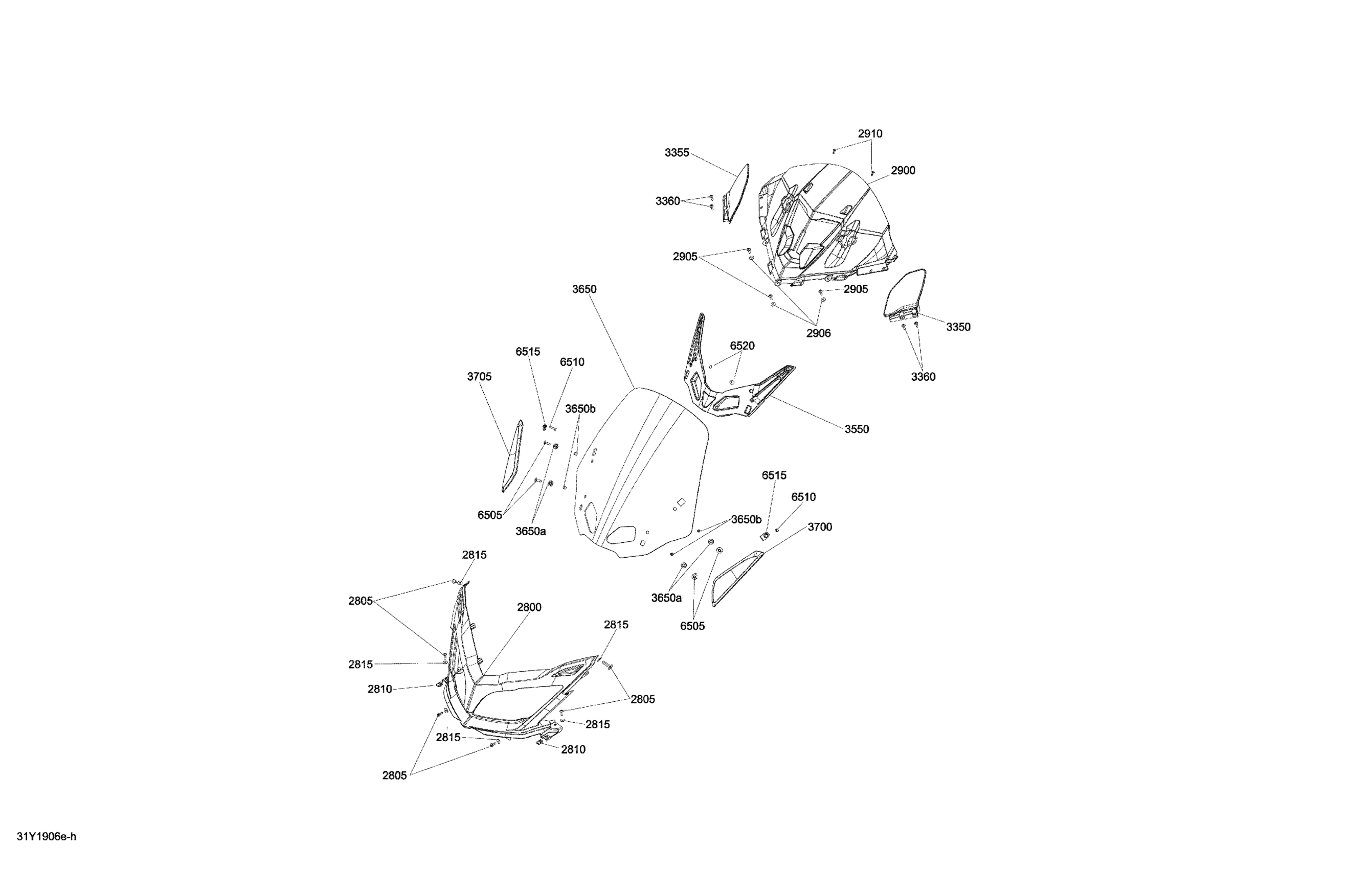

Can-Am RT LTD SE6, 2019 System Console - Upper Console & Windshield Diagram

Description

Price

2800

Front Console,Vegas White B-313 | Model-White

705009172

$260.00

2800

Oxford Blue Metallic, Front Console | Model Oxford Blue

705012000

$260.00

2800

Front Console, Phoenix Orange B-424

705013494

$260.00

2800

Asphalt Gray, Front Console | Grey Model

708400159

$260.00

2805

Torx Screw M6 X 20

250000722

$1.34

2805

Torx Screw M6 X 20

250000722

$1.34

2810

Panel Nut M6 X 1.0

250100198

$1.73

2810

Panel Nut M6 X 1.0

250100198

$1.73

2815

Flat washer M6

250200164

$0.83

2815

Flat washer M6

250200164

$0.83

2900

Upper Console

705006186

$180.00

2905

Torx Screw M6 X 20

250000722

$1.34

2906

Flat washer M6

250200164

$0.83

2910

Torx Screw M5 X 14

250000742

$1.20

3350

LH Upper Air Deflector

705002841

$46.00

3355

RH Upper Air Deflector

705002842

$46.00

3360

Torx Screw M6 X 20

250000712

$1.74

3360

Torx Screw M6 X 20

250000712

$1.74

3550

Carbon Black, Windshield Support

708400223

$215.00

3650>3650b

WINDSHIELD - Call your local BRP dealership

219400415

Unavailable

3650a

Windshield Grommet

705003756

$6.00

3650b

Sleeve

705005756

$13.00

3700

Black Deep, LH Windshield Cap

705007411

$44.00

3700

CHROME WINDSHIELD CAP KIT - Call your local BRP dealership | Model-RT LTD

219400191

Unavailable

3705

Black Deep, RH Windshield Cap

705007412

$44.00

6505

Torx Truss Screw M6 X 20

250000350

$4.39

6510

Torx Screw M5 X 25

250000455

$3.00

6515

Panel Nut M5 X 0.8

250100176

$4.00

6520

Windshield Rubber Bumper

705005666

$2.00
