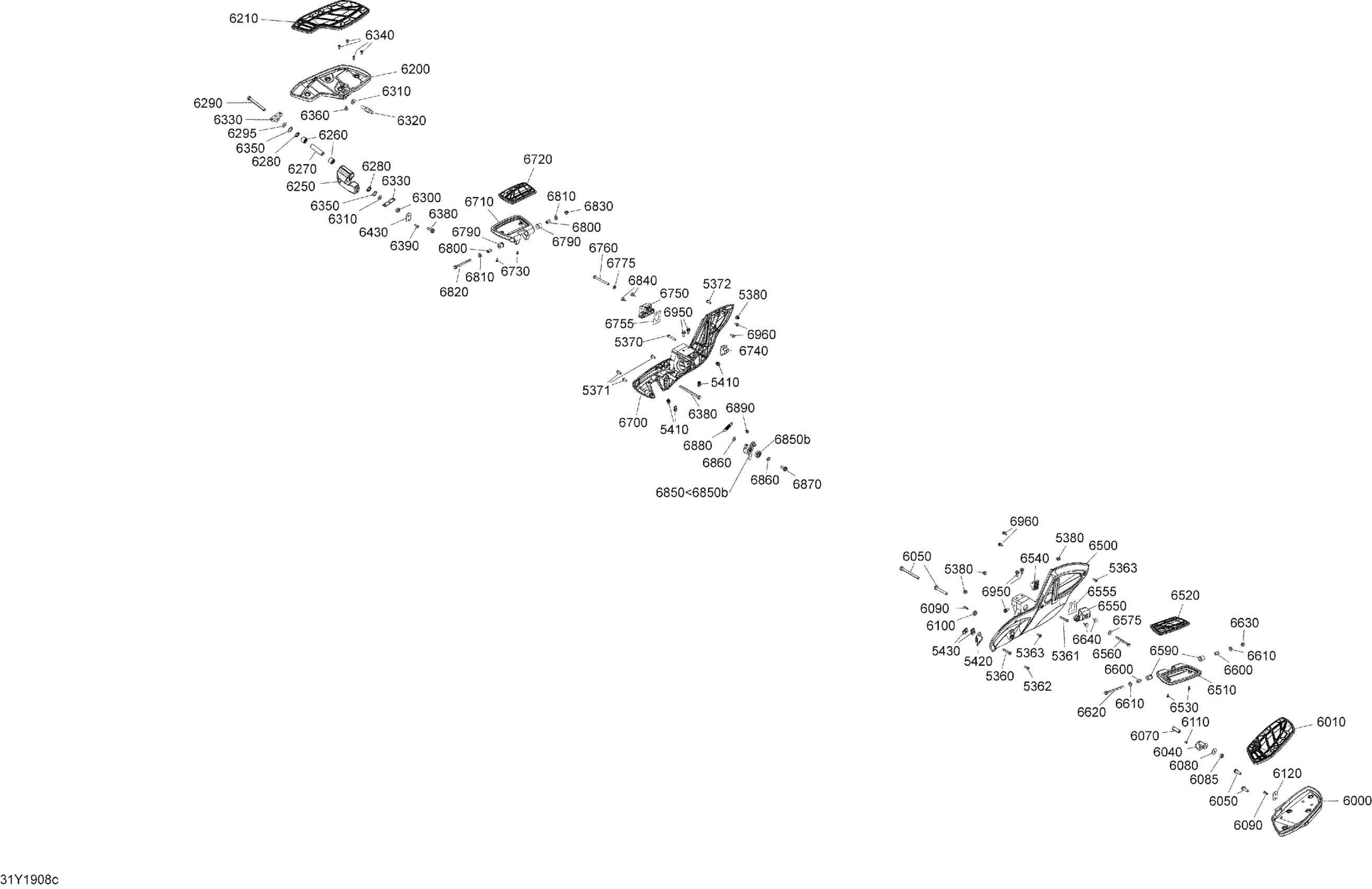

Can-Am RT LTD SE6, 2019 Body And Accessories Footrest Diagram

#

Description
Price

5360

Socket Screw M8 X 45

205484560

$2.00

5361

Socket Screw M8 X 45

205484560

$2.00

5362

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.18

5363

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.18

5370

Socket Screw M8 X 45

205484560

$2.00

5371

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.18

5371

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.18

5372

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.18

6000

CHROME LH FRONT FOOTREST - Call your local BRP dealership | Model-RT LTD SE6

705006390

Unavailable

6000

Carbon Black, LH FRT Footboard | DARK Edition

705013575

$135.00

6010

LH Front Footboard Pad | Model-RT LTD SE6

705005731

$100.00

6050

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

6080

Flat Washer 10 mm, Stainless

234002600

$1.85

6090

Torx Screw M6 X 20

250000722

$1.34

6120

Retaining Plate | Model-RT LTD SE6

705006557

$10.00

6200

RH FRONT FOOTREST - Call your local BRP dealership | Model-RT S SE6

705005726

Unavailable

6200

Chrome RH Front Footrest | Model-RT LTD SE6

705006392

$390.00

6210

RH Front Footboard Pad | Model-RT LTD SE6

705005728

$100.00

6250

Pivot Support | Model-RT LTD SE6

705005723

$94.00

6260

Bearing

706000447

$11.83

6270

Bushing

706000731

$14.75

6280

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

6290

Hexagonal Screw M12 X 105

230020586

$7.28

6295

Hardened Washer

706200281

$2.34

6300

Elastic Stop Nut M12

232521416

$1.40

6310

Flat Washer

234021430

$2.06

6320

Latch Pin M12 X 30 | Model-RT LTD SE6

705006428

$28.00

6330

Pivot Bracket | Model-RT LTD SE6

705005861

$21.00

6340

Torx Head Screw M6 X 16

250000717

$1.74

6350

Plastic Washer 20MM | Model-RT LTD SE6

250200136

$8.00

6360

Rubber Stopper

708000759

$3.61

6380

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

6390

Torx Screw M6 X 20

250000722

$1.34

6430

Retaining Plate | Model-RT LTD SE6

705006557

$10.00

6500

Black LH Footrest Support | Model-RT S SE6

705005714

$410.00

6500

Chrome LH Footrest Support | Model-RT LTD SE6

705006395

$860.00

6510

Carbon Black, Rear Footrests | Model-RT S

705011155

$135.00

6510

Chrome, Rear Footboard | Model-RT LTD SE6

705011154

$225.00

6520

LH Rubber Rear Pad

705007461

$50.00

6530

Allen Plastite Screw #12

250000099

$2.31

6540

Adjuster Block

705003013

$44.00

6550

Chrome Sliding Block | Model-RT LTD SE6

705008515

$155.00

6550

BLOCK_SLIDING PAINTED B-322-TX | Includes 230 to 230b

548875375

$59.00

6555

Film, Protective

705014173

$7.00

6560

Hex. Screw M8 x 90

207189060

$3.68

6575

Spring Washer M8

234281704

$2.00

6590

Rubber Bushing

705003018

$10.00

6600

Bushing

705002153

$11.06

6610

Washer

503183800

$3.20

6620

Hex. Flange Screw M8 X 110

230681034

$4.28

6630

Hex. Flange Elastic Nut M8

233281434

$1.74

6640

Rubber Stopper

708000759

$3.61

6700

Black RH Footboard Support | Model-RT S SE6

705007972

$380.00

6700

Chrome, RH Footrest Support | Model-RT LTD SE6

705013491

$820.00

6710

Carbon Black, Rear Footrests | Model-RT S

705011155

$135.00

6710

Chrome, Rear Footboard | Model-RT LTD SE6

705011154

$225.00

6720

RH Rubber Rear Pad

705007472

$49.00

6730

Allen Plastite Screw #12

250000099

$2.31

6740

Adjuster Block

705003013

$44.00

6750

Chrome Sliding Block | Model-RT LTD SE6

705008515

$155.00

6750

BLOCK_SLIDING PAINTED B-322-TX | Includes 230 to 230b

548875375

$59.00

6755

Film, Protective

705014173

$7.00

6760

Hex. Screw M8 x 90

207189060

$3.68

6775

Spring Washer M8

234281704

$2.00

6790

Rubber Bushing

705003018

$10.00

6800

Bushing

705002153

$11.06

6810

Washer

503183800

$3.20

6820

Hex. Flange Screw M8 X 110

230681034

$4.28

6830

Hex. Flange Elastic Nut M8

233281434

$1.74

6840

Rubber Stopper

708000759

$3.61

6850<6850b

Latch Ass'y | Model-RT LTD SE6

705006014

$240.00

6850b

Bearing

705600458

$7.03

6860

Washer

503183800

$3.20

6870

Hex. Flange Screw M10 X 25

207502546

$1.74

6880

Spring

705006533

$18.00

6890

Flange Screw M6 X 10, Scotch Grip

207561044

$5.89

6950

Hex Screw Washer Head M8 X 20

207582054

$2.61

6960

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56
