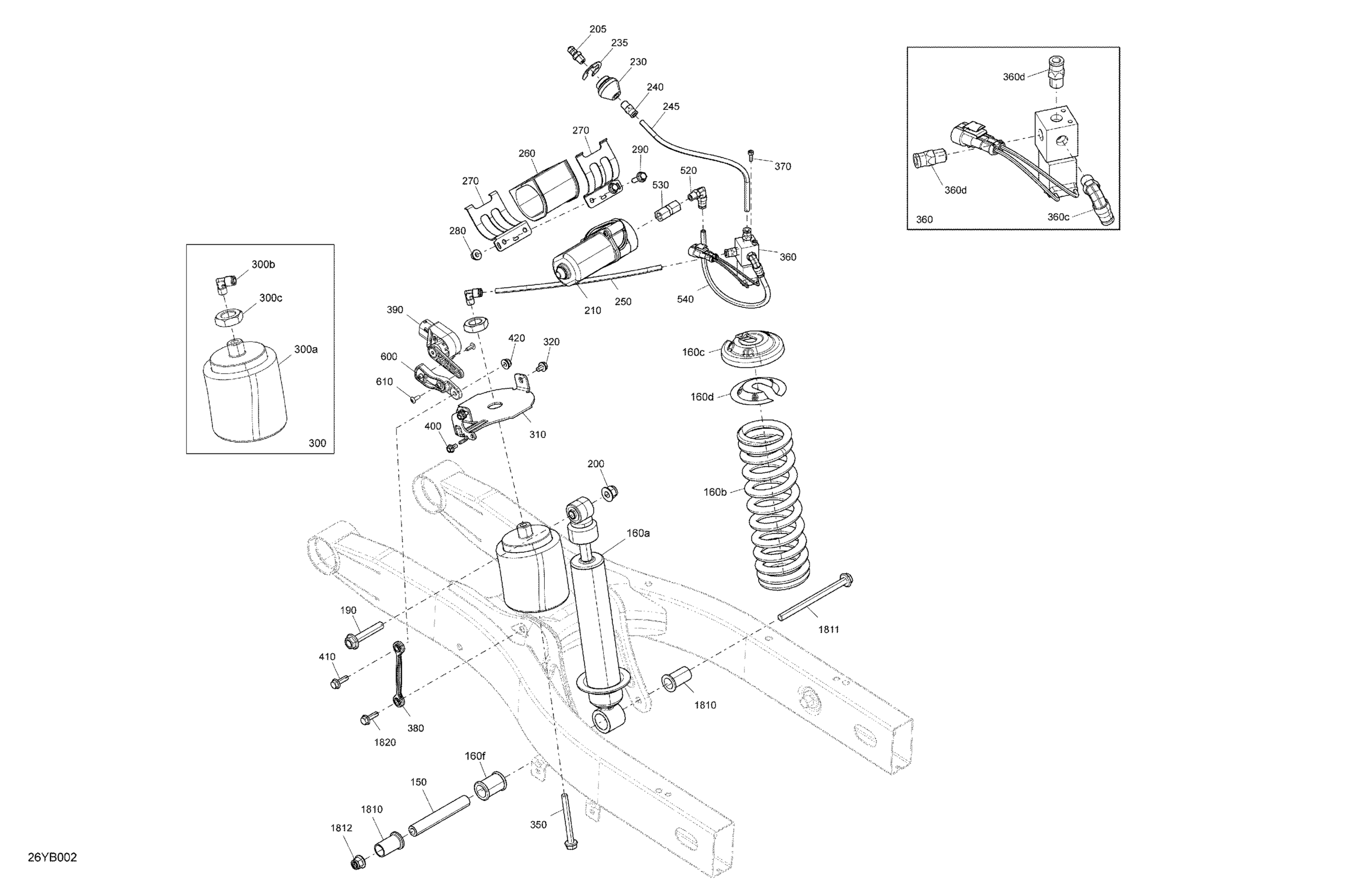

Can-Am RT LIMITED - Chrome Edition - Deep Marsala Metallic, 2022 Suspension - Rear Shock Diagram

Description

Price

150

Shock Absorber Shaft

706000409

$50.00

160a

Shock Absorber

706001552

$116.00

160b

Shock Absorber Spring

706001542

$61.00

160c

Spring Stopper

503193781

$18.00

160d

Cap

503193782

$10.00

160f

Urethane Cushion

503191609

$18.00

190

Hex. Flange Screw M10 X 55

207605554

$8.00

200

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

205

Air Valve

706002797

$15.22

210

Compressor

706001349

$436.89

230

Pneumatic Connector

706004028

$19.00

235

Circlip

293370123

$3.00

240

Connector

706000869

$33.05

245

Hose 4.32Mm 3000Mm Long

219704415

$44.17

250

Hose 4.32Mm 3000Mm Long

219704415

$44.17

260

Compressor Isolator

706000631

$13.22

270

Compressor Bracket

503193103

$4.42

280

Hex. Flange Nut M6

233061414

$1.34

290

Hex. Flange Screw M6 X 20

207662044

$1.66

300

Air Damper Kit

219800175

$291.00

300a

Not Available As Spare Part - Friction Washer

Unavailable

300b

Elbow 90°

706001018

$29.00

300c

Jam Nut M20

250100119

$4.00

310

Support Plate

706001082

$19.00

320

Hex. Forming Screw M6 X 10

210261050

$1.42

350

Hex. Flange Screw M8 X 75

207687544

$7.23

360

Air Pressure Manifold | Included 360 to 360d

706003947

$300.00

360c

Elbow 90°

706000928

$26.12

360d

Connector

706000869

$33.05

370

Torx Head Screw M4 X 12

250000915

$2.88

380

Tie Rod

706202505

$24.00

390

Suspension Sensor

710004740

$147.66

400

Hex. Flange Screw M5 X 10

207551044

$3.38

410

Hex. Flange Screw M6 X 20

207662044

$1.66

420

Hex. Flange Nut M6

233061414

$1.34

520

Elbow 90°

706000928

$26.12

530

Ckeck Valve

706000831

$39.00

540

Hose 4.32Mm 3000Mm Long

219704415

$44.17

600

Lever

706004639

$14.00

610

Torx Truss PT K40 x 12

250001131

$1.74

1810

Spacer

706000410

$14.00

1811

Hex. Flange Screw M10 X 140

230604034

$7.00

1812

Hex. Flange Elastic Nut M10

233201434

$1.63

1820

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74
