Description

Price

10

Central Skid Plate | Package-XXC

705204031

$166.12

15

Skid Plate | XXC

705007820

$18.43

20

Hex. Flange Screw M6 X 20

207662054

$0.83

25

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

26

Torx Screw M6 X 20

250000712

$1.74

27

Stainless Steel Flat Washer

234062670

$1.74

30

Flange Elastic Nut M6

233261434

$3.61

35

Hex. Flange Elastic Nut M8

233281434

$1.74

37

Hex. Flange Screw M8 X 25

207682534

$0.90

40

Bumper Support

705003505

$36.89

60

Hex. Flange Elastic Nut M8

233281434

$1.74

65

Insert Half Hex Body M6 x 1.0

250100199

$2.54

67

Torx Screw M8 X 20, Scotch Grip

250000740

$2.09

85

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

145

Oval Washer

705000321

$4.64

200

Lever Indicator

705003838

$27.66

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

230

Flat Washer

224061201

$1.11

250

Front Facia

705003948

$51.51

280

Front Bumper

705011635

$272.28

300

Dashboard

705003556

$46.12

315

Bracket

705003599

$22.28

320

Front Bent Sectional Tube

705016094

$94.58

325

Support

705002282

$32.28

330

Bent Sectional Tube

705016093

$94.58

370

Hex. Flange Screw M6 X 35

207663544

$0.74

390

Insert

293450275

$9.89

400

Torx Screw M6 X 25

250000758

$1.74

410

Fuse Holder

710002482

$6.89

415

Pop Rivet 3/16"

390402400

$0.25

420

Hex. Flange Screw M8 X 25

207682534

$0.90

430

Hex. Flange Screw M6 X 45

207664544

$1.07

450

Hex. Flange Screw M6 X 50

207665044

$3.38

460

Spacer

705005809

$11.98

480

LH Grille

705008137

$19.20

485

RH Grille

705008138

$19.20

505

Torx Screw K50 X 16

250000720

$1.39

515

Oblong Grommet

705003668

$4.54

535

Amber Reflector | Except Europe Model

705011222

$12.32

540

Flange Elastic Nut M5

233251434

$1.66

600

Front Bumper Plate

705004850

$16.89

620

Hex. Flange Screw M8 X 20

207682044

$0.92

650

Square Nut M6

232862412

$1.18

665

Torx Screw M6 X 12

250000454

$3.61

675

Torx Screw M6 X 16

250000755

$0.72

710

Cap

705002353

$14.20

720

Grommet

705003264

$3.43

740

RH Front Wheel Arch Protector

705017922

$24.58

750

LH Front Wheel Arch Protector

705017926

$24.58

770

Tuflok Plastic Rivet

293150230

$1.21

930

Torx Screw M6 X 20

250000712

$1.74

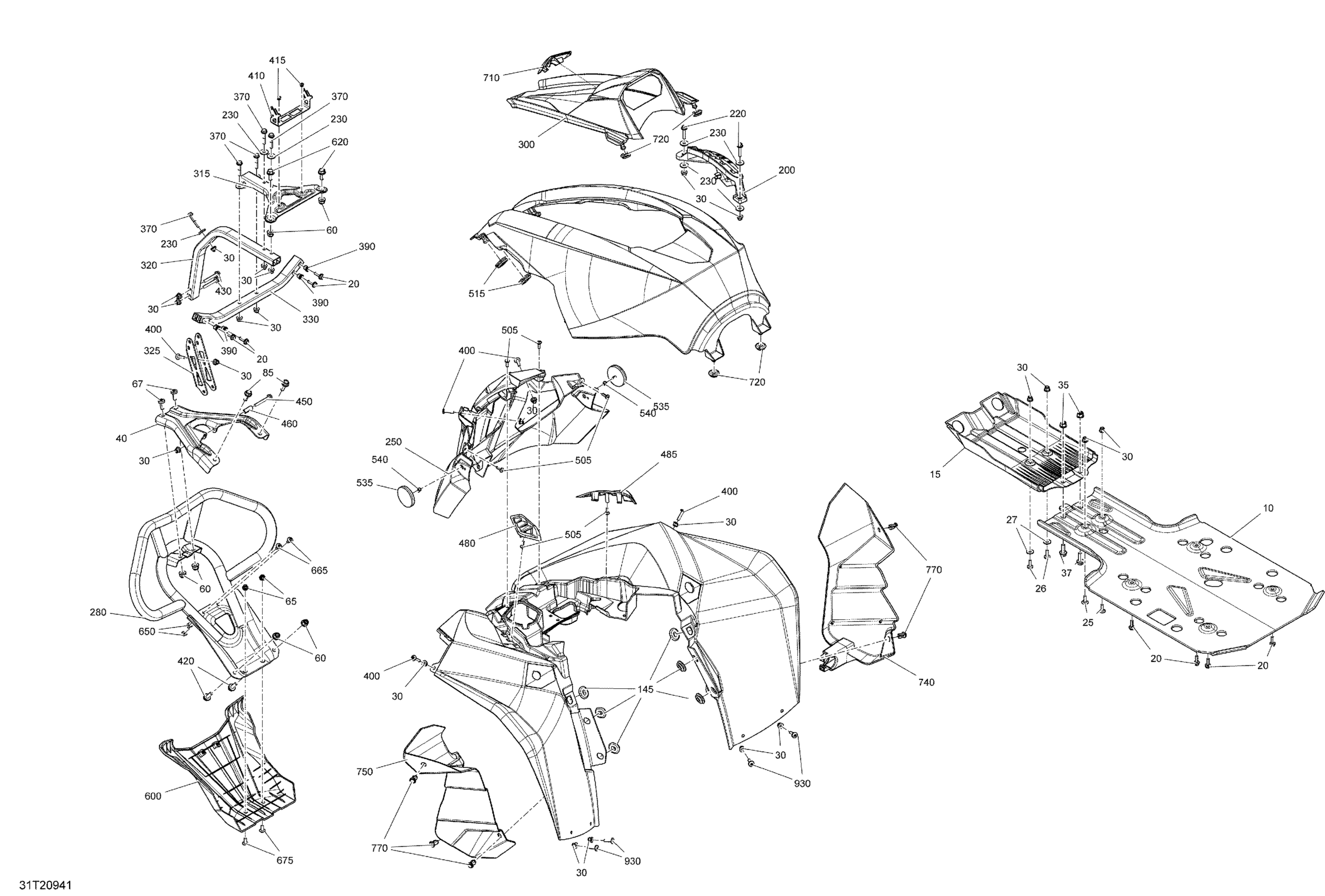

Can-Am Renegade 850 EFI - 2020 Body - Front Section - XXC Black Diagram
