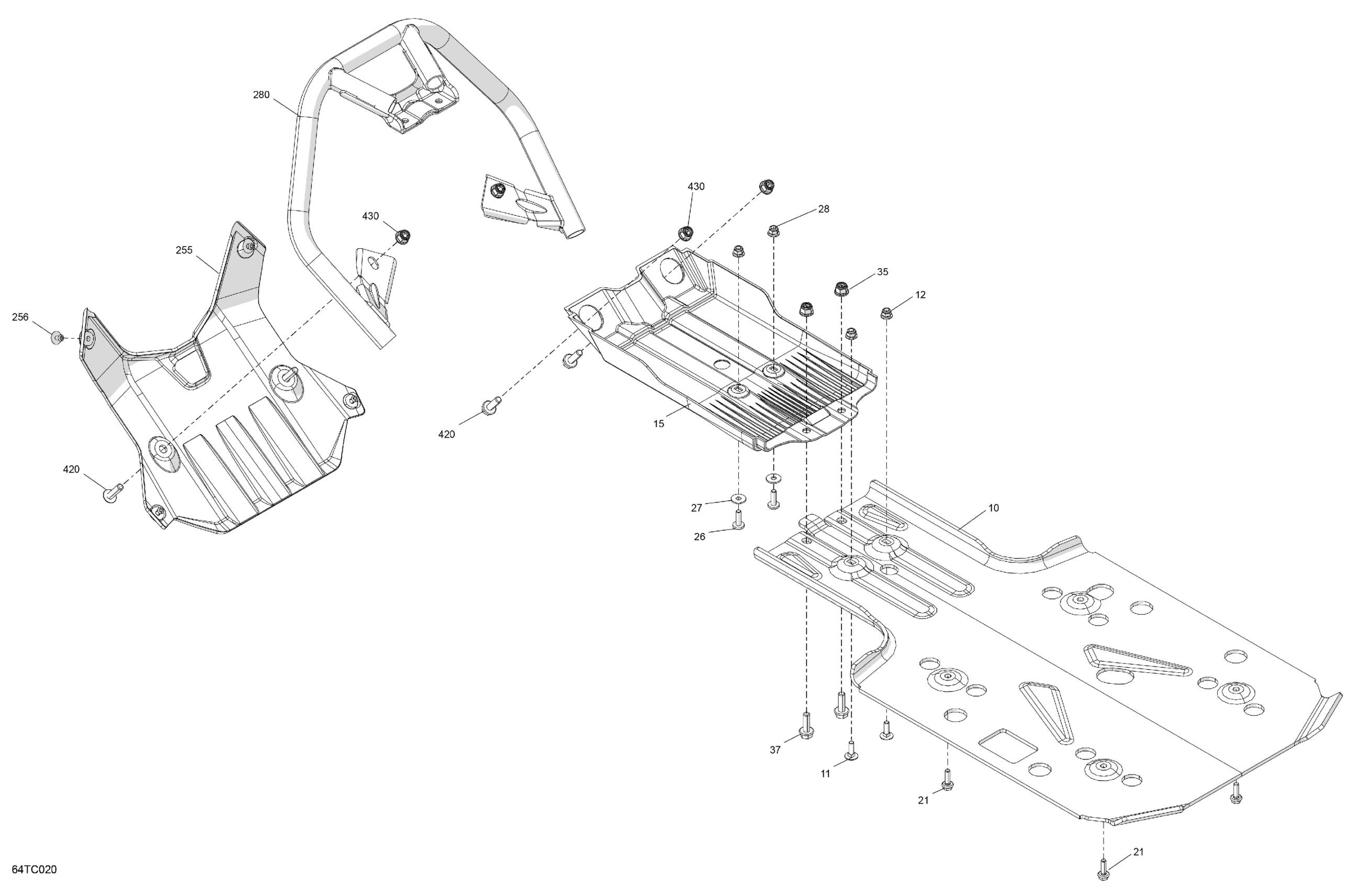

Can-Am Renegade 1000R EFI - XXC - 2023 Body - Skid Plate and Bumper Diagram

Description

Price

Central Skid Plate | Package-XXC

705204031

$166.12

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

Flange Elastic Nut M6

233261434

$3.61

Skid Plate | XXC

705007820

$18.43

Front Skid Plate | Package Hunter

705205019

$175.35

Hex. Flange Screw M6 X 20

207662054

$0.83

Torx Screw M6 X 20

250000712

$1.74

Stainless Steel Flat Washer

234062670

$1.74

Flange Elastic Nut M6

233261434

$3.61

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M8 X 25

207682544

$0.90

255

Front Facia

705009707

$111.51

255

Front Skid Plate Cut

705017072

$18.43

256

Pop Rivet 3/16"

293150103

$0.54

280

Neo Yellow, Front Bumper | Includes 280 to 280a1g

705017069

$299.97

280

Neo Yellow, Front Bumper | Includes 280 to 280a1j

705017522

$258.43

420

Torx Screw M8 X 30

250000886

$1.74

430

Hex. Flange Elastic Nut M8

233281434

$1.74
