Description

Price

10

Radiator

709200286

$461.51

20

Grommet

709000582

$4.38

30

Bushing

293900105

$6.26

40

Hex. Flange Screw M6 X 20

207662034

$1.74

50

Fan Ass'y

709200564

$226.12

72

Hex. Flange Screw M6 X 16

210261640

$1.74

80

Hex. Flange Screw M6 X 25

207662544

$0.53

90

Flat Washer

250200082

$0.35

100

Flange Elastic Nut M6

233261434

$3.61

120

Radiator Inlet Hose

709200278

$32.28

121

Thermostat Inlet Hose | Engine 850-1000R

709200785

$9.29

123

Cylinder Hose | Engine 850-1000R

709200629

$6.92

124

Cylinder Hose | Engine 850-1000R

709200630

$6.92

130

T-Fitting

509001313

$15.35

140

Outlet Hose | Engine 850-1000R

709200787

$16.12

141

Radiator Outlet Hose | Engine 850-1000R

709200786

$23.05

145

Tubing 35 MM 1000MM Long

219704428

$8.57

145a

Tubing 35 mm

515176260

Unavailable

150

Retainer

275500590

$7.18

160

Gear Clamp

509000162

$5.84

170

Norma Spring Clamp

293650166

$4.28

175

Norma Gear Clamp

293650098

$4.28

180

Norma Spring Clamp

293650166

$4.28

190

Coolant Tank

709200297

$55.35

200

Radiator Pressure Cap

709200207

$18.82

230

Retainer

275500526

$3.73

235

Hose Support

709200641

$8.45

245

Thermostat

709200406

$77.32

250

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

250a

Polyurethane Hose

293830193

Unavailable

260

Spring Clamp

414554800

$0.83

280

Grommet

709200948

$8.38

300

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

310

Panel Nut M6 X 1.0

250100198

$1.73

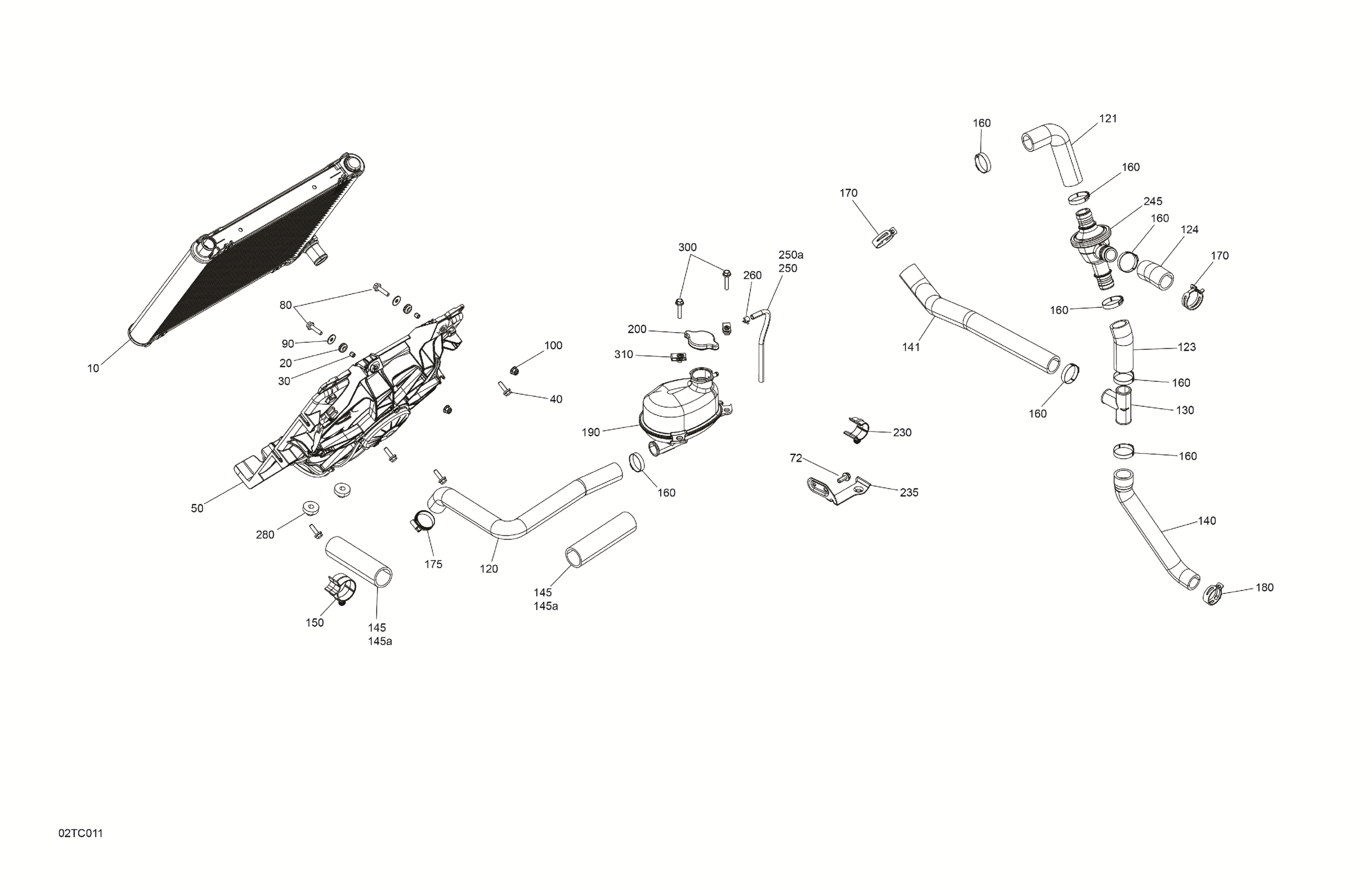

Can-Am Renegade 1000R EFI - XXC - 2023 Engine - Cooling Diagram
